| Item | Part No. | Part Name | Qty | Serial No. |

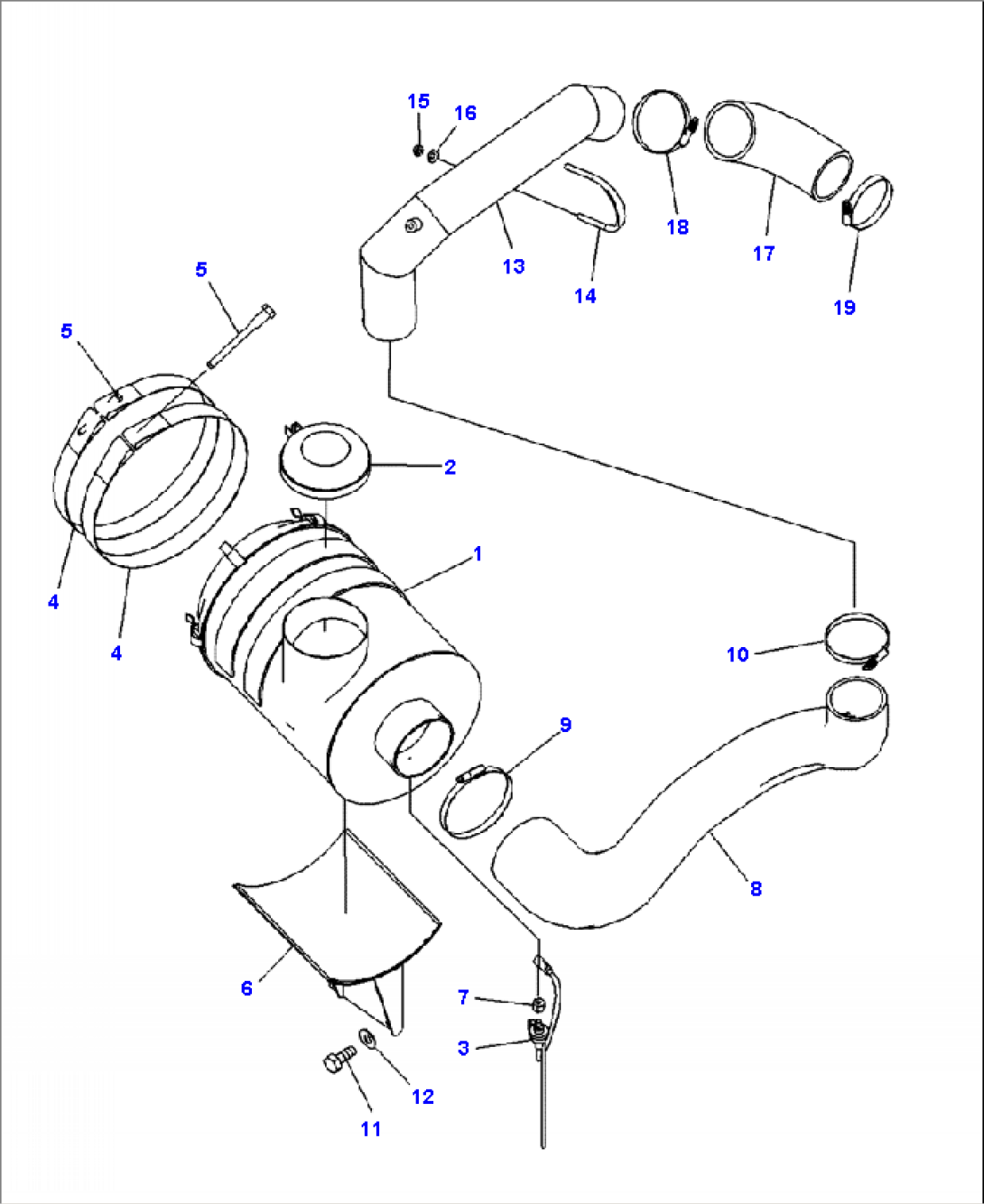

| 1 | AIR CLEANER ASSEMBLY (SEE FIG. B0200-02A0) | A86001-- | ||
| 2 | 6128-81-7420 | SCREEN | A86001-- | |
| 3 | 7861-93-1420 | SENSOR | A86001-- | |
| 4 | 6151-11-9970 | BAND | A86001-- | |
| 5 | 6643-11-4641 | BOLT | A86001-- | |
| 6 | 207-01-75160 | BRACKET | A86001-- | |
| 7 | 11Y-01-11920 | JOINT | A86001-- | |
| 8 | 207-01-75170 | HOSE | A86001-- | |
| 9 | 208-01-72180 | CLAMP | A86001-- | |
| 10 | 07299-00130 | CLAMP | A86001-- | |
| 11 | 01010-81225 | BOLT | A86001-- | |
| 12 | 01643-31232 | WASHER | A86001-- | |
| 13 | 207-01-75180 | TUBE | A86001-- | |
| 14 | 07283-31185 | CLIP | A86001-- | |
| 15 | 01597-01211 | NUT | A86001-- | |
| 16 | 01643-31232 | WASHER | A86001-- | |
| 17 | 207-01-75190 | HOSE | A86001-- | |
| 18 | 07299-00130 | CLAMP | A86001-- | |
| 19 | 07299-00120 | CLAMP | A86001-- |
