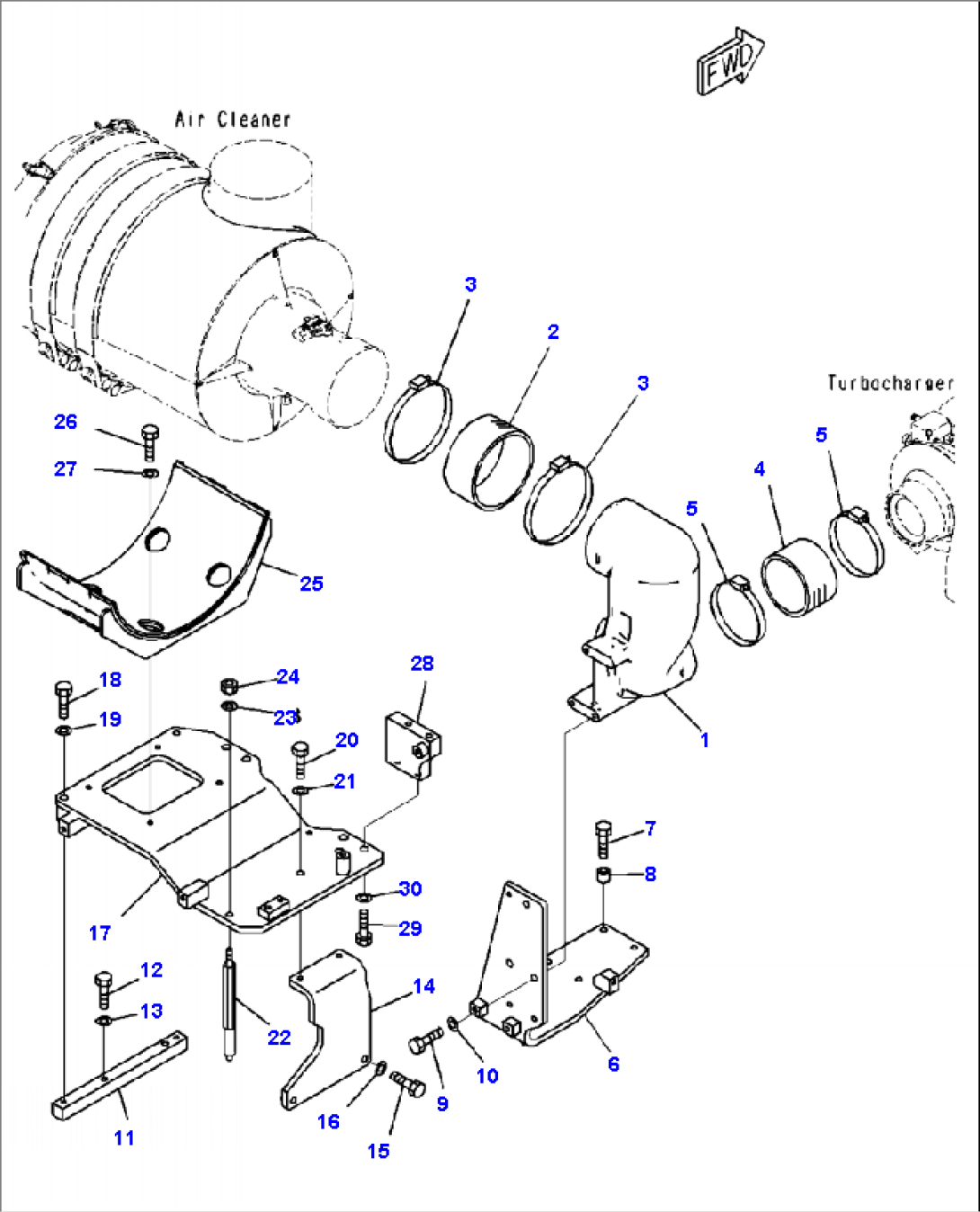

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-11-4350 | CONNECTOR | ||
| 2 | 6212-12-4460 | HOSE | ||
| 3 | 07289-00170 | CLAMP, HOSE | ||
| 4 | 6155-11-4420 | HOSE | ||
| 5 | 07289-00130 | CLAMP, HOSE | ||
| 6 | 6262-11-4610 | BRACKET | ||
| 7 | 01010-E1045 | BOLT | ||
| 8 | 6631-11-5630 | SPACER | ||
| 9 | 01010-81035 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 6262-11-4590 | BRACKET | ||
| 12 | 01010-81045 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 6262-11-4580 | BRACKET | ||
| 15 | 01010-81035 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 6262-11-4530 | BRACKET | ||
| 18 | 01010-81070 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 01010-81035 | BOLT | ||
| 21 | 01643-31032 | WASHER | ||
| 22 | 6262-11-4630 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 01580-11008 | NUT | ||
| 25 | 6262-11-4540 | BRACKET | ||
| 26 | 01010-81025 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 6262-11-5570 | BRACKET | ||
| 29 | 01010-81235 | BOLT | ||
| 30 | 01643-31232 | WASHER |
