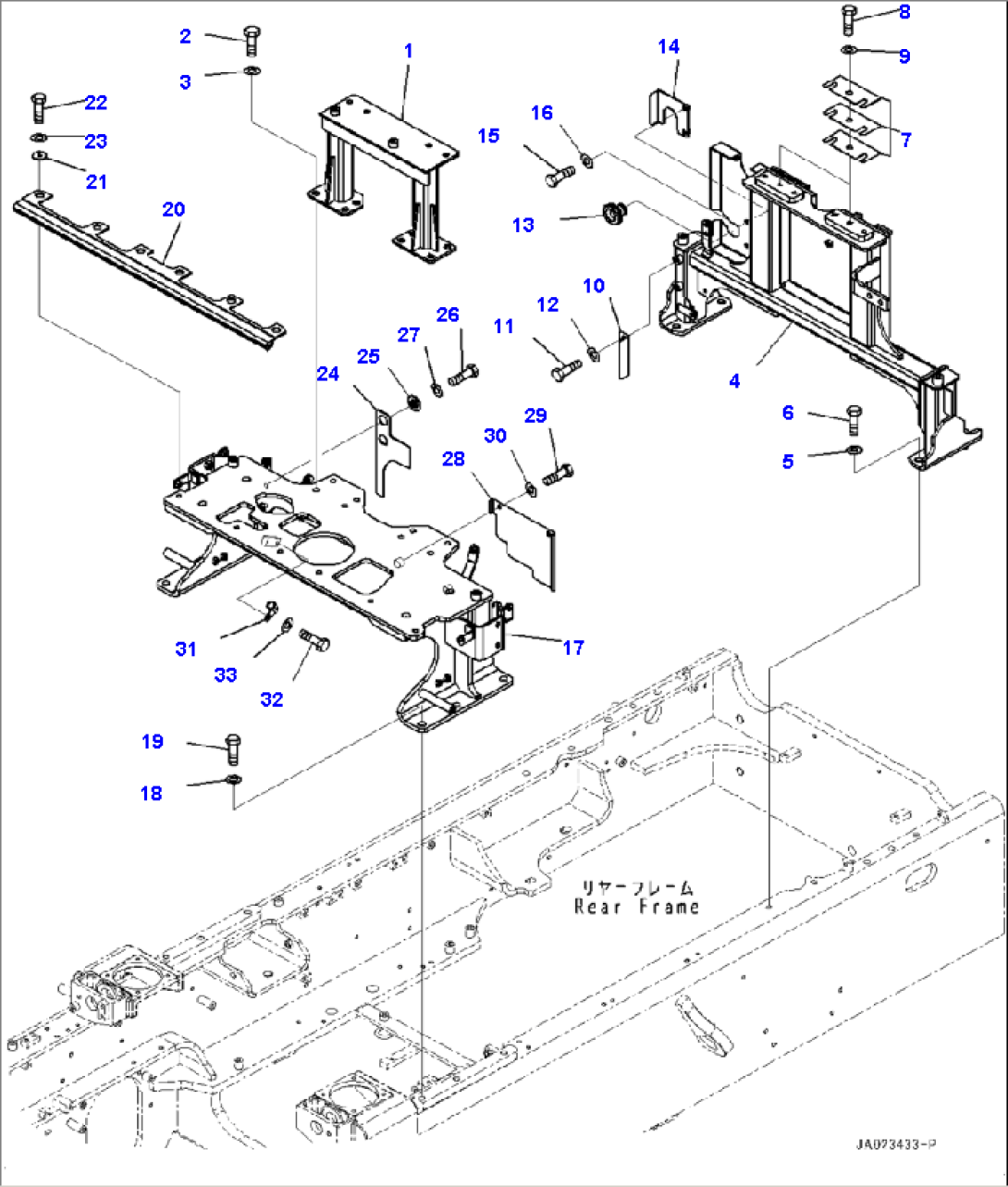

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-02-62330 | FRAME | ||
| 2 | 01010-81235 | BOLT | ||
| 3 | 01643-31232 | WASHER | ||
| 4 | 419-02-62341 | FRAME | ||
| 5 | 01643-31445 | WASHER, FLAT | ||
| 6 | 01010-81445 | BOLT | ||
| 7 | 421-54-58950 | SHIM, T=1.0 MM | ||
| 8 | 01010-81030 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 419-02-62410 | PLATE | ||
| 11 | 01010-81020 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 21X-54-39380 | GROMMET | ||
| 14 | 419-02-62440 | BRACKET | ||
| 15 | 01010-81020 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 419-60-65211 | BRACKET | ||
| 18 | 01643-31645 | WASHER | ||
| 19 | 01010-81640 | BOLT | ||
| 20 | 419-60-65411 | SHEET | ||
| 21 | 103-54-21160 | COLLAR | ||
| 22 | 01010-81035 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 419-60-65331 | SHEET | ||
| 25 | 203-54-62670 | COLLAR | ||
| 26 | 01010-81030 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 419-60-65340 | PLATE | ||
| 29 | 01010-81020 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 04434-51610 | CLIP | ||
| 32 | 01010-81020 | BOLT | ||
| 33 | 01643-31032 | WASHER |
