| Item | Part No. | Part Name | Qty | Serial No. |

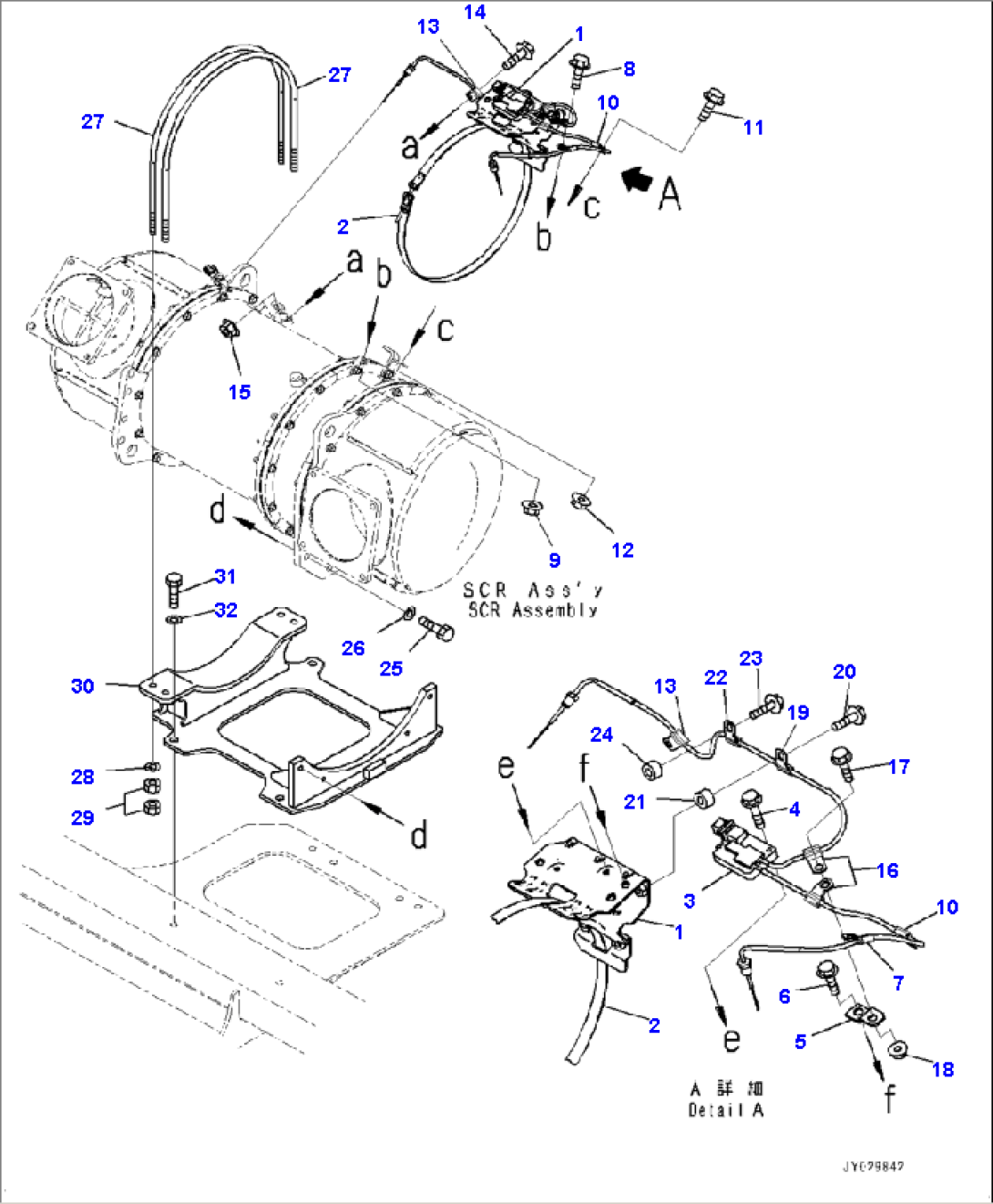

| 6547-01-0060 | SCR ASSEMBLY | |||
| 1 | 6547-81-1010 | BRACKET | ||
| 2 | 6527-91-1010 | BAND | ||
| 3 | 600-816-2410 | SENSOR, TEMPERATURE | ||
| 4 | 01435-00625 | BOLT | ||
| 5 | 6536-91-1080 | BRACKET | ||
| 6 | 01435-01016 | BOLT | ||
| 7 | 6530-91-1010 | CLIP | ||
| 8 | 01435-01020 | BOLT | ||
| 9 | 01584-01008 | NUT | ||
| 10 | 6530-91-1010 | CLIP | ||
| 11 | 01435-01020 | BOLT | ||
| 12 | 01584-01008 | NUT | ||
| 13 | 6530-91-1010 | CLIP | ||
| 14 | 01435-01020 | BOLT | ||
| 15 | 01584-01008 | NUT | ||
| 16 | 6530-91-1010 | CLIP | ||
| 17 | 01435-01020 | BOLT | ||
| 18 | 01584-01008 | NUT | ||
| 19 | 6530-91-1010 | CLIP | ||
| 20 | 01435-01030 | BOLT | ||
| 21 | 6526-91-1060 | SPACER | ||
| 22 | 6530-91-1010 | CLIP | ||
| 23 | 01435-01030 | BOLT | ||
| 24 | 6526-91-1060 | SPACER | ||
| 25 | 01010-81240 | BOLT | ||
| 26 | 01643-31232 | WASHER | ||
| 27 | 6263-11-6570 | U-BOLT | ||
| 28 | 01643-A1232 | WASHER | ||
| 29 | 01580-71210 | NUT | ||
| 30 | 425-02-52321 | BRACKET | ||
| 31 | 01010-81240 | BOLT | ||
| 32 | 01643-31232 | WASHER |
