| Item | Part No. | Part Name | Qty | Serial No. |

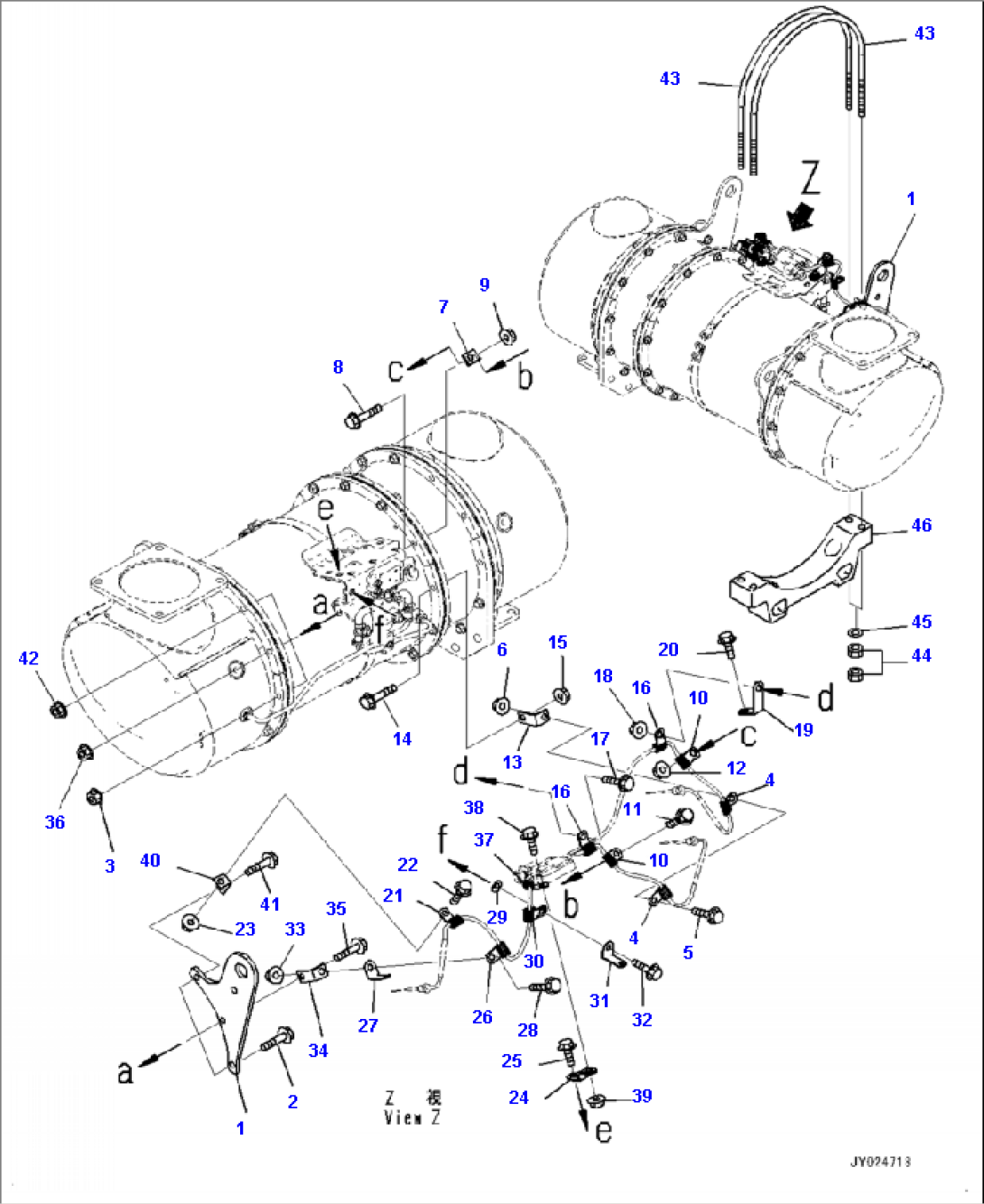

| KOMATSU DIESEL PARTICULATE FILTER (KDPF) ASSEMBLY (SEE FIG. B9999-505001 ) | ||||
| 1 | 6536-91-4070 | PLATE | ||
| 2 | 01435-01050 | BOLT | ||
| 3 | 01584-01008 | NUT | ||
| 4 | 6530-91-1010 | CLIP | ||
| 5 | 01435-01020 | BOLT | ||
| 6 | 01584-01008 | NUT | ||
| 7 | 6520-91-1010 | PLATE | ||
| 8 | 01435-01045 | BOLT | ||
| 9 | 01584-01008 | NUT | ||
| 10 | 6530-91-1010 | CLIP | ||
| 11 | 01435-01020 | BOLT | ||
| 12 | 01584-01008 | NUT | ||
| 13 | 6520-91-1010 | PLATE | ||
| 14 | 01435-01045 | BOLT | ||
| 15 | 01584-01008 | NUT | ||
| 16 | 6530-91-1010 | CLIP | ||
| 17 | 01435-01020 | BOLT | ||
| 18 | 01584-01008 | NUT | ||
| 19 | 6536-91-1060 | PLATE | ||
| 20 | 01435-01016 | BOLT | ||
| 21 | 6530-91-1010 | CLIP | ||
| 22 | 01435-01020 | BOLT | ||
| 23 | 01584-01008 | NUT | ||
| 24 | 6536-91-1070 | BRACKET | ||
| 25 | 01435-01016 | BOLT | ||
| 26 | 6530-91-1010 | CLIP | ||
| 27 | 6252-81-9630 | CLIP | ||
| 28 | 01435-01020 | BOLT | ||
| 29 | 01643-31032 | WASHER | ||
| 30 | 6530-91-1010 | CLIP | ||
| 31 | 6252-81-9630 | CLIP | ||
| 32 | 01435-01020 | BOLT | ||
| 33 | 01584-01008 | NUT | ||
| 34 | 6520-91-1010 | PLATE | ||
| 35 | 01435-01050 | BOLT | ||
| 36 | 01584-01008 | NUT | ||
| 37 | 6530-91-1010 | CLIP | ||
| 38 | 01435-01020 | BOLT | ||
| 39 | 01584-01008 | NUT | ||
| 40 | 6520-91-1010 | PLATE | ||
| 41 | 01435-01050 | BOLT | ||
| 42 | 01584-01008 | NUT | ||
| 43 | 6253-11-5050 | U-BOLT | ||
| 44 | 01580-71210 | NUT | ||
| 45 | 01643-A1232 | WASHER | ||
| 46 | 6253-11-5040 | BRACKET |
