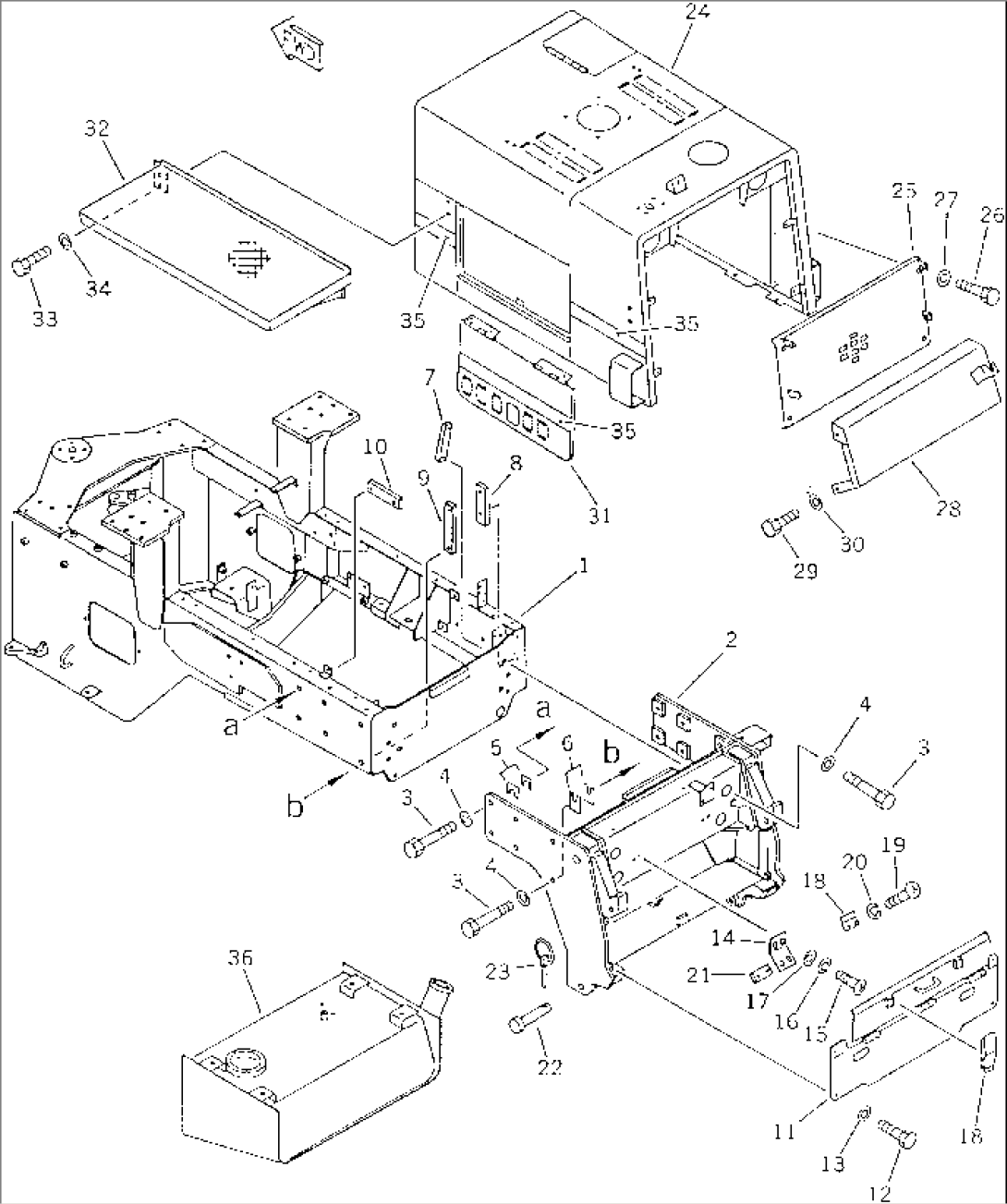

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-855-1610 | FRAME,REAR | 12001- | |
| 2 | 417-855-1411 | ADAPTER | 12001- | |
| 3 | 01010-32485 | BOLT | 12001- | |
| 4 | 01643-32460 | WASHER | 12001- | |
| 5 | 416-855-1190 | SHIM, 0.5MM | 12001- | |
| 5 | 416-855-1180 | SHIM, 3.2MM | 12001- | |
| 6 | 417-855-1440 | SHIM, 0.5MM | 12001- | |
| 6 | 417-855-1430 | SHIM, 3.2MM | 12001- | |
| 7 | 416-855-1150 | SEAT | 12001- | |
| 8 | 417-855-1420 | SEAT | 12001- | |
| 9 | 416-855-1130 | SEAT | 12001- | |
| 10 | 416-855-1140 | SEAT | 12001- | |
| 11 | 416-855-1122 | COVER | 12001- | |
| 12 | 01010-51220 | BOLT | 12001- | |
| 13 | 01643-31232 | WASHER | 12001- | |
| 14 | 416-855-1281 | PLATE | 12001- | |
| 15 | 01220-40410 | SCREW | 12001- | |
| 16 | 01601-20410 | WASHER,SPRING | 12001- | |
| 17 | 01641-20405 | WASHER | 12001- | |
| 18 | 421-09-12320 | HOLDER | 12001- | |
| 19 | 01220-40408 | SCREW | 12001- | |
| 20 | 01601-20410 | WASHER,SPRING | 12001- | |
| 21 | 416-855-1670 | SEAT | 12001- | |
| 22 | 416-855-1160 | PIN | 12001- | |
| 23 | 421-46-12740 | PIN,LINCH | 12001- | |
| 24 | 417-855-1620 | HOOD | 12001- | |
| 25 | 416-855-2910 | GRILLE | 12001- | |
| 26 | 01010-51220 | BOLT | 12001- | |
| 27 | 01643-31232 | WASHER | 12001- | |
| 28 | 416-855-2920 | COVER | 12001- | |
| 29 | 01010-51220 | BOLT | 12001- | |
| 30 | 01643-31232 | WASHER | 12001- | |
| 31 | 417-855-1630 | DOOR,L.H. | 12001- | |
| 32 | 416-855-1212 | STEP | 12001- | |
| 33 | 01010-51230 | BOLT | 12001- | |
| 34 | 01643-31232 | WASHER | 12001- | |
| 35 | 416-93-11430 | STRIPE,PLATE | 12001- | |
| 36 | 417-04-10220 | TANK,FUEL | 12001- |
