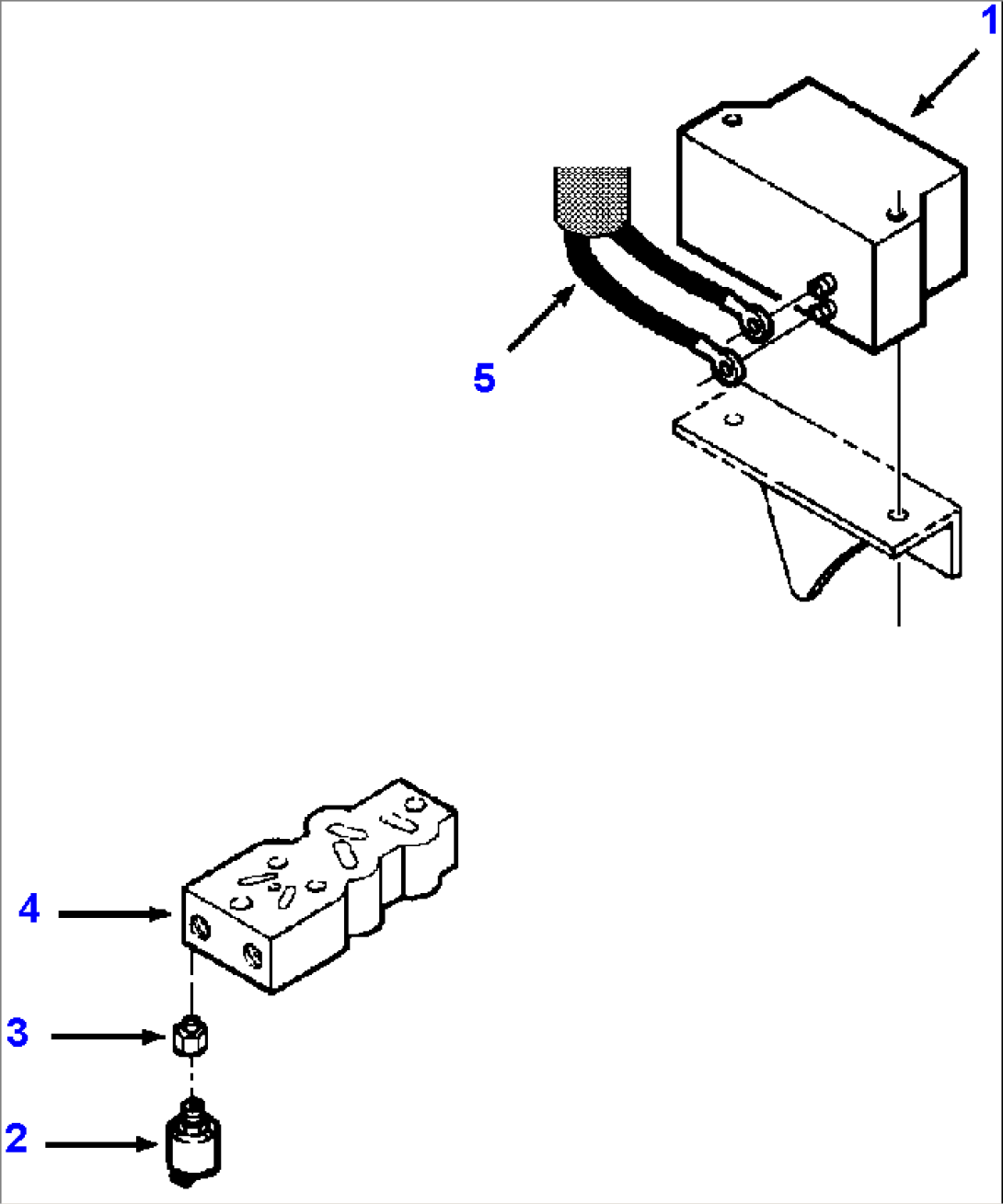

| Item | Part No. | Part Name | Qty | Serial No. |
| (1270 272 H91) | BACK UP ALARM | |||
| 1 | 737 188 C2 | ALARM, BACK UP | ||
| 1 | 736 131 C2 | ALARM, BACK UP | ||
| 28 161 R1 | BOLT, HEX - 3/8NCx4-1/4 | |||
| 25 534 R1 | WASHER, FLAT - 3/8 | |||
| 120 382 | WASHER, LOCK - 3/8 | |||
| 120 377 | NUT, HEX - 3/8NC | |||
| 2 | 740 986 C2 | SWITCH | ||
| 3 | 443 998 | ADAPTER | ||
| 4 | MANIFOLD, PILOT VALVE (SEE PG 07-042) | |||
| 5 | HARNESS, WIRING (SEE PG 08-002) | |||
| 1270 464 H1 | SEALANT, ELECTRIC - 4OZ CONTAINER | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
