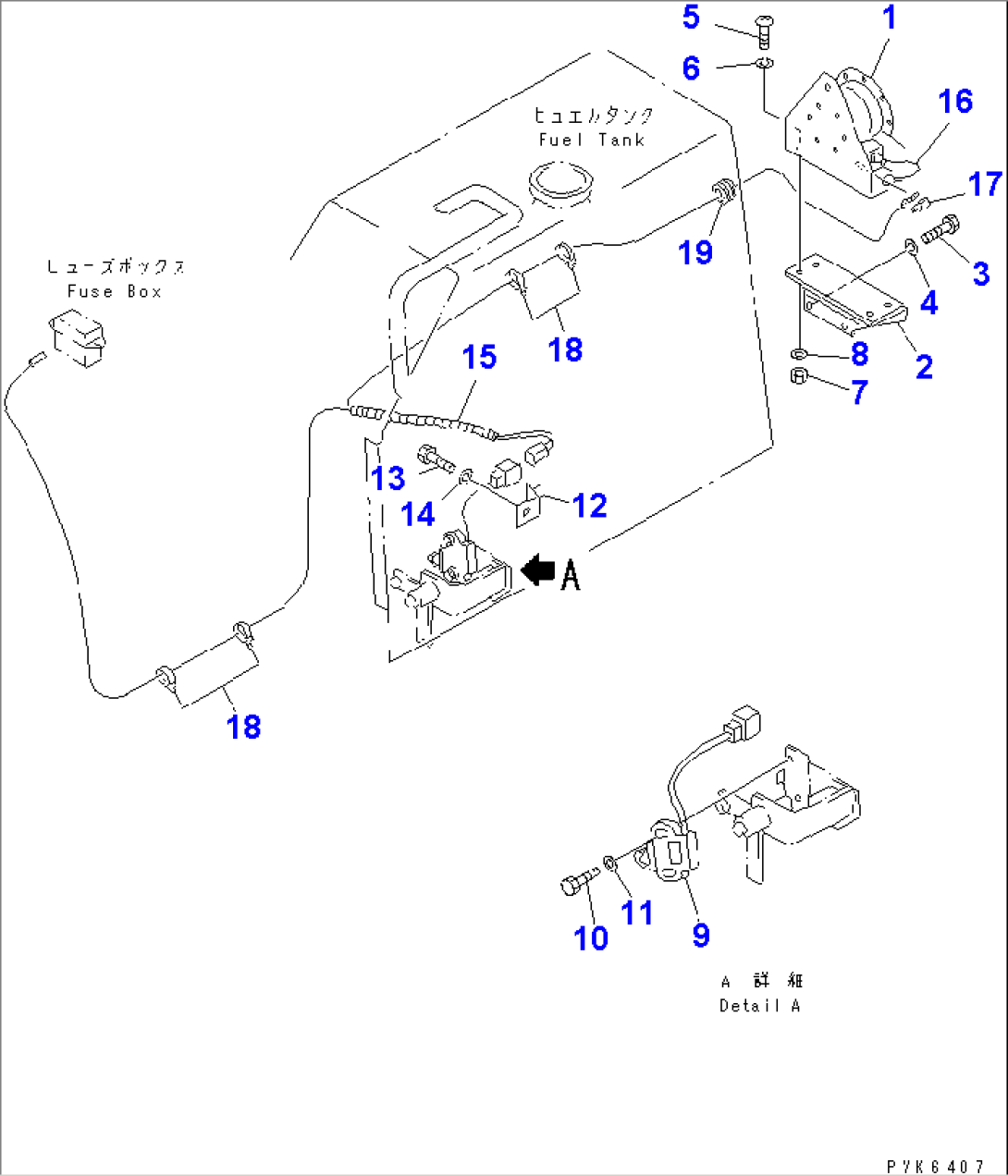

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08164-10000 | ALARM,BACK-UP | 45001-47616 | |
| 2 | 113-06-44140 | BRACKET | 45001-47616 | |
| 3 | 01010-51020 | BOLT | 45001-47616 | |
| 4 | 01602-21030 | WASHER,SPRING | 45001-47616 | |
| 5 | 01220-40620 | SCREW | 45001-47616 | |
| 6 | 01602-20619 | WASHER,SPRING | 45001-47616 | |
| 7 | 01580-10605 | NUT | 45001-47616 | |
| 8 | 01640-20610 | WASHER | 45001-47616 | |
| 9 | 08076-50350 | SWITCH,BACK-UP ALARM | 45001-47616 | |
| 10 | 01010-81035 | BOLT | 45001-47616 | |
| 11 | 01643-31032 | WASHER | 45001-47616 | |
| 12 | 08053-01510 | CLIP | 45001-47616 | |
| 13 | 01010-51020 | BOLT | 45001-47616 | |
| 14 | 01602-21030 | WASHER,SPRING | 45001-47616 | |
| 15 | 114-06-48521 | WIRING HARNESS | 45001-47616 | |
| 16 | 144-06-24630 | WIRE | 45001-47616 | |
| 17 | 08038-00519 | CAP | 45001-47616 | |
| 18 | 08034-00414 | BAND | 45001-47616 | |
| 19 | 08037-01008 | GROMMET | 45001-47616 |
