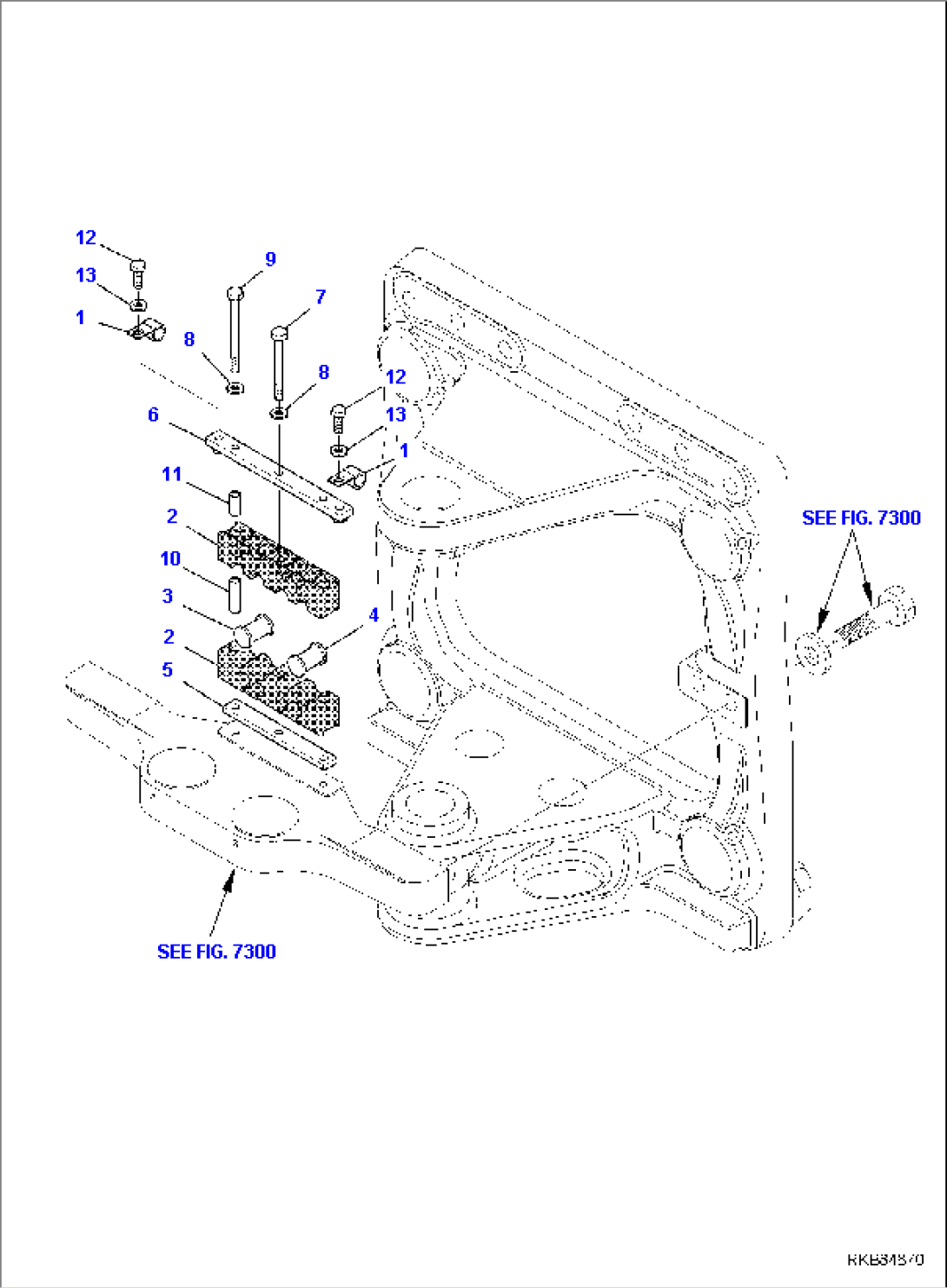

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-51710 | CLIP | F80246- | |
| 2 | 42N-62-12440 | CLAMP | F80246- | |
| 3 | 42N-62-15620 | SPACER | F80246- | |
| 4 | 42N-62-15630 | SPACER | F80246- | |
| 5 | 42N-62-14750 | PLATE | F80246- | |
| 6 | 42N-43-14151 | PLATE | F80246- | |
| 7 | 01011-81000 | BOLT | F80246- | |
| 8 | 01643-11032 | WASHER | F80246- | |
| 9 | 01011-81020 | BOLT | F80246- | |
| 10 | 42N-62-14730 | BUSHING | F80246- | |
| 11 | 42N-62-14740 | BUSHING | F80246- | |
| 12 | 01643-11032 | WASHER | F80246- | |
| 13 | 01016-51030 | BOLT | F80246- | |
| SEE FIG. 7300 |
