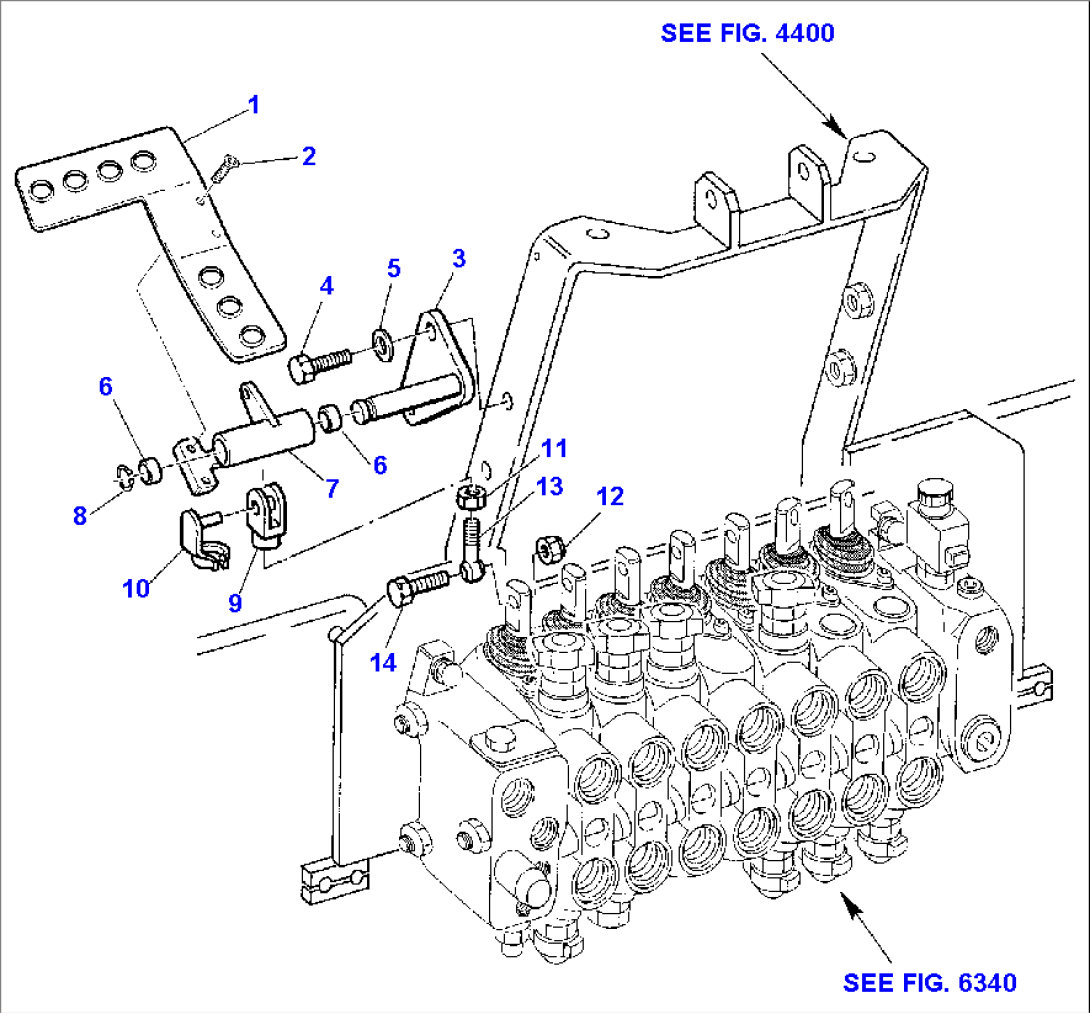

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312713621 | PEDAL | 93F21638- | |
| 2 | 801200667 | SCREW | 93F21638- | |
| 3 | 312713063 | PEDAL SUPPORT | 93F21638- | |
| 4 | 801015109 | BOLT | 93F21638- | |
| 5 | 802170002 | WASHER | 93F21638- | |
| 6 | 805630028 | BUSHING | 93F21638- | |
| 7 | 312713061 | BUSHING, PEDAL | 93F21638- | |
| 8 | 802250020 | SNAP RING | 93F21638- | |
| 9 | 802720020 | FORK | 93F21638- | |
| 10 | 802725020 | PIN | 93F21638- | |
| 11 | 801920105 | NUT | 93F21638- | |
| 12 | 801852410 | SELF-LOCKING NUT | 93F21638- | |
| 13 | 805850015 | JOINT | 93F21638- | |
| 14 | 801015556 | BOLT | 93F21638- | |
| SEE FIG. 4400 | ||||
| SEE FIG. 6340 |
