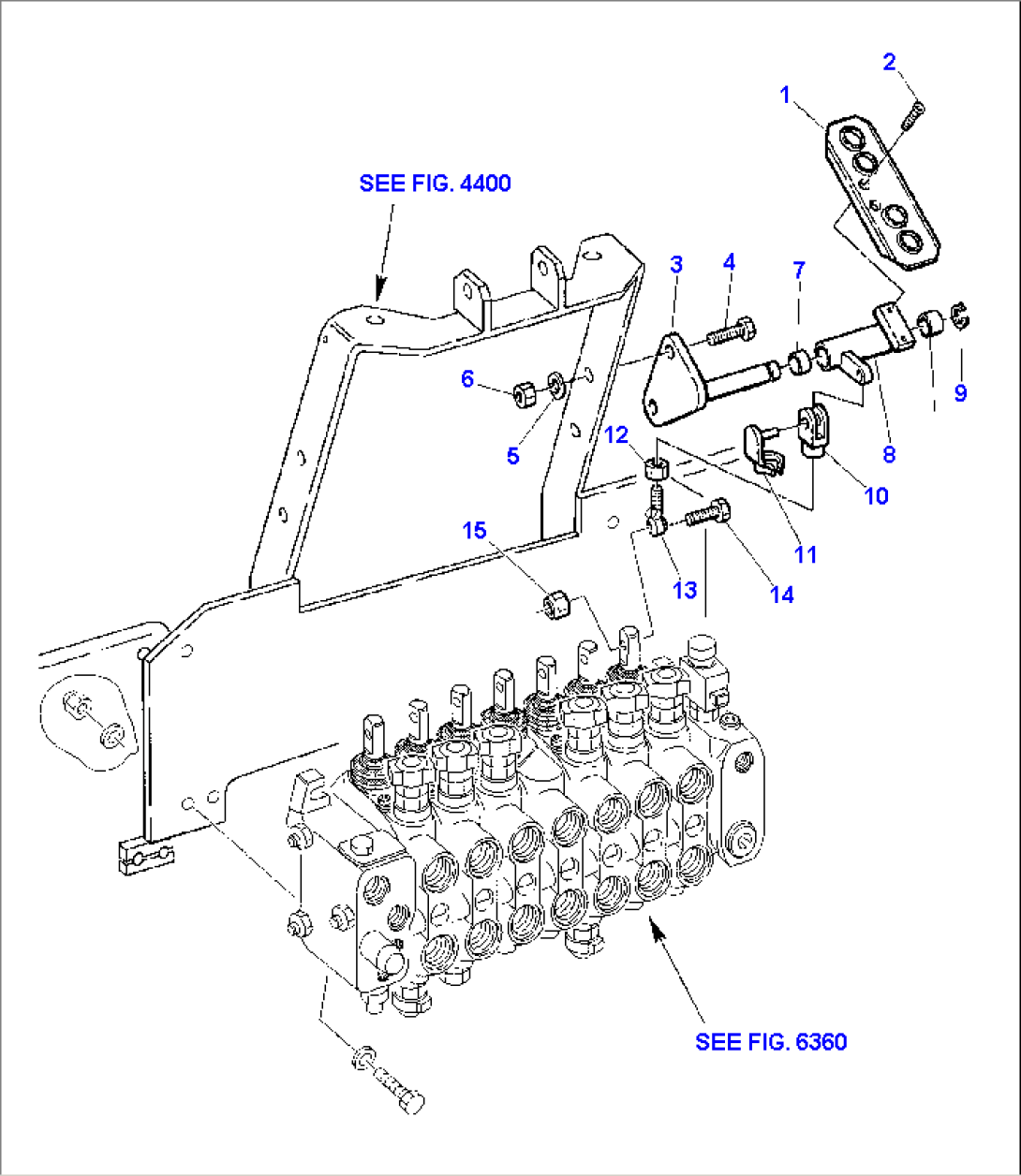

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312713608 | PEDAL | 97F20001- | |
| 2 | 801200016 | BOLT | 97F20001- | |
| 3 | 312713054 | PEDAL SUPPORT | 97F20001- | |
| 4 | 801015109 | BOLT | 97F20001- | |
| 5 | 802170002 | WASHER | 97F20001- | |
| 6 | 801920105 | NUT | 97F20001- | |
| 7 | 805630028 | BUSHING | 97F20001- | |
| 8 | 312713057 | BUSHING, PEDAL | 97F20001- | |
| 9 | 802250020 | RING SNAP | 97F20001- | |
| 10 | 802720020 | FORK | 97F20001- | |
| 11 | 802725020 | PIN | 97F20001- | |
| 12 | 801703409 | NUT | 97F20001- | |
| 13 | 805850015 | ARTICULATION | 97F20001- | |
| 14 | 801015556 | BOLT | 97F20001- | |
| 15 | 801852410 | SELF-LOCKING NUT | 97F20001- | |
| SEE FIG. 4400 | ||||
| SEE FIG. 6360 |
