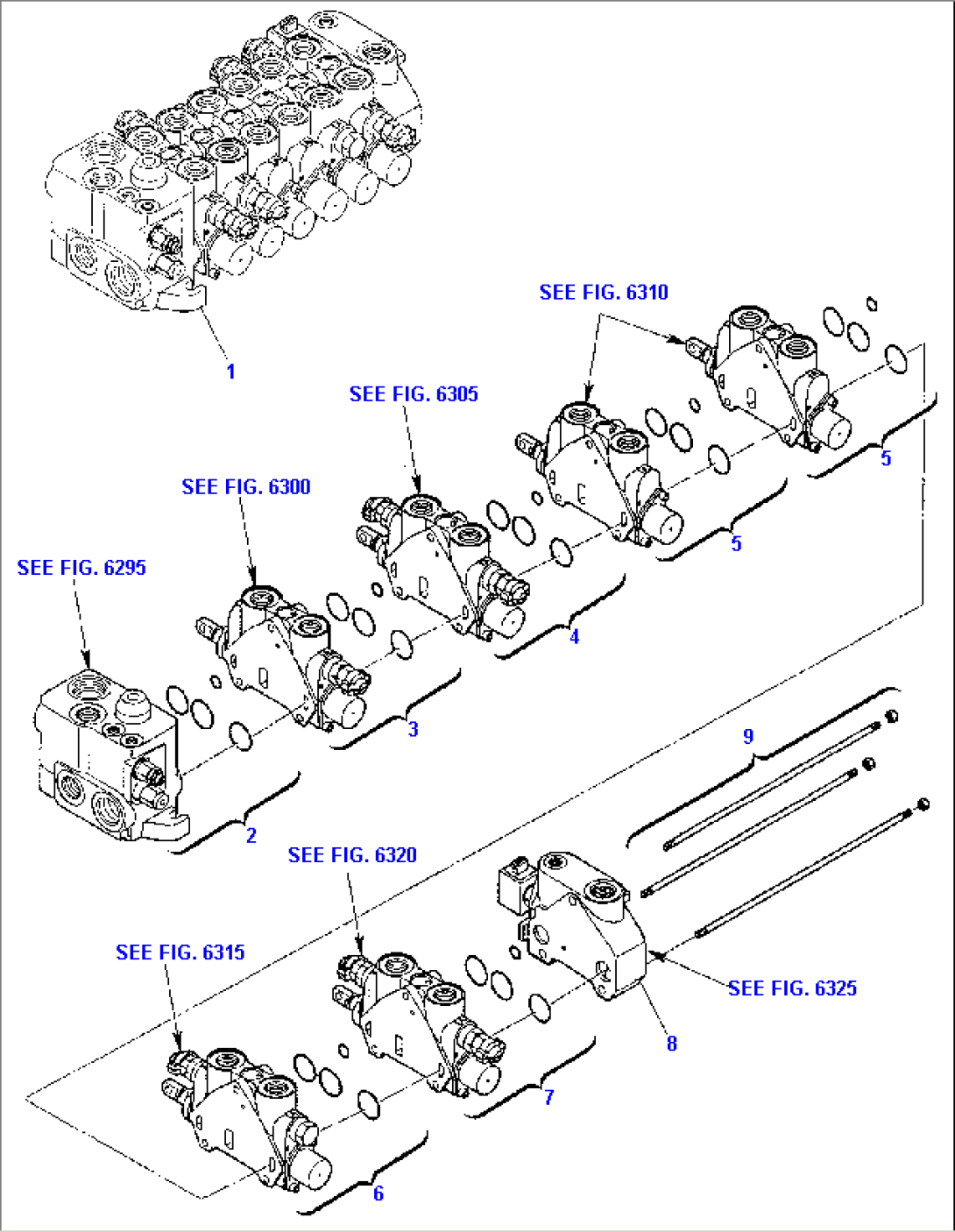

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 844020241 | CONTROL VALVE,ASSY | 15050001- | |
| 2 | 844200496 | INLET ELEMENT, ASSY | 15050001- | |
| 3 | 844200498 | BLOCK, ARM CONTROL ASSY | 15050001- | |
| 4 | 844200500 | BLOCK, BOOM SWING CONTROL ASSY | 15050001- | |
| 5 | 844200471 | BLOCK, OUTRIGGER CONTROL ASSY | 15050001- | |
| 6 | 844200499 | BLOCK, BUCKET CONTROL ASSY | 15050001- | |
| 7 | 844200497 | BLOCK, BOOM CONTROL ASSY | 15050001- | |
| 8 | 844200494 | OUTLET SECTION ASSY | 15050001- | |
| 9 | 844200475 | TIE RODS KIT | 15050001- | |
| SEE FIG. 6295 | ||||
| SEE FIG. 6300 | ||||
| SEE FIG. 6305 | ||||
| SEE FIG. 6310 | ||||
| SEE FIG. 6315 | ||||
| SEE FIG. 6320 | ||||
| SEE FIG. 6325 |
