| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-Z90-3410 | UNDER GUARD | 60001- | |
| 2 | 01010-D1225 | BOLT | 60001- | |
| 3 | 01010-D1240 | BOLT | 60001- | |
| 4 | 01643-71232 | WASHER | 60001- | |
| 5 | 423-46-34130 | PLATE | 60001- | |
| 6 | 01010-D1020 | BOLT | 60001- | |
| 7 | 01643-71032 | WASHER | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380 5 s/n 60001 up (overseas version)
- Main/revolving frame and related parts
- Bar lock and cover (t/m under guard)
Поиск по каталогу

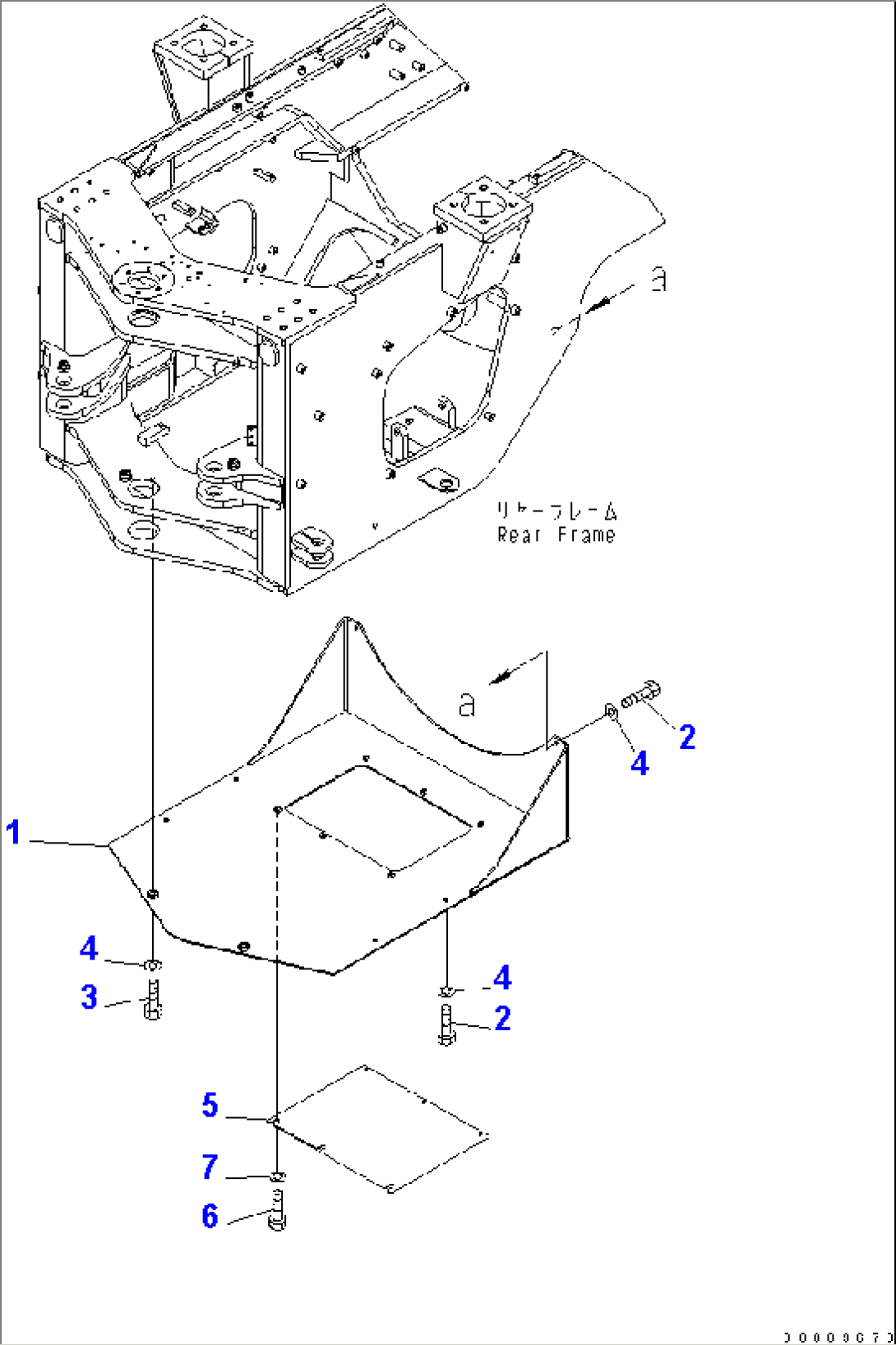

BAR LOCK AND COVER (T/M UNDER GUARD)
