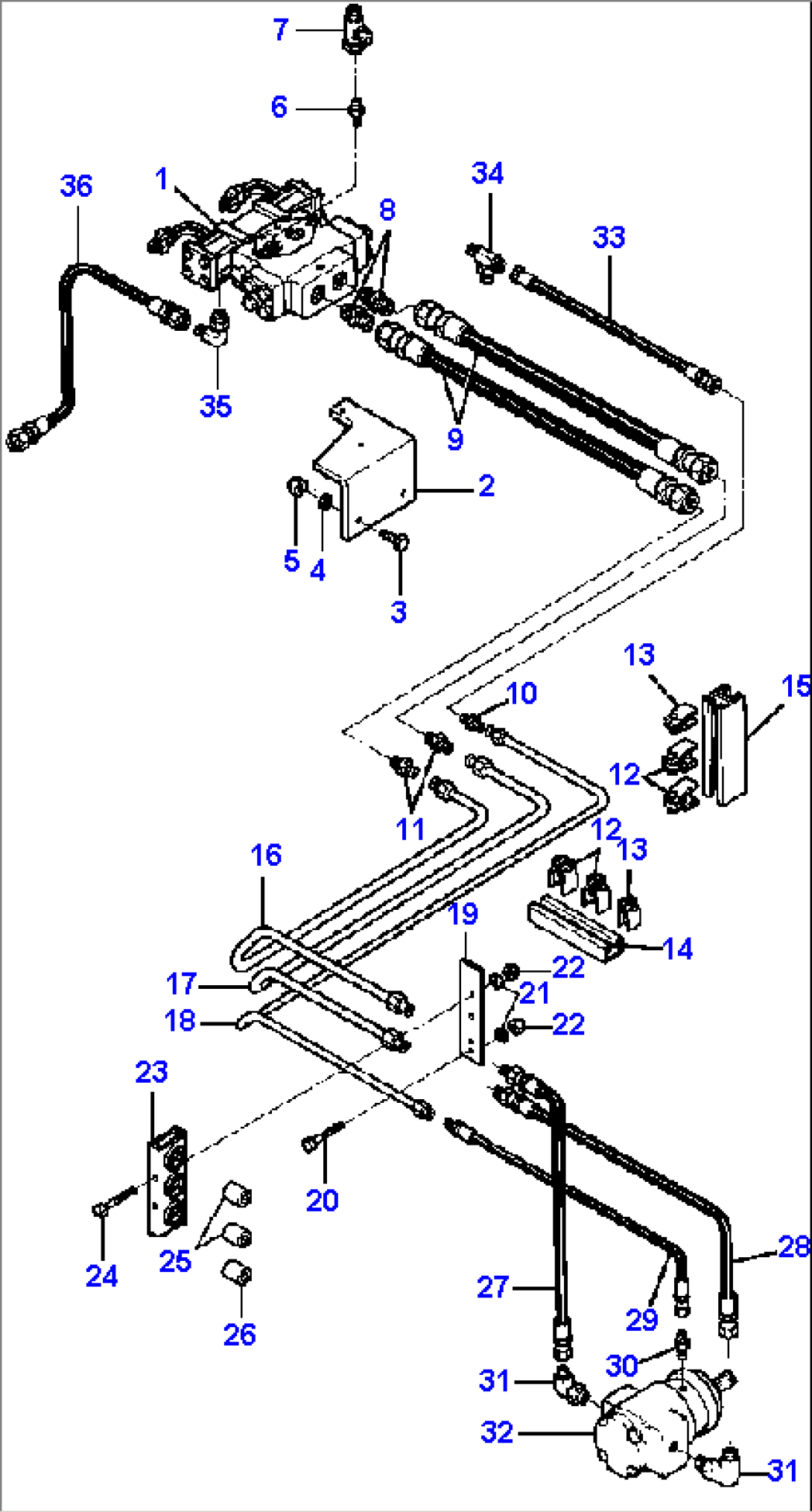

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE, SOLENOID (SEE PG 10-052) | |||
| 24 844 R1 | BOLT | |||
| 25 534 R1 | WASHER, PLAIN | |||
| 9413 989 | NUT, LOCK | |||
| 2 | 161 642 | BRACKET, VALVE MOUNTING | ||
| 3 | 24 841 R1 | BOLT | ||
| 4 | 25 534 R1 | WASHER, FLAT | ||
| 5 | 9412 979 | NUT, LOCK | ||
| 6 | 99 080 | CONNECTOR | ||
| 65 482 | O-RING | |||
| 7 | 9410 337 | TEE | ||
| 8 | 55 517 | CONNECTOR | ||
| 65 482 | O-RING | |||
| 9 | 1432 660 H1 | HOSE | ||
| 10 | 39 615 | UNION | ||
| 11 | 103 427 | UNION | ||
| 12 | 158 517 | CLAMP, TUBE | ||
| 13 | 158 475 | CLAMP, TUBE | ||
| 14 | 161 677 | CHANNEL | ||
| 15 | 161 747 | CHANNEL | ||
| 16 | 1432 035 H1 | TUBE | ||
| 17 | 1432 036 H1 | TUBE | ||
| 18 | 1432 031 H1 | TUBE | ||
| 19 | 1432 034 H1 | BRACKET | ||
| 20 | 24 621 R1 | BOLT | ||
| 21 | 25 533 R1 | WASHER, FLAT | ||
| 22 | 9413 977 | NUT, LOCK | ||
| 23 | 118 466 | CLAMP | ||
| 24 | 26 269 R1 | CAPSCREW | ||
| 25 | 118 465 | BUSHING | ||
| 26 | 142 208 | BUSHING | ||
| 27 | 1432 032 H1 | HOSE | ||
| 28 | 1432 033 H1 | HOSE | ||
| 29 | 1432 030 H1 | HOSE | ||
| 30 | 59 268 | CONNECTOR | ||
| 49 163 | O-RING | |||
| 31 | 9410 979 | ELBOW | ||
| 65 482 | O-RING | |||
| 32 | MOTOR, VIBRATOR (SEE PG 10-042) | |||
| 33 | 1432 661 H1 | HOSE | ||
| 34 | TEE (SEE PG 10-006) | |||
| 35 | 65 004 | ELBOW | ||
| 71 517 | O-RING | |||
| 36 | HOSE (SEE PG 10-006) |
