| Item | Part No. | Part Name | Qty | Serial No. |

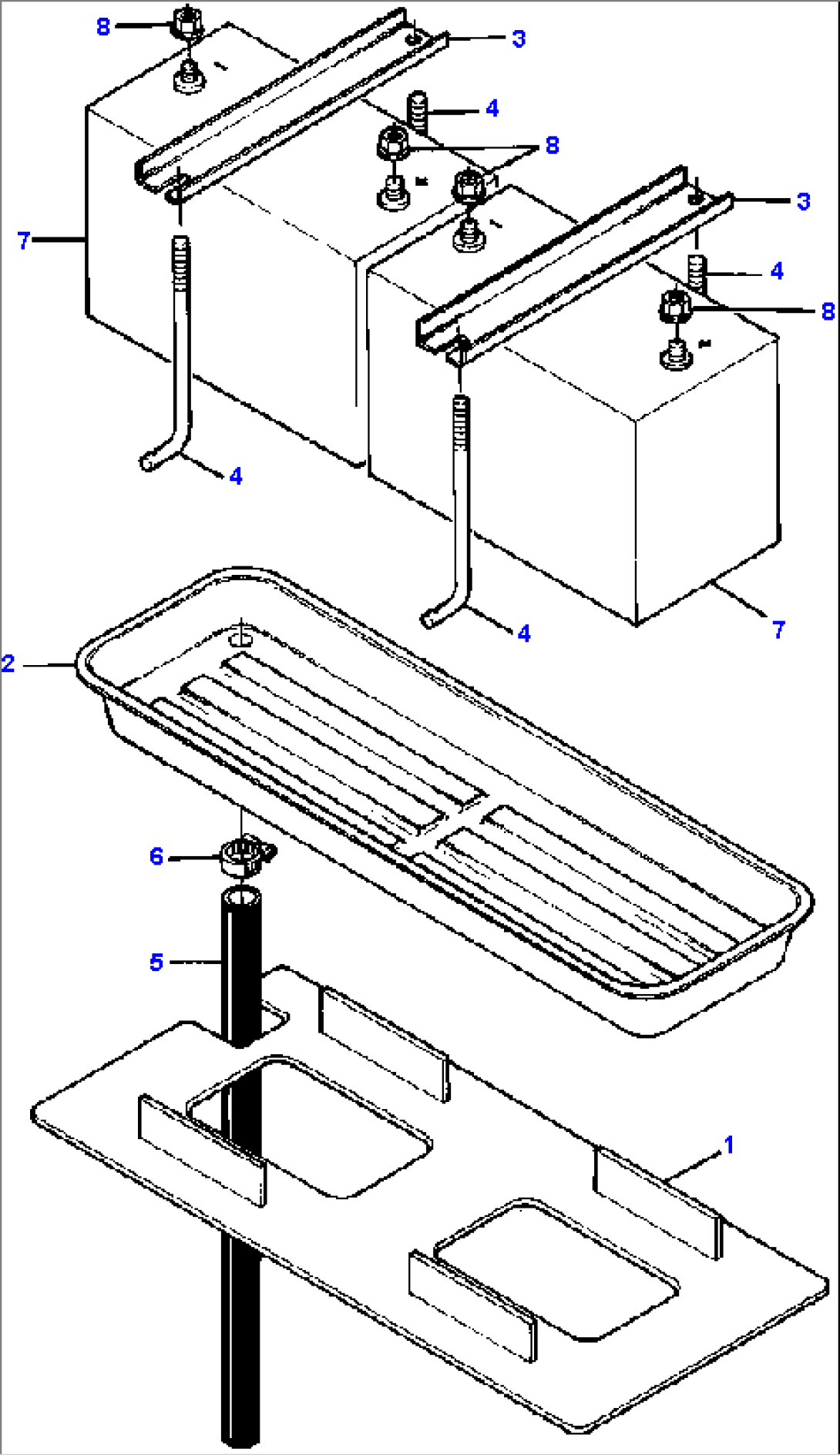

| (1244 927 H91) | BATTERY MOUNTING | |||
| 1 | 1234 143 H92 | PLATE, LOWER COVER | ||
| 2 | 1234 146 H1 | TRAY, BATTERY | ||
| 3 | 1234 147 H1 | CHANNEL, HOLDDOWN | ||
| 4 | 1234 145 H1 | ROD, HOLDDOWN | ||
| 25 544 R1 | WASHER, FLAT - 3/8 | |||
| 25 522 R1 | NUT, HEX - 3/8NC | |||
| 25 544 R1 | WASHER, FLAT - 3/8 | |||
| 103 384 | PIN, COTTER | |||
| 5 | 1245 513 H1 | TUBE, DRAIN | ||
| 6 | 122 316 R91 | CLAMP, TUBE | ||
| (1234 222 H91) | WARM START BATTERIES | |||
| 7 | MW-3 106 252 | BATTERY, WARM START | ||
| 8 | 476 074 C1 | NUT, TERMINAL | ||
| 7 | HW-3 109 252 | BATTERY, COLD START | ||
| 8 | 476 074 C1 | NUT, TERMINAL | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE | ||||
| ONLY. ORDER INDIVIDUAL PIECE PARTS. |
