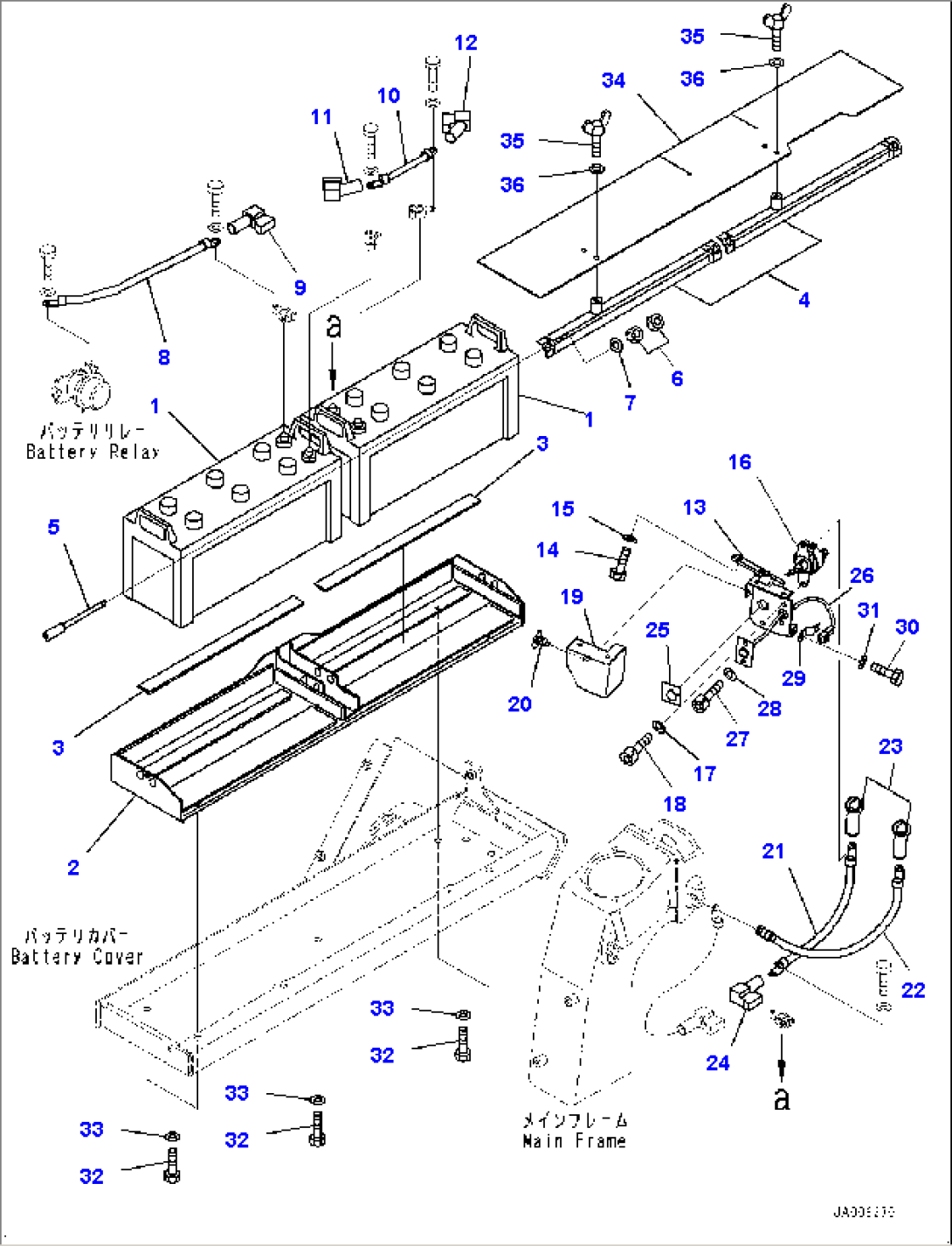

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-3222Z | Battery, Wet, 195G51 | 1001- | |
| 1 | 08000-00000 | Terminal, (+) | 1001- | |
| 08000-00001 | Terminal, (-) | 1001- | ||
| 2 | 14X-06-62112 | Bracket | 2656- | |
| 2 | 14X-06-62111 | Bracket | 1001-2655 | |
| 3 | 08007-23549 | Cushion, Battery | 1001- | |
| 4 | 14X-06-62121 | Holder | 1001- | |
| 5 | 14X-06-62261 | Bolt | 1001- | |
| 6 | 01580-11008 | Nut | 1001- | |
| 7 | 01643-31032 | Washer | 1001- | |
| 8 | 08028-GD045 | Cable, Ground | 1001- | |
| 9 | 14X-06-12280 | Cover | 1001- | |
| 10 | 08028-64020 | Cable, Battery | 1001- | |
| 11 | 14X-06-12280 | Cover | 1001- | |
| 12 | 21J-06-11570 | Cover | 1001- | |
| 13 | 14X-06-62960 | Bracket | 1001- | |
| 14 | 01010-81025 | Bolt | 1001- | |
| 15 | 01643-31032 | Washer | 1001- | |
| 16 | 08068-00001 | Switch, Battery | 1001- | |
| 17 | 01643-30823 | Washer | 1001- | |
| 18 | 01252-A0825 | Bolt, Hexagon Socket Head | 1001- | |
| 19 | 14X-06-62840 | Cover | 1001- | |
| 20 | 20T-54-74510 | Cap | 1001- | |
| 21 | 08028-ED040 | Cable, Ground | 1001- | |
| 22 | 14X-06-52830 | Cable | 1001- | |
| 23 | 08038-00035 | Cap, Terminal | 1001- | |
| 24 | 14X-06-12270 | Cover | 1001- | |
| 25 | 09697-00001 | Plate, Battery Disconnect Switch | 1001- | |
| 26 | 08155-02400 | Lamp | 1001- | |
| 27 | 01252-A0820 | Bolt, Hexagon Socket Head | 1001- | |
| 28 | 01643-30823 | Washer | 1001- | |
| 29 | 08193-20010 | Clip | 1001- | |
| 30 | 01010-81020 | Bolt | 1001- | |
| 31 | 01643-31032 | Washer | 1001- | |
| 32 | 01010-81225 | Bolt | 1001- | |
| 33 | 01643-31232 | Washer | 1001- | |
| 34 | 14X-06-62482 | Sheet | 1001- | |
| 35 | 01434-00820 | Bolt, Wing | 1001- | |
| 36 | 113-43-23230 | Washer | 1001- |
