| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | \6\ | BATTERY¤ WET | 94999-@ | |
| 08000-00000 | TERMINAL¤ (+) | 80001-@ | ||
| 08000-00001 | TERMINAL¤ (-) | 80001-@ | ||
| 2 | 205-06-71173 | HOLDER | 80001-@ | |
| 3 | 205-06-71180 | BOLT | 80001-@ | |
| 4 | 08038-22511 | CAP | 80001-@ | |
| 5 | 08028-43030 | CABLE | 80001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 6h s/n 80001 up
- Electrical system
- Battery (115e41r) (hy.brid type) (wet)(#94999 96513)
Поиск по каталогу

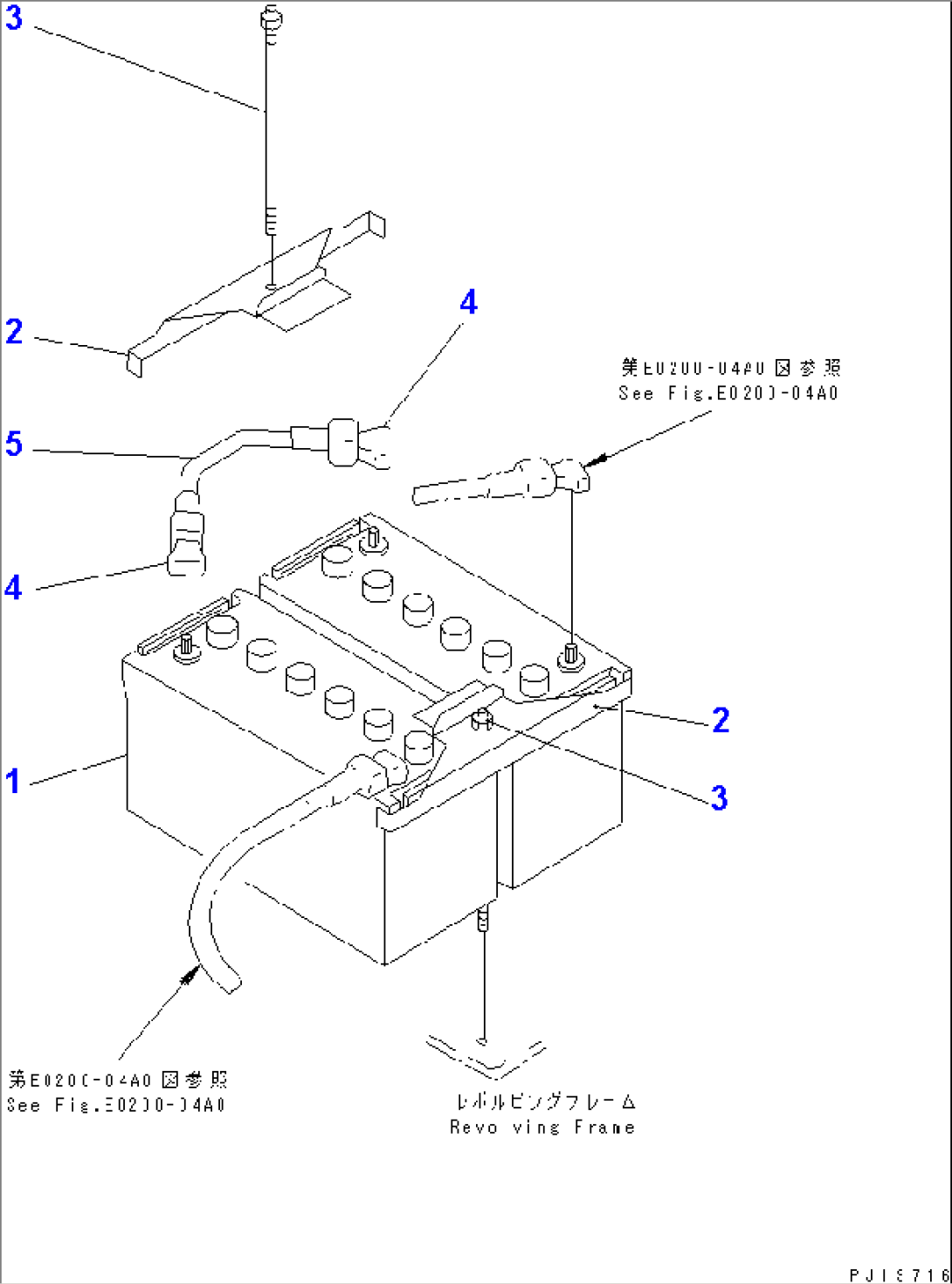

BATTERY (115E41R) (HY.BRID TYPE) (WET)(#94999-96513)
