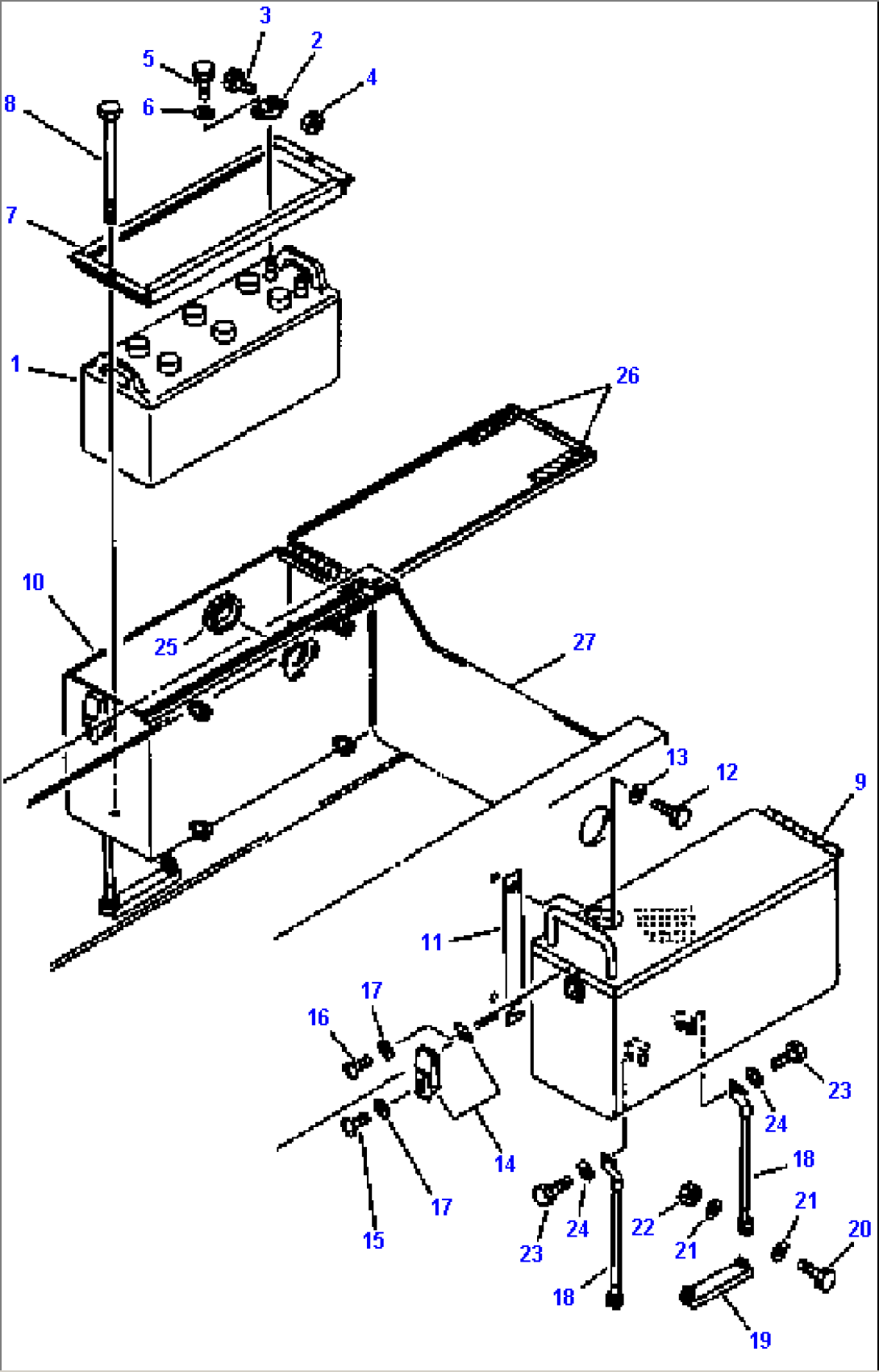

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-06-A1110 | BATTERY, 12V, 250AH | ||
| 2 | 08030-00010 | TERMINAL (+) | ||
| 2 | 08030-00012 | TERMINAL (-) | ||
| 3 | 01010-30830 | BOLT | ||
| 4 | 01580-00806 | NUT | ||
| 5 | 01050-31018 | BOLT | ||
| 6 | 01640-01016 | WASHER | ||
| 7 | 418-06-A1130 | HOLDER | ||
| 8 | 418-09-11121 | BOLT | ||
| 9 | 418-06-A1110 | BATTERY BOX, LH | ||
| 10 | 418-06-A1120 | BATTERY BOX, RH | ||
| 11 | 418-06-11160 | SHIM 1.0MM | ||
| 12 | 01010-51430 | BOLT | ||
| 13 | 01643-31445 | WASHER | ||
| 14 | 421-09-12321 | HOLDER | ||
| 15 | 01220-40408 | SCREW | ||
| 16 | 01220-40410 | SCREW | ||
| 17 | 01641-20405 | WASHER | ||
| 18 | 423-54-14260 | WIRE ROPE | ||
| 19 | 423-54-12770 | STEP | ||
| 20 | 01010-51265 | BOLT | ||
| 21 | 01643-31232 | WASHER | ||
| 22 | 426-43-19150 | NUT, LOCK | ||
| 23 | 01010-51230 | BOLT | ||
| 24 | 01643-31232 | WASHER | ||
| 25 | 426-09-11230 | GROMMET | ||
| 26 | 421-09-12780 | CUSHION, STRIP | ||
| 27 | REAR FRAME (SEE PG 05-006) |
