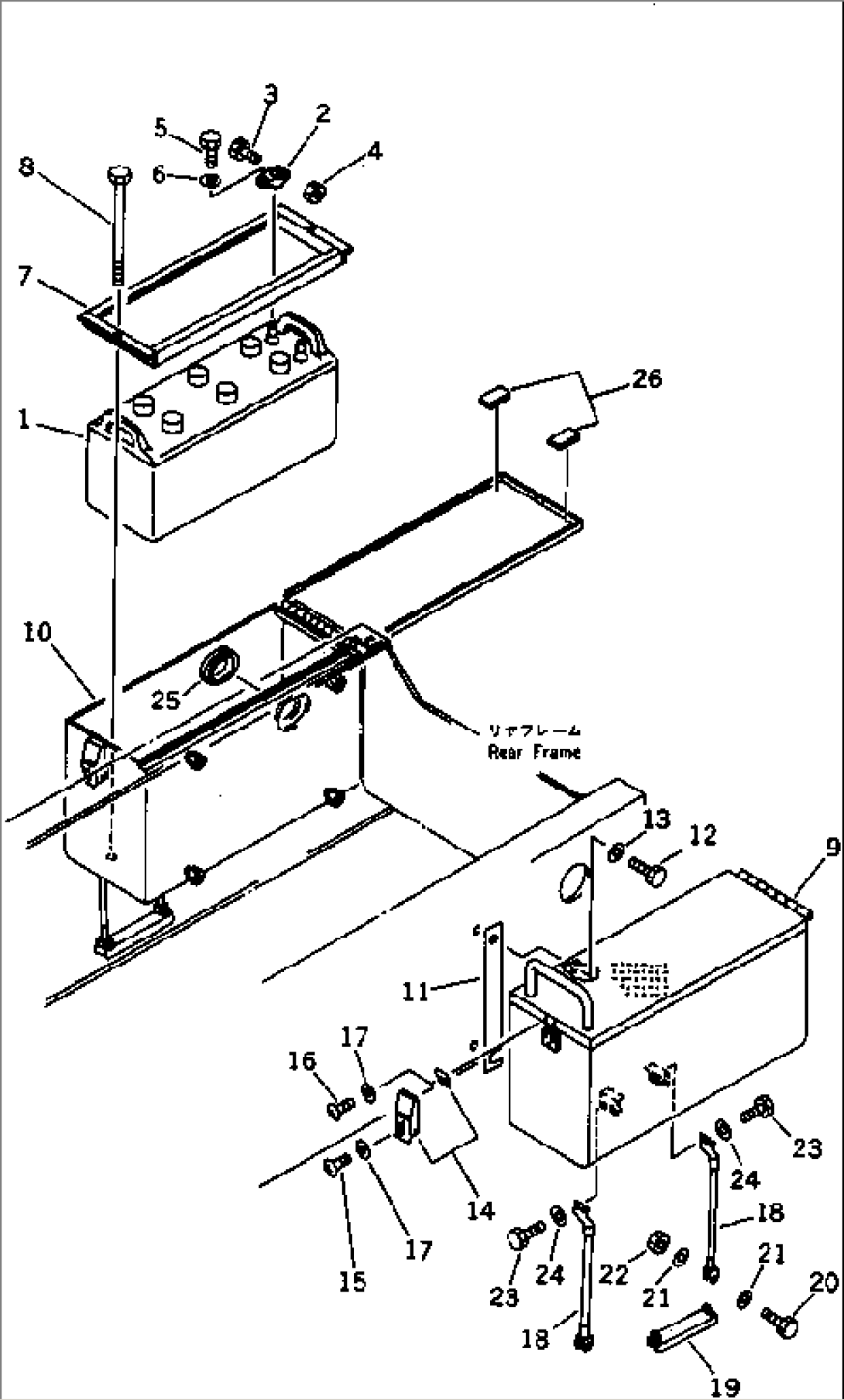

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-Z28-1110 | BATT, WET NX250-12 | 10001- | |
| 1 | 08000-32215 | BATTERY, WET(145F51),(DRY TYPE) | 10001- | |
| 2 | 08000-00000 | TERMINAL, (+) | 10001- | |
| 2 | 08000-00001 | TERMINAL, (-) | 10001- | |
| 3 | 01010-30830 | BOLT | 10001- | |
| 4 | 01580-00806 | NUT | 10001- | |
| 5 | 01050-31018 | BOLT | 10001- | |
| 6 | 01640-01016 | WASHER | 10001- | |
| 7 | 418-06-11140 | HOLDER | 10001- | |
| 8 | 418-09-11120 | BOLT | 10001- | |
| 9 | 418-06-14210 | BOX,L.H. | 10001- | |
| 10 | 418-06-14220 | BOX,R.H. | 10001- | |
| 11 | 418-06-11160 | SHIM, 1.0MM | 10001- | |
| 12 | 01010-51430 | BOLT | 10001- | |
| 13 | 01643-31445 | WASHER | 10001- | |
| 14 | 421-09-12321 | HOLDER,(WA250-1M) | 10420- | |
| 14 | \1\421-09-12320 | HOLDER,(WA250-1M) | 10001-10419 | |
| 14 | 421-09-12321 | HOLDER,(WA250-1P) | 10457- | |
| 14 | \1\421-09-12320 | HOLDER,(WA250-1P) | 10001-10456 | |
| 15 | 01220-40408 | SCREW | 10001- | |
| 16 | 01220-40410 | SCREW | 10001- | |
| 17 | 01641-20405 | WASHER | 10001- | |
| 18 | 423-54-14260 | ROPE | 10001- | |
| 19 | 423-54-12770 | STEP | 10001- | |
| 20 | 01010-51265 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 426-43-19150 | NUT,LOCK | 10001- | |
| 23 | 01010-51230 | BOLT | 10001- | |
| 24 | 01643-31232 | WASHER | 10001- | |
| 25 | 426-09-11230 | GROMMET | 10001- | |
| 26 | 421-09-12780 | CUSHION,STRIP | 10607- |
