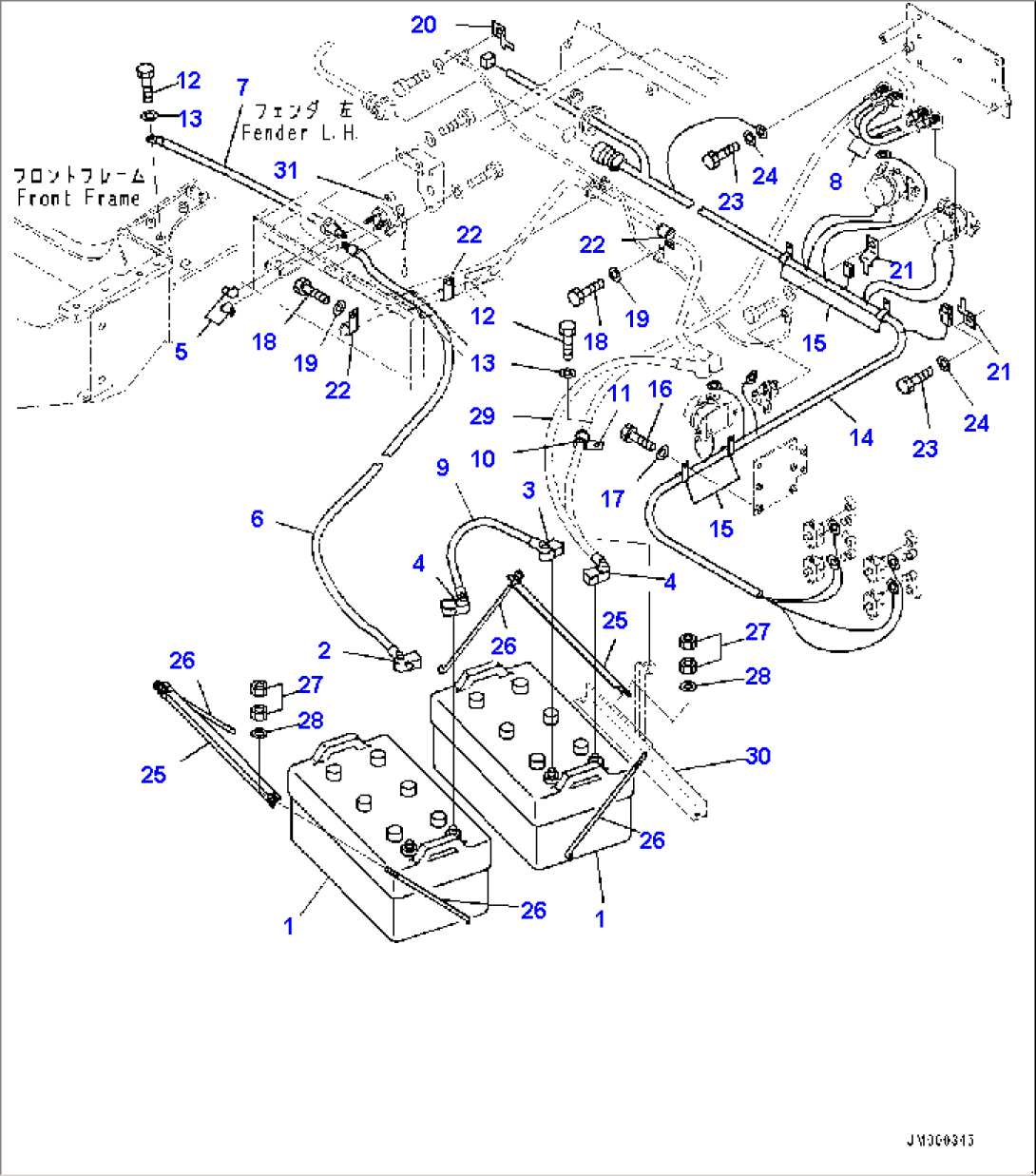

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-02221 | Battery, Wet, C200 | 2785-@ | |
| 1 | 08000-00000 | Terminal, (+) | 2785-@ | |
| 1 | 08000-00001 | Terminal, (-) | 2785-@ | |
| 2 | 424-09-12540 | Boot | 2785-@ | |
| 3 | 56B-06-11220 | Cap | 2785-@ | |
| 4 | 56B-06-11210 | Cap | 2785-@ | |
| 5 | 08038-00035 | Cap, Terminal | 2785-@ | |
| 6 | 08028-45035 | Cable, Ground | 2785-@ | |
| 7 | 08028-45045 | Cable, Ground | 2785-@ | |
| 8 | 08028-65011 | Wire, L=110mm | 2785-@ | |
| 9 | 08028-65040 | Cable, Ground | 2785-@ | |
| 10 | 566-06-41290 | Insulator | 2785-@ | |
| 11 | 04434-52511 | Clip | 2785-@ | |
| 12 | 01010-81020 | Bolt | 2785-@ | |
| 13 | 01643-31032 | Washer | 2785-@ | |
| 14 | 56D-06-22422 | Wiring Harness | 2785-@ | |
| 56B-06-16510 | Diode | 2785-@ | ||
| 15 | 04434-52711 | Clip | 2785-@ | |
| 16 | 01010-81020 | Bolt | 2785-2939 | |
| 17 | 01643-31032 | Washer | 2785-@ | |
| 18 | 01010-81020 | Bolt | 2785-@ | |
| 19 | 01643-31032 | Washer | 2785-@ | |
| 20 | 08193-31012 | Clip | 2785-@ | |
| 21 | 08193-21012 | Clip | 2785-@ | |
| 22 | 04434-52312 | Clip | 2785-@ | |
| 23 | 01010-81020 | Bolt | 2785-@ | |
| 24 | 01643-31032 | Washer | 2785-@ | |
| 25 | 421-06-11221 | Holder | 2785-@ | |
| 26 | 565-56-12440 | Rod | 2785-@ | |
| 27 | 01580-11008 | Nut | 2785-@ | |
| 28 | 01643-31032 | Washer | 2785-@ | |
| 29 | (08028-65050) | Cable | - | |
| 30 | (56E-54-27680) | Bracket | - | |
| 31 | (08068-00001) | Switch, Battery | - |
