| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-89-27730 | Handrail | 2848- | |
| 2 | 01010-81230 | Bolt | 2848- | |
| 3 | 01643-31232 | Washer | 2848- | |
| 4 | 56B-89-27720 | Guard | 2848- | |
| 5 | 01010-81220 | Bolt | 2848- | |
| 6 | 01643-31232 | Washer | 2848- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n 2848 up (for kal)
- Electrical system
- Battery and battery case group, handrail (#2848 )
Поиск по каталогу

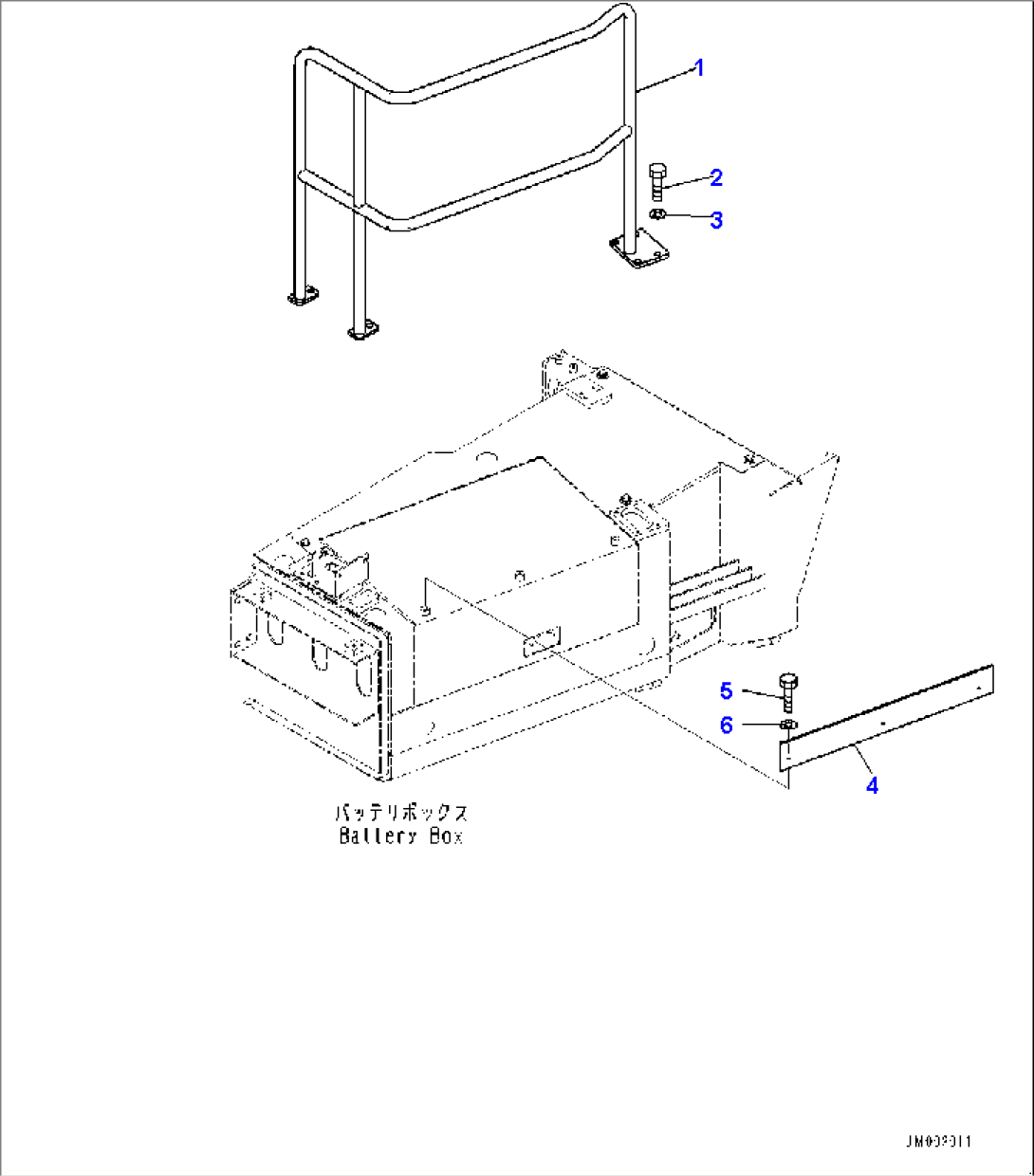

Battery and Battery Case Group, Handrail (#2848-)
