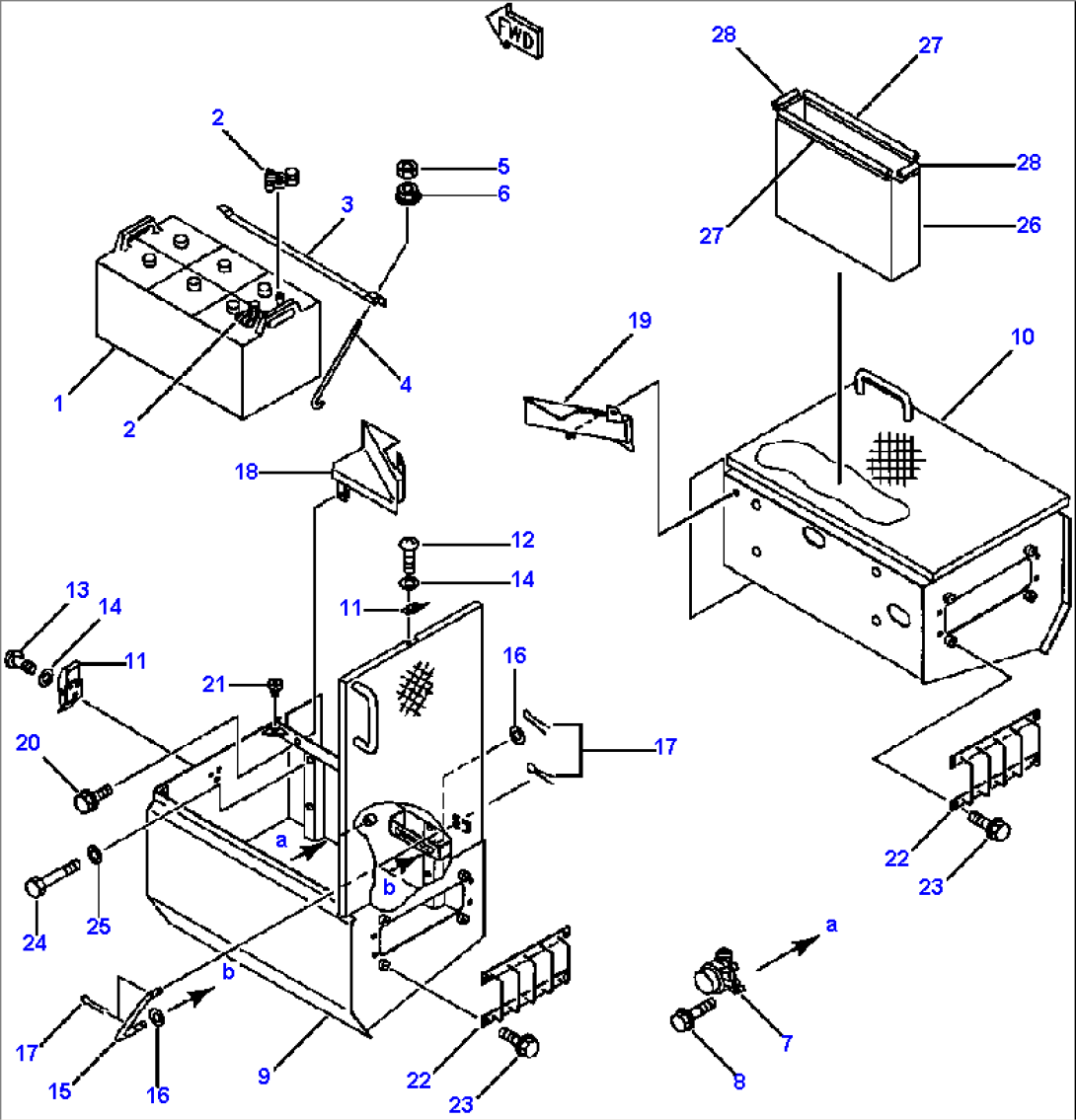

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-A1111 | BATTERY, WET | ||
| 2 | 08000-00000 | TERMINAL, (+) BATTERY | ||
| 08000-00001 | TERMINAL, (-) BATTERY | |||
| 3 | 421-06-11221 | HOLDER, BATTERY | ||
| 4 | 113-06-31120 | BOLT, BATTERY HOLD DOWN | ||
| 5 | 01580-11008 | NUT | ||
| 6 | 01584-01008 | NUT | ||
| 7 | 421-06-11930 | RELAY, BATTERY | ||
| 01010-50816 | BOLT | |||
| 01643-50823 | WASHER | |||
| 01220-40408 | SCREW | |||
| 01601-20410 | WASHER | |||
| 8 | 01435-00825 | BOLT, MOUNT RELAY | ||
| 9 | 425-06-11113 | BOX, BATTERY - LH | ||
| 425-50-15530 | SHIM | |||
| 10 | 425-06-11123 | BOX, BATTERY - RH | ||
| 425-50-15530 | SHIM | |||
| 11 | 421-09-12321 | LATCH, BATTERY BOX | ||
| 12 | 01220-40410 | SCREW, LATCH | ||
| 13 | 01220-40408 | SCREW, LATCH | ||
| 14 | 01641-20405 | WASHER | ||
| 15 | 426-06-11280 | ROD | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 04050-13020 | PIN, COTTER | ||
| 18 | 425-54-11170 | COVER, LH | ||
| 19 | 425-54-11180 | COVER, RH | ||
| 20 | 01435-01020 | BOLT, BATTERY BOX | ||
| 21 | 415-54-11980 | CUSHION | ||
| 22 | 425-06-11410 | GUARD | ||
| 23 | 01435-01016 | BOLT, GUARD | ||
| 24 | 01010-31665 | BOLT, BATTERY BOX | ||
| 25 | 01643-31645 | WASHER | ||
| 26 | 421-54-18520 | BOX, TOOL | ||
| 27 | 421-54-18530 | SEAL | ||
| 28 | 421-54-18540 | SEAL |
