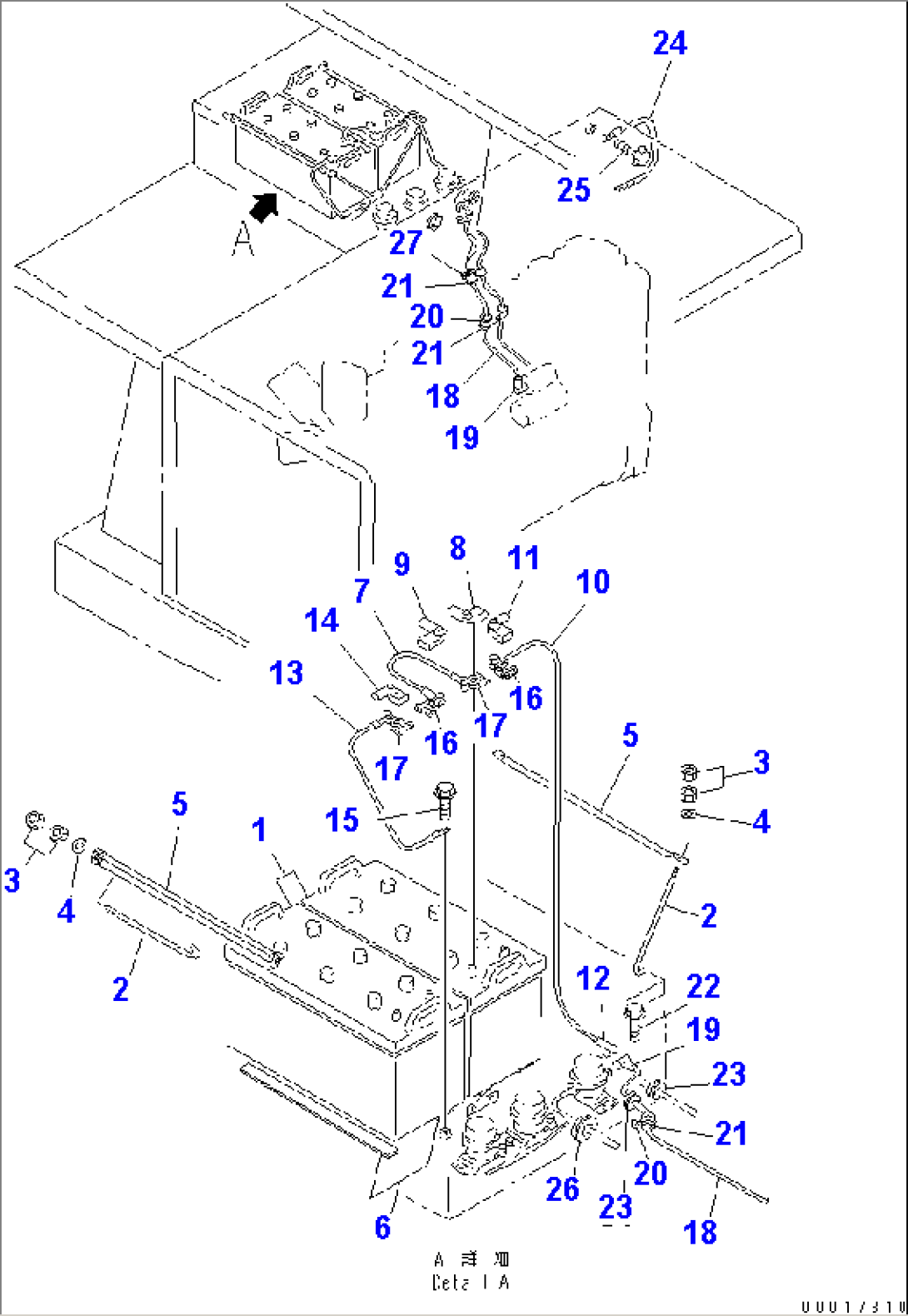

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-02221 | BATTERY, WET(C200),(C200 OR F300-20) | 1001- | |
| 2 | 565-56-12440 | ROD | 1001- | |
| 3 | 01580-11008 | NUT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 421-06-11221 | HOLDER | 1001- | |
| 6 | 08007-03549 | CUSHION | 1001- | |
| 7 | 08028-64011 | CABLE, BATTERY | 1001- | |
| 8 | 56B-06-11220 | CAP | 1601- | |
| 9 | 56B-06-11210 | CAP | 1601- | |
| 10 | 08028-64045 | CABLE, BATTERY | 1601- | |
| 11 | 56B-06-11220 | CAP | 1601- | |
| 12 | 08038-00035 | CAP | 1001- | |
| 13 | 08028-44045 | CABLE, GROUND | 1601- | |
| 14 | 424-09-12530 | BOOT | 1601- | |
| 15 | 01435-01016 | BOLT | 1001- | |
| 16 | 08000-00000 | TERMINAL, (+) | 1001- | |
| 17 | 08000-00001 | TERMINAL, (-) | 1001- | |
| 18 | 08028-64125 | CABLE, BATTERY | 10001- | |
| 19 | 08038-00035 | CAP | 1001- | |
| 20 | 04434-52512 | CLIP | 1001- | |
| 21 | 566-06-41290 | INSULATOR | 1001- | |
| 22 | 01435-01016 | BOLT | 1601- | |
| 23 | 08037-02512 | GROMMET | 1001- | |
| 24 | 08028-45025 | CABLE, GROUND | 1601- | |
| 25 | 01435-01016 | BOLT | 1001- | |
| 26 | 08037-03614 | GROMMET | 1001- | |
| 27 | 04434-52512 | CLIP | 1601- |
