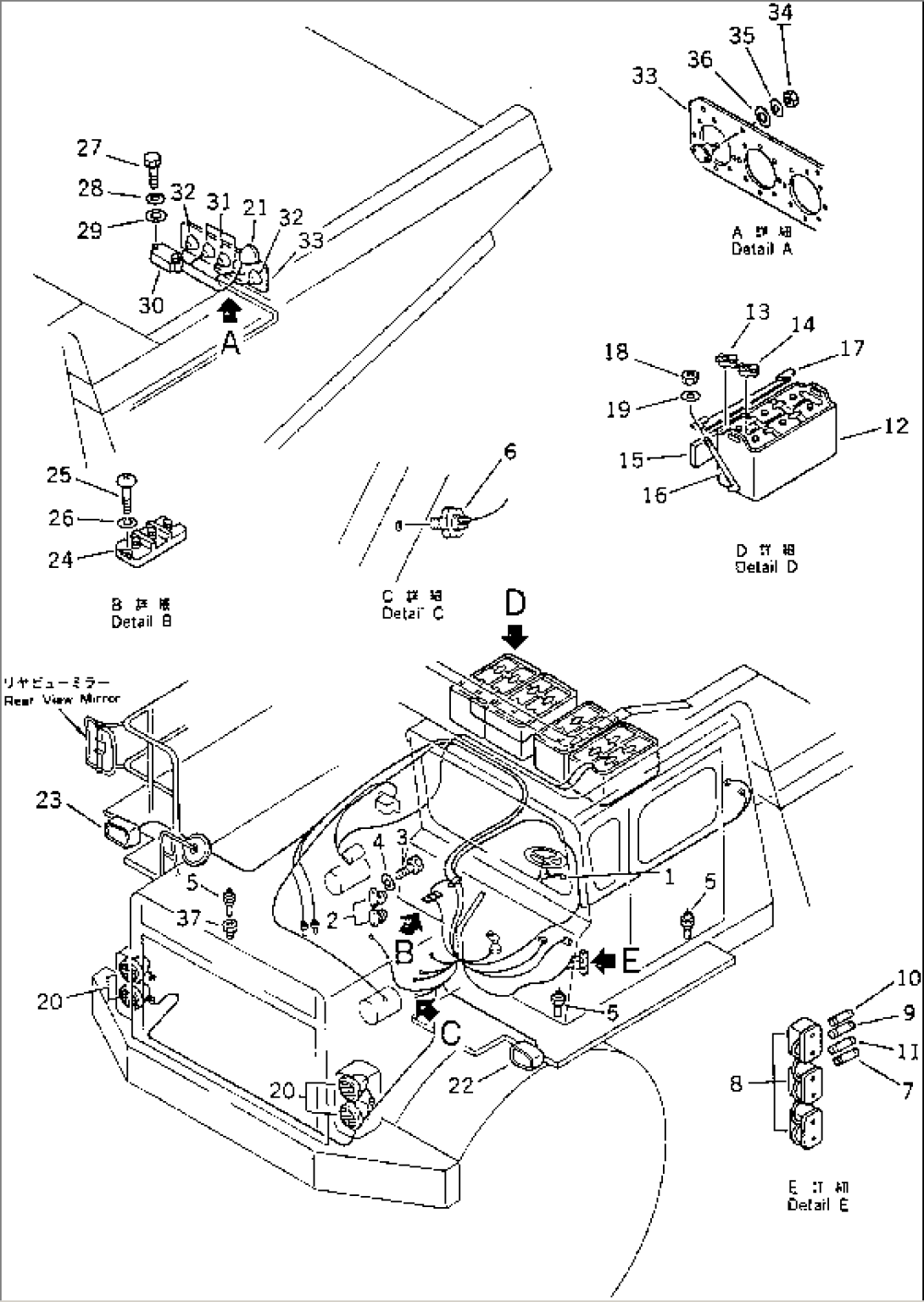

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-06-13731 | SWITCH,TURN SIGNAL | 1002- | |
| 2 | 08088-10000 | SWITCH,BATTERY RELAY | 1002- | |
| 3 | 01010-50816 | BOLT | 1002- | |
| 4 | 01602-20825 | WASHER | 1002- | |
| 5 | 198-06-11941 | SENSOR | 1002- | |
| 6 | 566-06-13871 | SWITCH | 1002- | |
| 7 | 08040-00050 | FUSE, 0.5A | 1002- | |
| 8 | 08043-16000 | BOX,FUSE | 1002- | |
| 9 | 08040-04000 | FUSE, 40A | 1002- | |
| 10 | 08040-01000 | FUSE, 10A | 1002- | |
| 11 | 08040-00500 | FUSE, 5A | 1002- | |
| 12 | 08000-02220 | BATTERY (190H52) | 1002- | |
| 13 | 08000-00000 | TERMINAL, (+) | 1002- | |
| 14 | 08000-00001 | TERMINAL, (-) | 1002- | |
| 15 | 565-56-13210 | PLATE | 1002- | |
| 16 | 565-56-12440 | ROD | 1002- | |
| 17 | 281-06-14131 | CLAMP | 1002- | |
| 18 | 01580-11008 | NUT | 1002- | |
| 19 | 01642-21016 | WASHER | 1002- | |
| 20 | 08120-32440 | LAMP,HEAD | 1002- | |
| 20 | 08113-02440 | BULB, 40W | 1002- | |
| 20 | 08128-00003 | HOLDER | 1002- | |
| 21 | 08128-22400 | LAMP ASS'Y | 1002- | |
| 21 | 08113-22400 | BULB | 1002- | |
| 21 | 08128-00003 | HOLDER | 1002- | |
| 22 | 08130-62400 | LAMP ASS'Y,COMBINATION, L.H. | 1002- | |
| 22 | 08105-12420 | BULB, 25W | 1002- | |
| 22 | 08110-12410 | BULB, 12W | 1002- | |
| 22 | 08130-60007 | LENS | 1002- | |
| 22 | 08130-60008 | LENS | 1002- | |
| 23 | 08130-82400 | LAMP ASS'Y,COMBINATION, R.H. | 1002- | |
| 23 | 08105-12420 | BULB, 25W | 1002- | |
| 23 | 08110-12410 | BULB, 12W | 1002- | |
| 23 | 08130-80007 | LENS | 1002- | |
| 23 | 08130-80008 | LENS | 1002- | |
| 24 | 566-06-13790 | BLOCK | 1002- | |
| 25 | 01220-40620 | SCREW | 1002- | |
| 26 | 01602-10619 | WASHER | 1002- | |
| 27 | 01011-51005 | BOLT | 1002- | |
| 28 | 01602-21030 | WASHER | 1002- | |
| 29 | 01643-31032 | WASHER | 1002- | |
| 30 | 566-06-15950 | ALARM | 1002- | |
| 31 | 08134-22400 | LAMP ASS'Y,FOOT BRAKE | 1002- | |
| 31 | 08104-12420 | BULB, 25/10W | 1002- | |
| 31 | 08102-02403 | BULB, 3W | 1002- | |
| 31 | 08134-20001 | LENS | 1002- | |
| 32 | 08131-12400 | LAMP ASS'Y,TURN SIGNAL | 1002- | |
| 32 | 08105-12420 | BULB, 25W | 1002- | |
| 32 | 08131-10001 | LENS | 1002- | |
| 33 | 566-06-13363 | BRACKET,REAR LAMP | 1002- | |
| 34 | 01580-11008 | NUT | 1002- | |
| 35 | 01602-21030 | WASHER | 1002- | |
| 36 | 01643-21032 | WASHER | 1002- | |
| 37 | 565-06-13212 | ADAPTER | 1002- |
