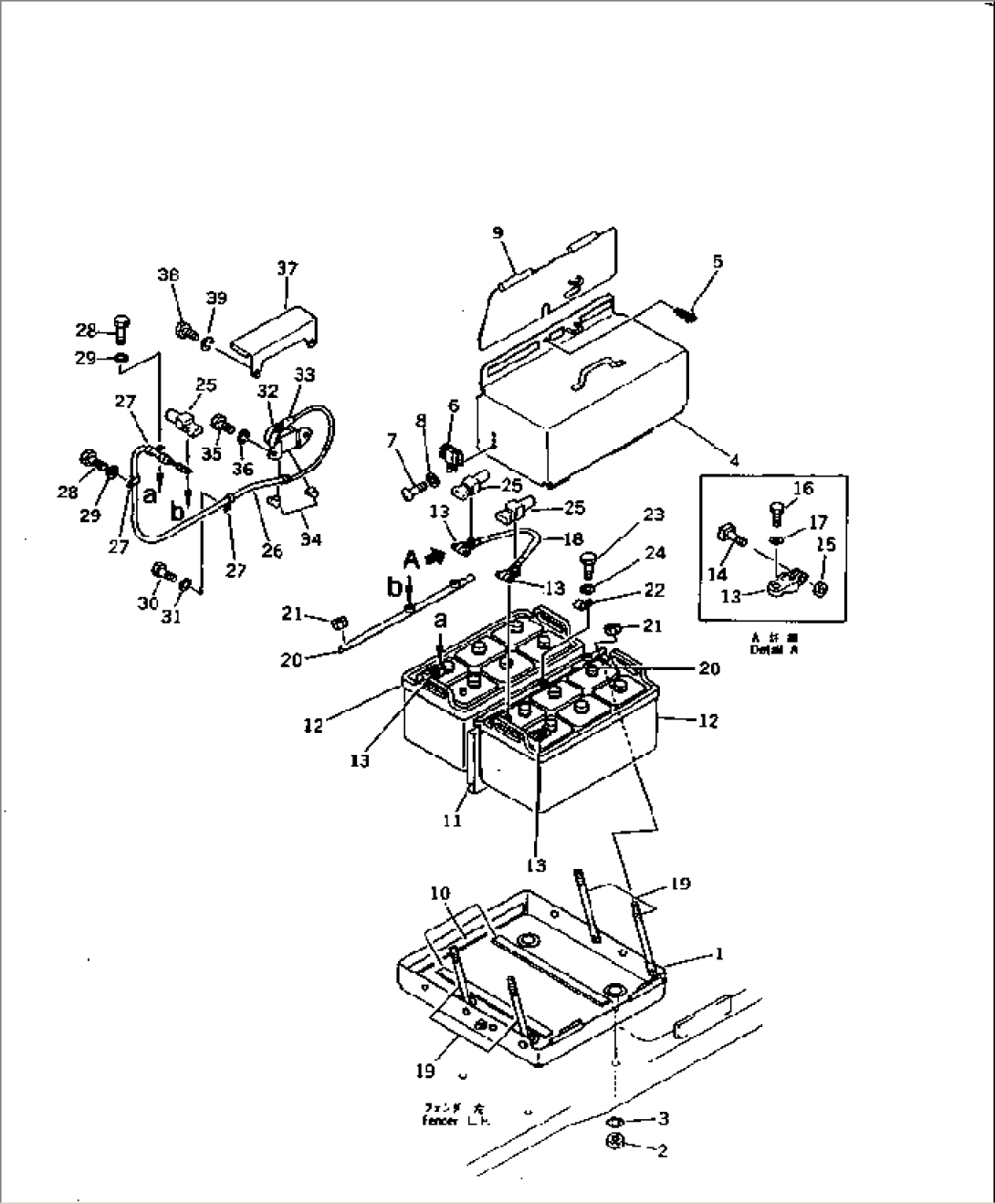

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-41580 | CASE,BATTERY | 36270- | |
| 1 | \0\154-06-42240 | CASE,BATTERY | 35001-36269 | |
| 2 | 01580-11210 | NUT | 35001- | |
| 3 | 01643-31232 | WASHER | 35001- | |
| 154-06-00600 | COVER ASS'Y,BATTERY | 35001-36269 | ||
| 4 | 154-06-41570 | COVER | 36270- | |
| 4 | \6\ | COVER | 35001-36269 | |
| 5 | 09459-00000 | LOCK | 35001- | |
| 6 | 195-57-11530 | CATCH CLIP | 35001- | |
| 7 | 01220-40512 | SCREW | 35001- | |
| 8 | 01601-20513 | WASHER,SPRING | 35001- | |
| 9 | 154-06-36741 | COVER | 35001- | |
| 10 | 08007-03549 | CUSHION,BATTERY | 35001- | |
| 11 | 08007-06050 | CUSHION,BATTERY | 35001- | |
| 12 | 08000-32220 | BATTERY, WET | 35001- | |
| 13 | 08000-00000 | TERMINAL, (+) | 35001- | |
| 13 | 08000-00001 | TERMINAL, (-) | 35001- | |
| 14 | 01010-50830 | BOLT | 35001- | |
| 15 | 01580-10806 | NUT | 35001- | |
| 16 | 01050-51018 | BOLT | 35001- | |
| 17 | 01640-21016 | WASHER | 35001- | |
| 18 | 08028-15011 | WIRE, 110MM | 35001- | |
| 19 | 175-06-39621 | ROD | 35001- | |
| 20 | 195-06-19461 | HOLDER,BATTERY | 35001- | |
| 21 | 01580-11008 | NUT | 35001- | |
| 22 | 08036-01814 | CLIP | 35001- | |
| 23 | 01010-51016 | BOLT | 35001- | |
| 24 | 01643-31032 | WASHER | 35001- | |
| 25 | 08038-22511 | CAP | 35001- | |
| 26 | 154-06-42190 | WIRING HARNESS | 35001- | |
| 27 | 08035-03014 | CLIP | 35001- | |
| 28 | 01010-51016 | BOLT | 35001- | |
| 29 | 01643-31032 | WASHER | 35001- | |
| 30 | 01010-51220 | BOLT | 35001- | |
| 31 | 01643-31232 | WASHER | 35001- | |
| 32 | 08088-10000 | SWITCH,BATTERY RELAY | 35001- | |
| 33 | 08038-00035 | CAP | 35001- | |
| 34 | 08038-00518 | CAP | 35001- | |
| 35 | 01010-50816 | BOLT | 35001- | |
| 36 | 01602-20825 | WASHER,SPRING | 35001- | |
| 37 | 154-06-36760 | COVER | 35001- | |
| 38 | 01010-50816 | BOLT | 35001- | |
| 39 | 01602-20825 | WASHER,SPRING | 35001- |
