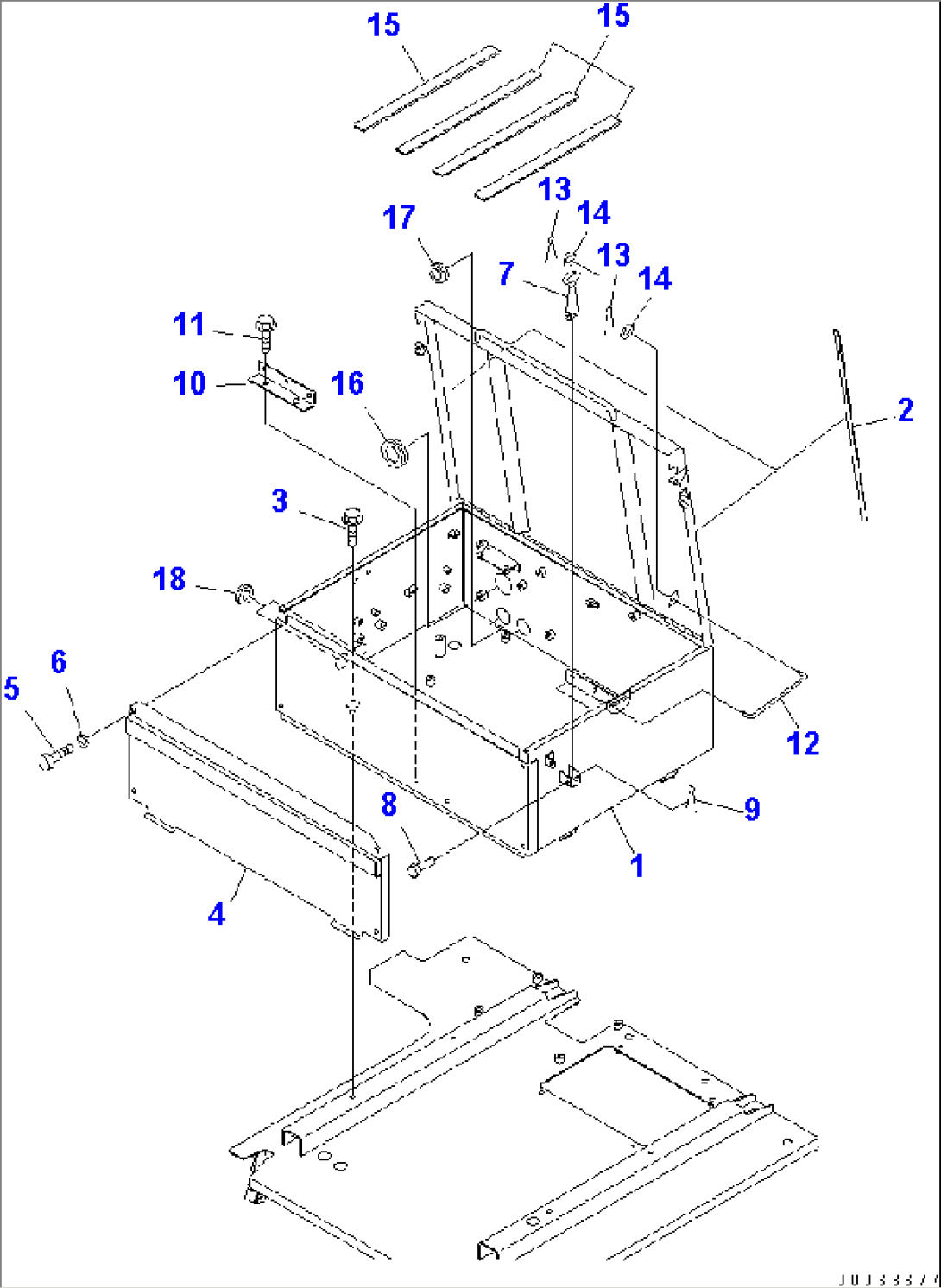

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-88912 | BOX | 10271- | |
| 2 | 566-54-8A940 | SHEET | 10271- | |
| 3 | 01435-01225 | BOLT | 10271- | |
| 4 | 569-54-81660 | COVER | 10271- | |
| 5 | 01010-81225 | BOLT | 10271- | |
| 6 | 01643-31232 | WASHER | 10271- | |
| 7 | 09450-00000 | CATCH | 10271- | |
| 8 | 09450-00002 | PIN | 10271- | |
| 9 | 04050-11610 | PIN | 10271- | |
| 10 | 569-54-81480 | ANGLE | 10271- | |
| 11 | 01435-01225 | BOLT | 10271- | |
| 12 | 569-54-61480 | ROD | 10271- | |
| 13 | 04050-13020 | PIN | 10271- | |
| 14 | 01643-31032 | WASHER | 10271- | |
| 15 | 08007-23549 | CUSHION | 10271- | |
| 16 | 08037-05016 | GROMMET | 10271- | |
| 17 | 08037-03614 | GROMMET | 10271- | |
| 18 | 09415-03614 | CAP | 10271- |
