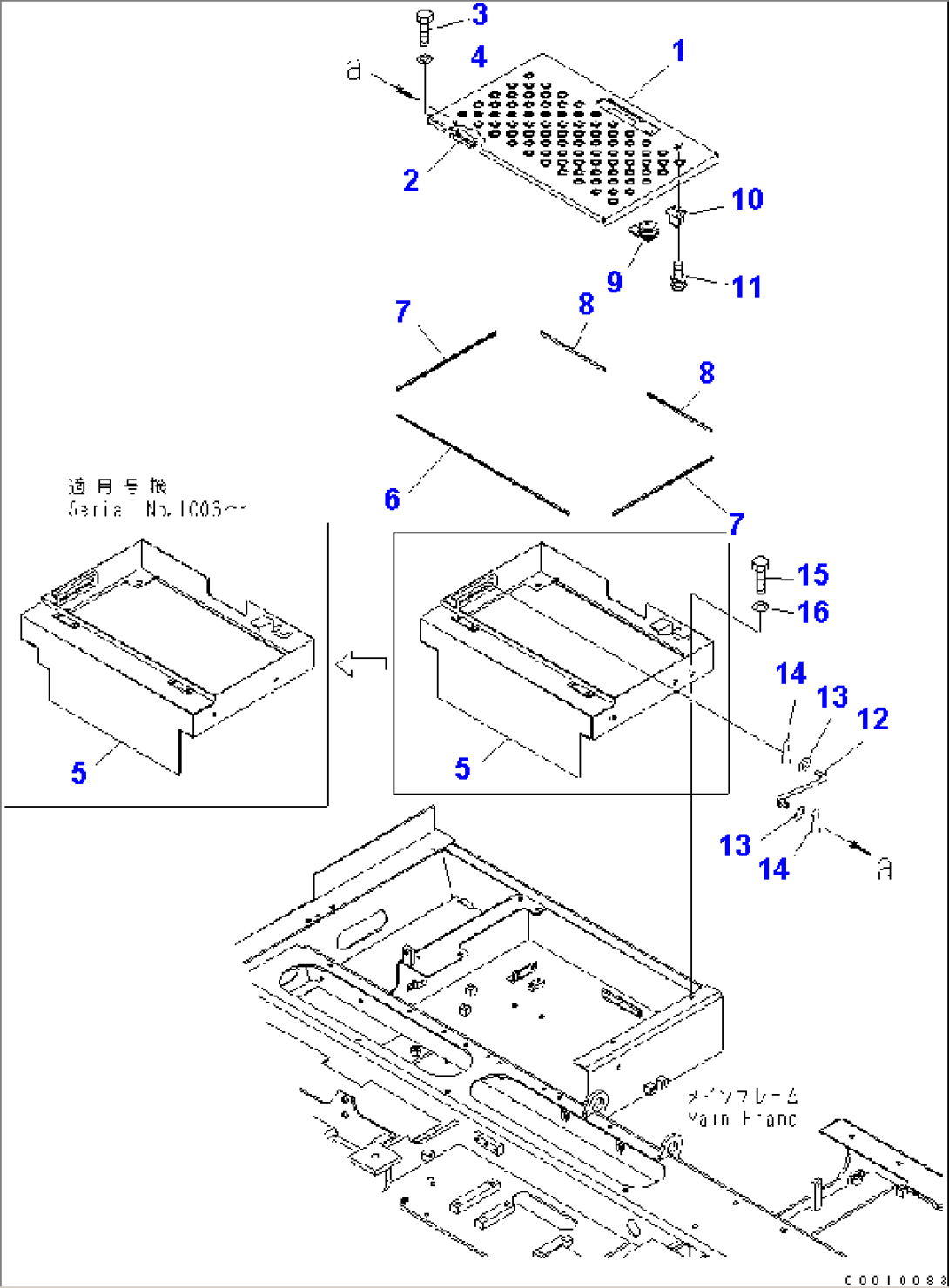

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-54-1321 | COVER | 1001- | |
| 2 | 20Y-54-29711 | HINGE | 1001- | |
| 3 | 01010-81020 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 8240-54-1332 | CASE | 1006- | |
| \0\8240-54-1331 | CASE | 1001-1005 | ||
| 6 | 8240-54-1450 | SEAL | 1001- | |
| 7 | 8240-54-1460 | SEAL | 1001- | |
| 8 | 8240-54-2340 | SEAL | 1001- | |
| 9 | 205-60-71220 | LOCK ASS'Y | 1001- | |
| 10 | 20R-54-11460 | SPRING | 1001- | |
| 11 | 01023-10510 | SCREW | 1001- | |
| 12 | 203-54-56630 | ROD | 1001- | |
| 13 | 01643-30623 | WASHER | 1001- | |
| 14 | 04050-11612 | PIN | 1001- | |
| 15 | 01010-81230 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- |
