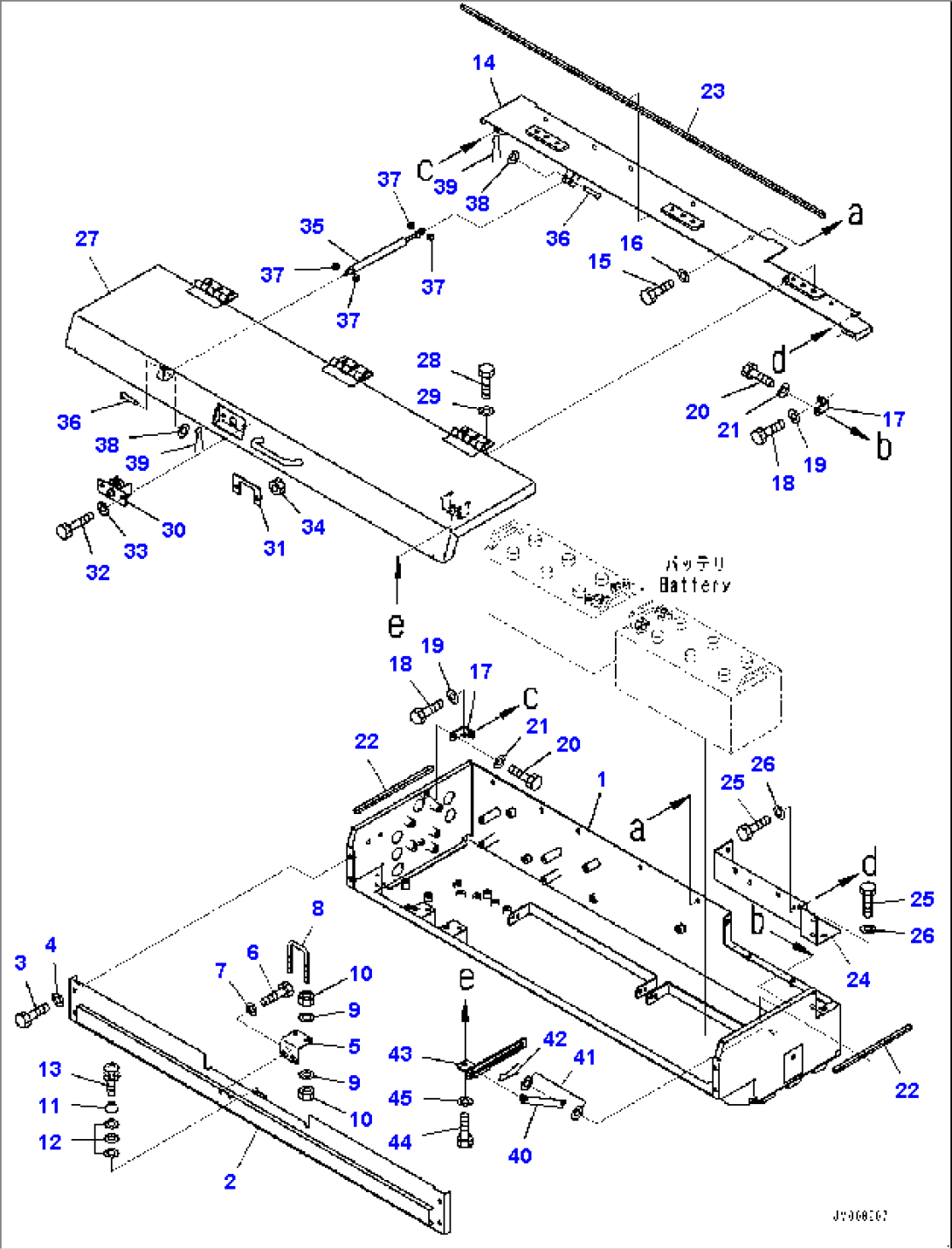

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-8M211 | Battery Case | 50001- | |
| 2 | 566-54-8M121 | Cover | 50001- | |
| 3 | 01010-81225 | Bolt | 50001- | |
| 4 | 01643-31232 | Washer | 50001- | |
| 5 | 566-54-8M171 | Plate | 50001- | |
| 6 | 01010-81225 | Bolt | 50001- | |
| 7 | 01643-31232 | Washer | 50001- | |
| 8 | 56D-54-12562 | Bolt | 50001- | |
| 9 | 01643-50823 | Washer | 50001- | |
| 10 | 01580-10806 | Nut | 50001- | |
| 11 | 421-926-2950 | Cushion | 50001- | |
| 12 | 01640-20610 | Washer | 50001- | |
| 13 | 01023-70416 | Screw | 50001- | |
| 14 | 566-54-8M131 | Cover | 50001- | |
| 15 | 01010-81225 | Bolt | 50001- | |
| 16 | 01643-31232 | Washer | 50001- | |
| 17 | 566-54-8P531 | Plate | 50001- | |
| 18 | 01010-81025 | Bolt | 50001- | |
| 19 | 01643-31032 | Washer | 50001- | |
| 20 | 01010-81020 | Bolt | 50001- | |
| 21 | 01643-31032 | Washer | 50001- | |
| 22 | 566-54-8M161 | Sheet | 50001- | |
| 23 | 566-54-8R270 | Seal | 50001- | |
| 24 | 566-54-8N211 | Bracket | 50001- | |
| 25 | 01010-81225 | Bolt | 50001- | |
| 26 | 01643-31232 | Washer | 50001- | |
| 27 | 566-54-8M141 | Cover | 50001- | |
| 419-06-11150 | Grip | 50001- | ||
| 561-54-81470 | Hinge | 50001- | ||
| 28 | 01010-81035 | Bolt | 50001- | |
| 29 | 01643-31032 | Washer | 50001- | |
| 30 | 21W-54-46280 | Lock Assembly | 50001- | |
| 31 | 56B-54-12A70 | Plate | 50001- | |
| 32 | 01010-81035 | Bolt | 50001- | |
| 33 | 01643-31032 | Washer | 50001- | |
| 34 | 01580-11008 | Nut | 50001- | |
| 35 | 419-54-31140 | Cylinder, Gas | 50001- | |
| 36 | 22D-43-12850 | Pin | 50001- | |
| 37 | 569-54-41180 | Collar | 50001- | |
| 38 | 01640-20816 | Washer | 50001- | |
| 39 | 04050-12015 | Pin, Cotter | 50001- | |
| 40 | 566-54-8P740 | Bar | 50001- | |
| 41 | 01640-20816 | Washer | 50001- | |
| 42 | 04050-12015 | Pin, Cotter | 50001- | |
| 43 | 566-54-8P681 | Plate | 50001- | |
| 44 | 01010-81230 | Bolt | 50001- | |
| 45 | 01643-31232 | Washer | 50001- |
