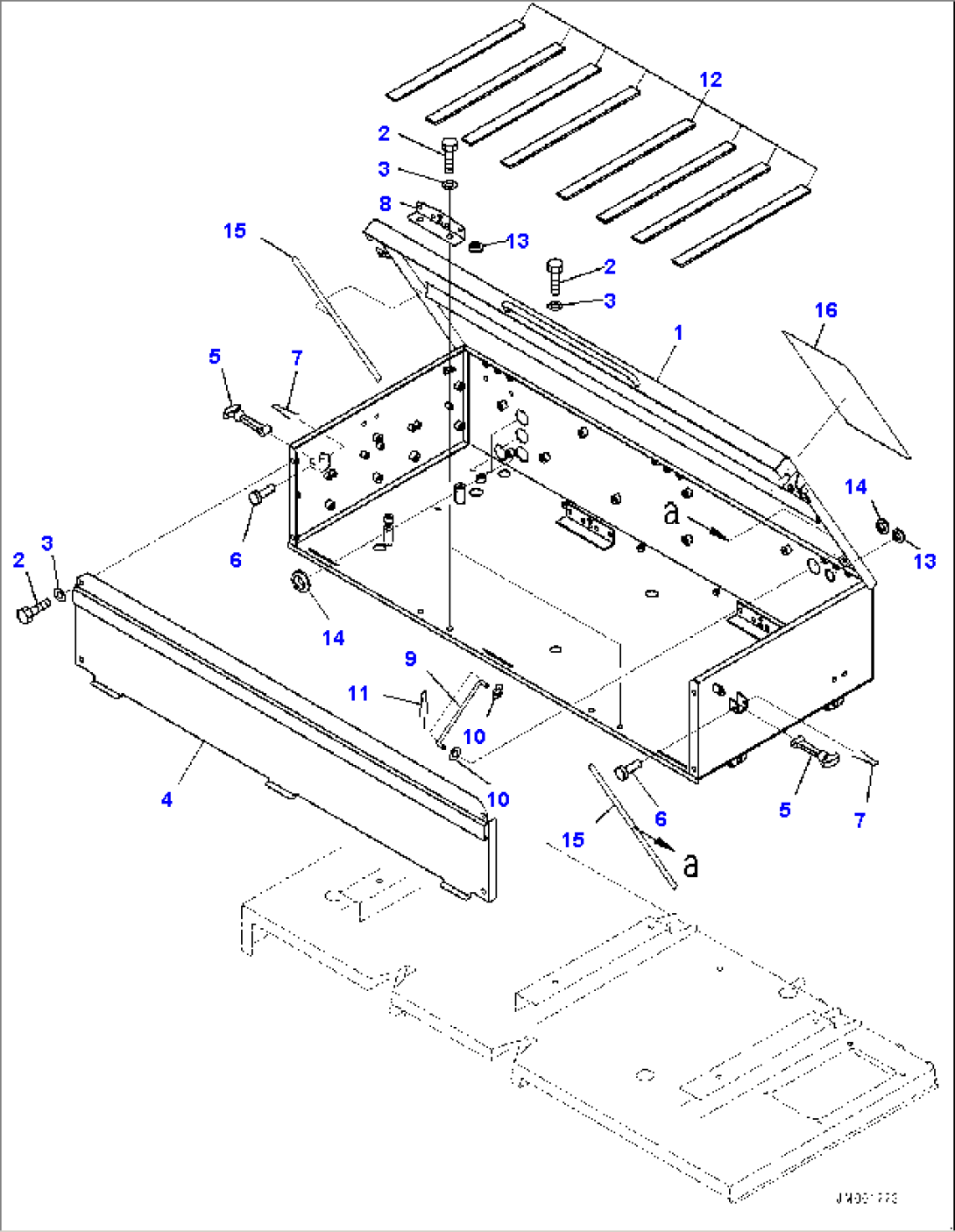

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-88150 | Battery Case Assembly | 8832- | |
| 561-54-81470 | Hinge | 8832- | ||
| 2 | 01010-81225 | Bolt | 8832- | |
| 3 | 01643-31232 | Washer | 8832- | |
| 4 | 561-54-81660 | Cover | 8832- | |
| 5 | 09450-00000 | Catcher | 8832- | |
| 6 | 09450-00002 | Pin | 8832- | |
| 7 | 04050-11610 | Pin, Cotter | 8832- | |
| 8 | 561-54-81481 | Angle | 8832- | |
| 9 | 569-54-61480 | Rod | 8832- | |
| 10 | 01643-31032 | Washer | 8832- | |
| 11 | 04050-13020 | Pin, Cotter | 8832- | |
| 12 | 08007-23549 | Cushion, Battery | 8832- | |
| 13 | 08037-02512 | Grommet | 8832- | |
| 14 | 08037-03614 | Grommet | 8832- | |
| 15 | 566-54-8A940 | Sheet | 8832- | |
| 16 | 569-54-64460 | Rubber | 8832- |
