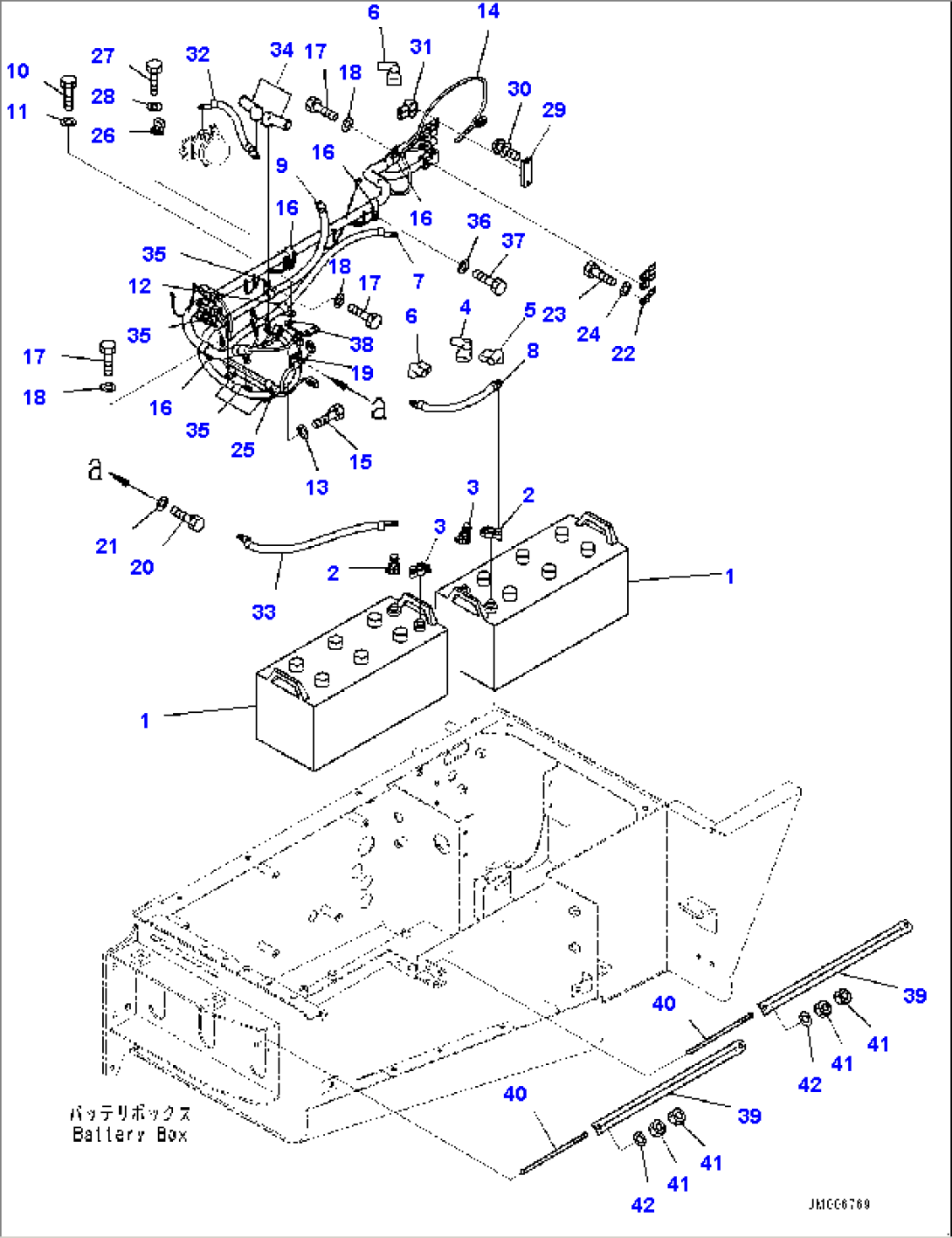

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-02221 | Battery, Wet, C200 | 5127- | |
| 2 | 08000-00020 | Terminal, (+) | 5127- | |
| 3 | 08000-00021 | Terminal, (-) | 5127- | |
| 4 | 424-09-12540 | Boot | 5127- | |
| 5 | 56B-06-11220 | Cap | 5127- | |
| 6 | 56B-06-11210 | Cap | 5127- | |
| 7 | 56B-06-34310 | Cable | 5127- | |
| 8 | 08028-65030 | Cable | 5127- | |
| 9 | 56B-06-34540 | Cable | 5127- | |
| 10 | 01010-81020 | Bolt | 5127- | |
| 11 | 01643-31032 | Washer | 5127- | |
| 12 | 04434-51810 | Clip | 5127- | |
| 13 | 203-54-56970 | Washer | 5127- | |
| 14 | 56B-06-37183 | Wiring Harness | 5137- | |
| 14 | 56B-06-37182 | Wiring Harness | 5127-5136 | |
| 15 | 01010-81020 | Bolt | 5127- | |
| 16 | 04434-52310 | Clip | 5127- | |
| 17 | 01010-81020 | Bolt | 5127- | |
| 18 | 01643-31032 | Washer | 5127- | |
| 19 | 04434-51010 | Clip | 5127- | |
| 20 | 01010-81020 | Bolt | 5127- | |
| 21 | 01643-31032 | Washer | 5127- | |
| 22 | 08193-21012 | Clip | 5127- | |
| 23 | 01010-81016 | Bolt | 5127- | |
| 24 | 01643-31032 | Washer | 5127- | |
| 25 | 04434-51410 | Clip | 5127- | |
| 26 | 561-06-85710 | Fuse Assembly | 5127- | |
| 08041-01500 | Fuse, 15Amp. | 5127- | ||
| 425-06-11330 | Retainer | 5127- | ||
| 27 | 01010-80616 | Bolt | 5127- | |
| 28 | 01643-30623 | Washer | 5127- | |
| 29 | 566-06-13790 | Block | 5127- | |
| 30 | 01023-20620 | Screw | 5127- | |
| 31 | 08038-02027 | Cap | 5127- | |
| 32 | 08028-65025 | Cable | 5127- | |
| 33 | 08028-65055 | Cable, Battery | 5137- | |
| 33 | 08028-65050 | Cable | 5127-5136 | |
| 34 | 08038-00035 | Cap, Terminal | 5127- | |
| 35 | 04434-51810 | Clip | 5127- | |
| 36 | 203-54-56970 | Washer | 5127- | |
| 37 | 01010-81020 | Bolt | 5127- | |
| 38 | 56B-06-34390 | Plate | 5127- | |
| 39 | 56D-06-31220 | Holder | 5127- | |
| 40 | 565-56-12440 | Rod | 5127- | |
| 41 | 01580-11008 | Nut | 5127- | |
| 42 | 01643-31032 | Washer | 5127- |
