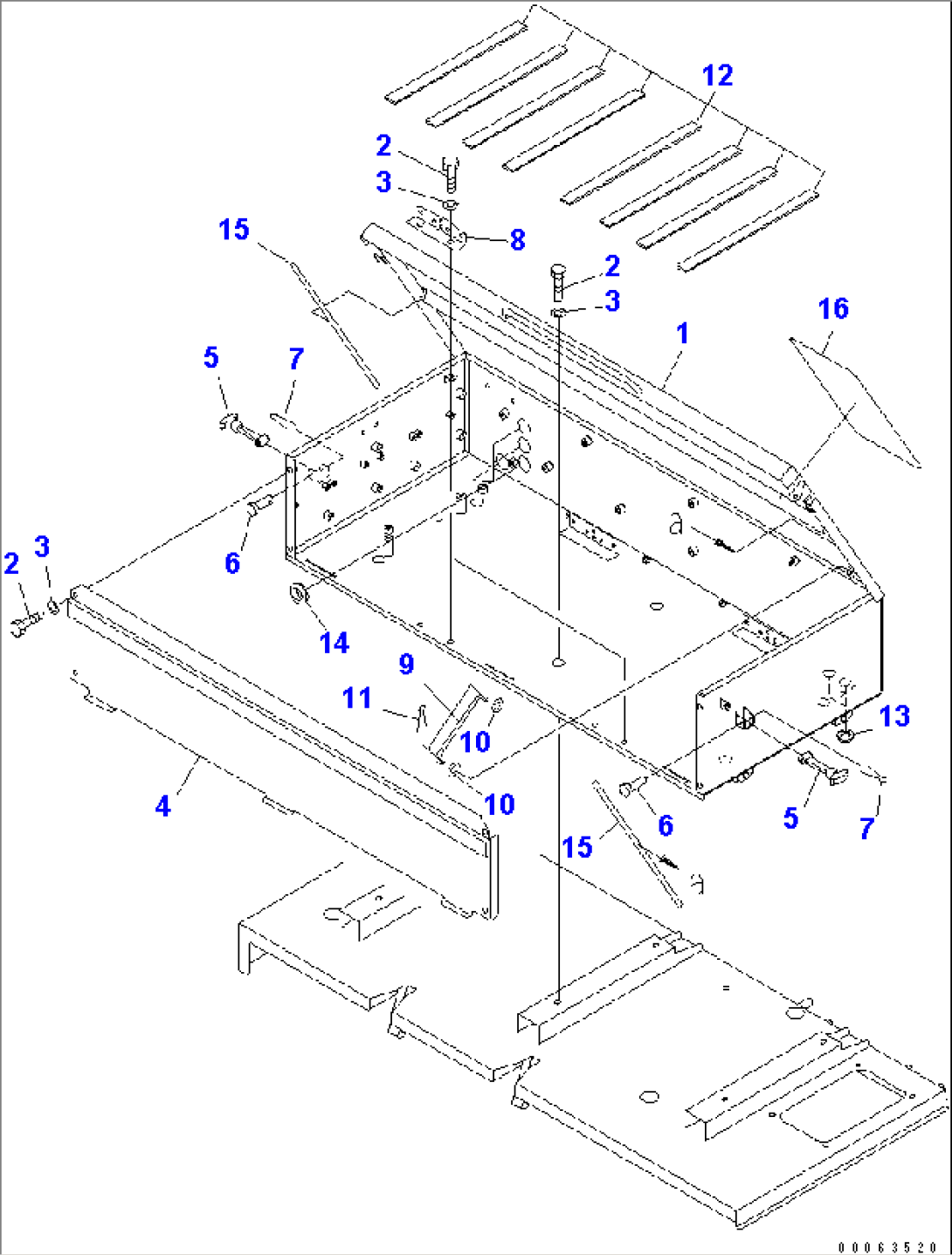

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-81950 | BOX | 7169- | |
| 2 | 01010-81225 | BOLT | 7169- | |
| 3 | 01643-31232 | WASHER | 7169- | |
| 4 | 561-54-81660 | COVER | 7169- | |
| 5 | 09450-00000 | CATCH | 7169- | |
| 6 | 09450-00002 | PIN | 7169- | |
| 7 | 04050-11610 | PIN | 7169- | |
| 8 | 561-54-81481 | ANGLE | 7169- | |
| 9 | 569-54-61480 | ROD | 7169- | |
| 10 | 01643-31032 | WASHER | 7169- | |
| 11 | 04050-13020 | PIN | 7169- | |
| 12 | 08007-23549 | CUSHION | 7169- | |
| 13 | 08037-02512 | GROMMET | 7169- | |
| 14 | 08037-03614 | GROMMET | 7169- | |
| 15 | 566-54-8A940 | SHEET | 7169- | |
| 16 | 569-54-64460 | RUBBER | 7169- |
