| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-44250 | COVER,L.H. | 85001- | |
| 2 | 01010-D1020 | BOLT | 85001- | |
| 3 | 01643-71032 | WASHER | 85001- | |
| 4 | 421-06-44260 | COVER,R.H. | 85001- | |
| 5 | 01010-D1020 | BOLT | 85001- | |
| 6 | 01643-71032 | WASHER | 85001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 85001 90215 (ecot3)
- Electrical system
- Battery box (cover)(#85001 )
Поиск по каталогу

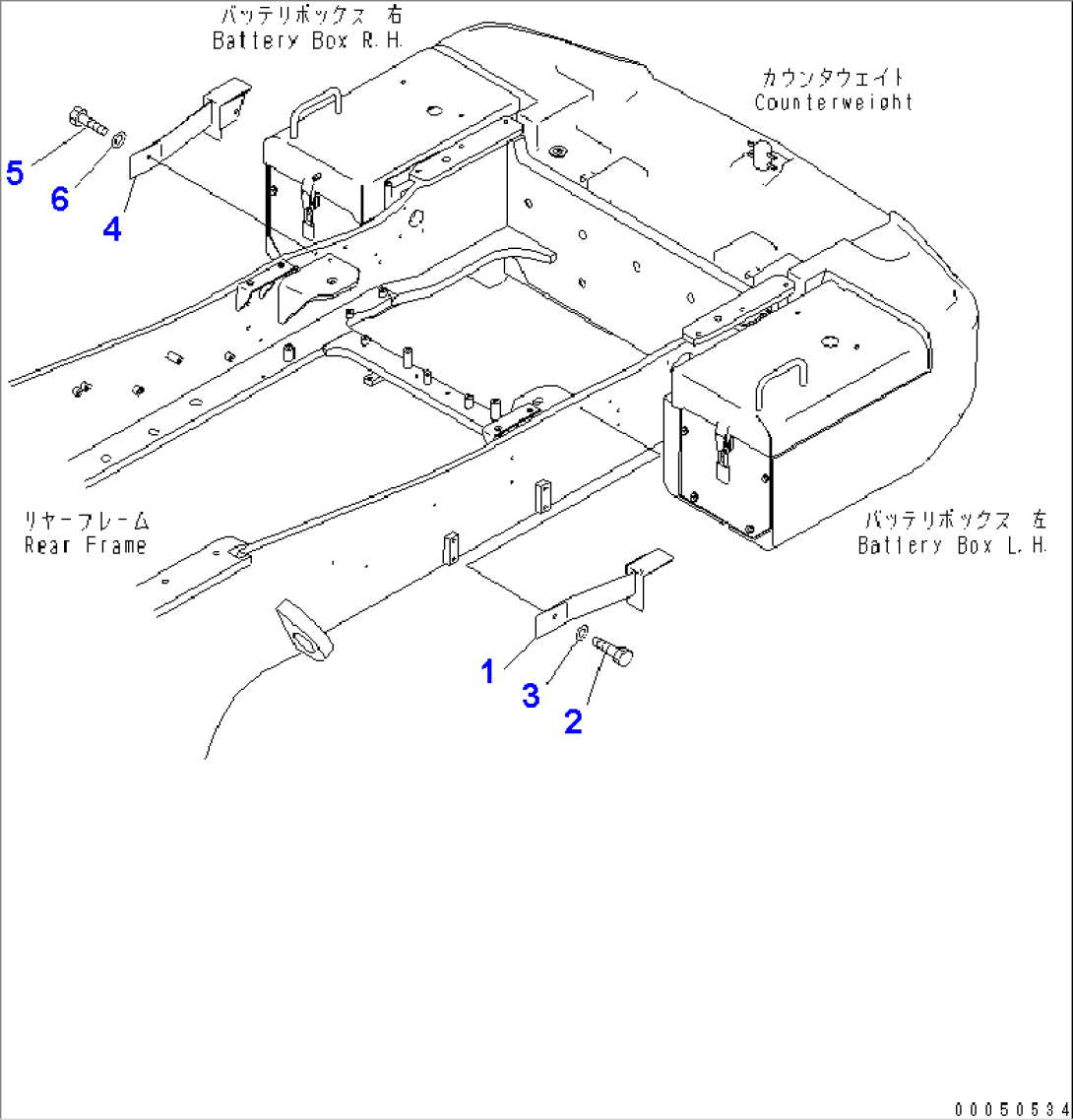

BATTERY BOX (COVER)(#85001-)
