| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81020 | BOLT | 70028- | |
| 2 | 01643-31032 | WASHER | 70028- | |
| 3 | 01010-81020 | BOLT | 70028- | |
| 4 | 01643-31032 | WASHER | 70028- | |
| 5 | 23S-05-25221 | SWITCH | 70028- | |
| 6 | 08504-10000 | CAP | 70028- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa800 3e0 s/n 70001 70029 (tier2) (for north america)
- Electrical sytem
- Battery box¤ l.h. (harness mounting parts) (reinforced type harness)(#70028 )
Поиск по каталогу

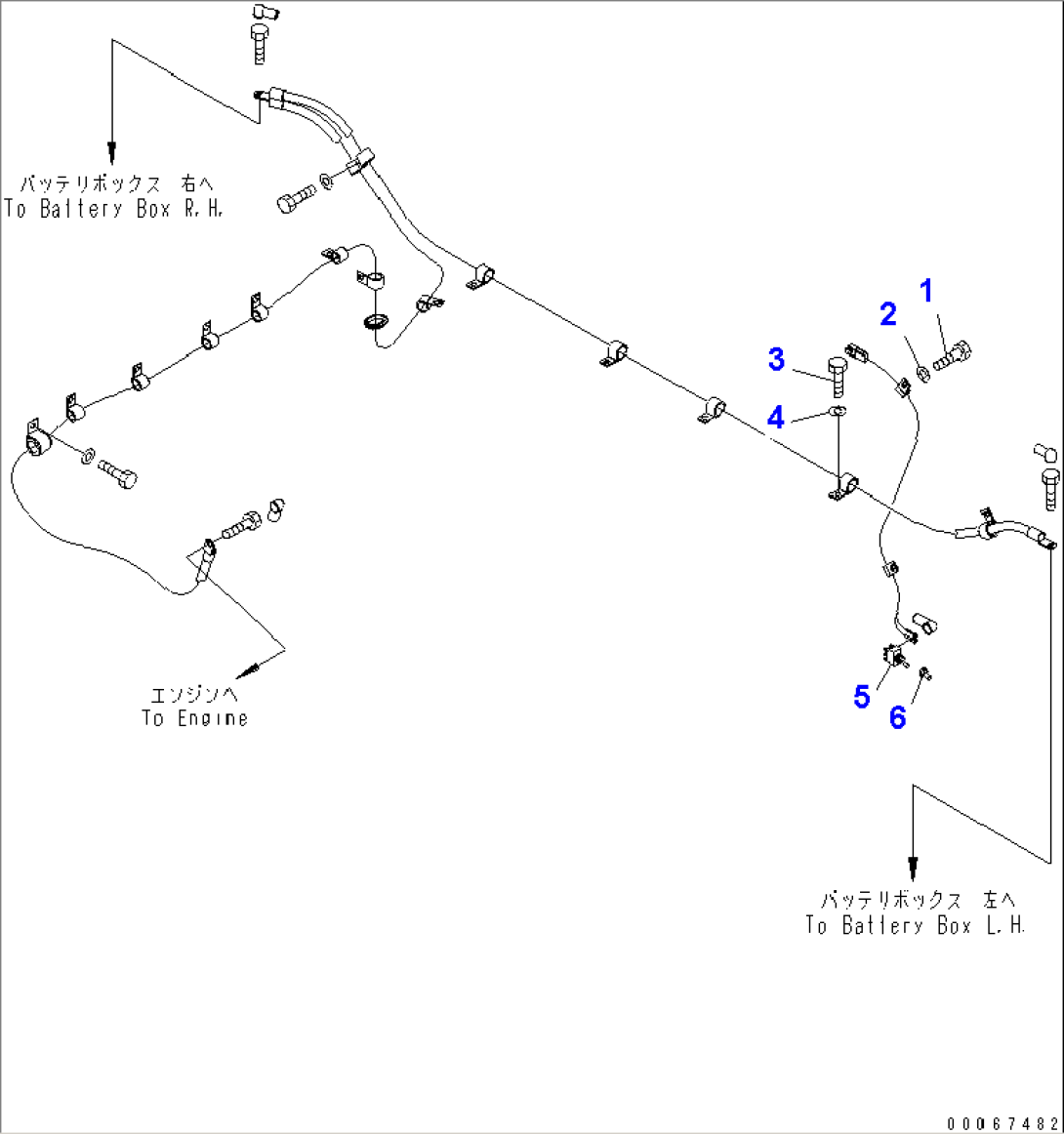

BATTERY BOX¤ L.H. (HARNESS MOUNTING PARTS) (REINFORCED TYPE HARNESS)(#70028-)
