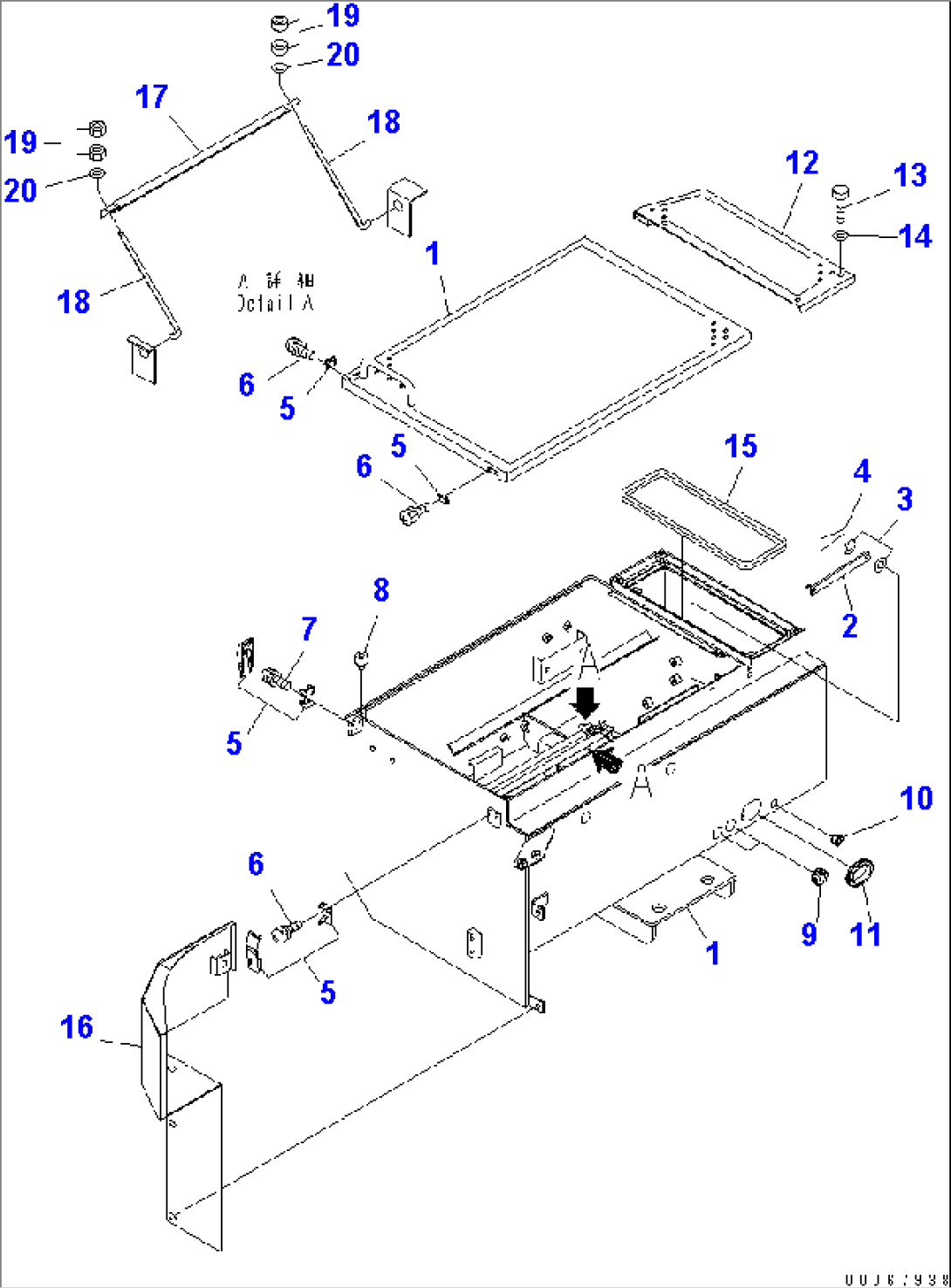

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-Z89-3320 | BATTERY BOX ASS'Y | 60002- | ||
| 1 | 427-Z89-3340 | BATTERY BOX | 60002- | |
| 2 | 421-06-24230 | BAR | 60002- | |
| 3 | 01640-20816 | WASHER | 60002- | |
| 4 | 04050-12015 | PIN | 60002- | |
| 5 | 421-09-12322 | HOLDER | 60002- | |
| 6 | 01023-60410 | SCREW | 60002- | |
| 7 | 01023-60416 | SCREW | 60002- | |
| 8 | 415-54-11980 | CUSHION | 60002- | |
| 9 | 201-43-28440 | GROMMET | 60002- | |
| 10 | 565-06-12710 | GROMMET | 60002- | |
| 11 | 426-09-11230 | GROMMET | 60002- | |
| 12 | 427-Z89-3360 | COVER | 60002- | |
| 13 | 01010-D1025 | BOLT | 60002- | |
| 14 | 01643-71032 | WASHER | 60002- | |
| 15 | 427-Z89-3290 | SEAL | 60002- | |
| 16 | 427-06-24462 | COVER | 60002- | |
| 17 | 421-06-11221 | HOLDER | 60002- | |
| 18 | 113-06-31120 | BOLT | 60002- | |
| 19 | 01580-11008 | NUT | 60002- | |
| 20 | 01643-31032 | WASHER | 60002- |
