| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 281-06-14170 | CLAMP | 7169- | |
| 2 | 281-06-14161 | ROD | 7169- | |
| 3 | 01643-31032 | WASHER | 7169- | |
| 4 | 01580-11008 | NUT | 7169- | |
| 5 | 421-06-11221 | HOLDER | 7169- | |
| 6 | 565-56-12440 | ROD | 7169- | |
| 7 | 01643-31032 | WASHER | 7169- | |
| 8 | 01580-11008 | NUT | 7169- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Electrical system
- Battery box (stay)(#7169 )
Поиск по каталогу

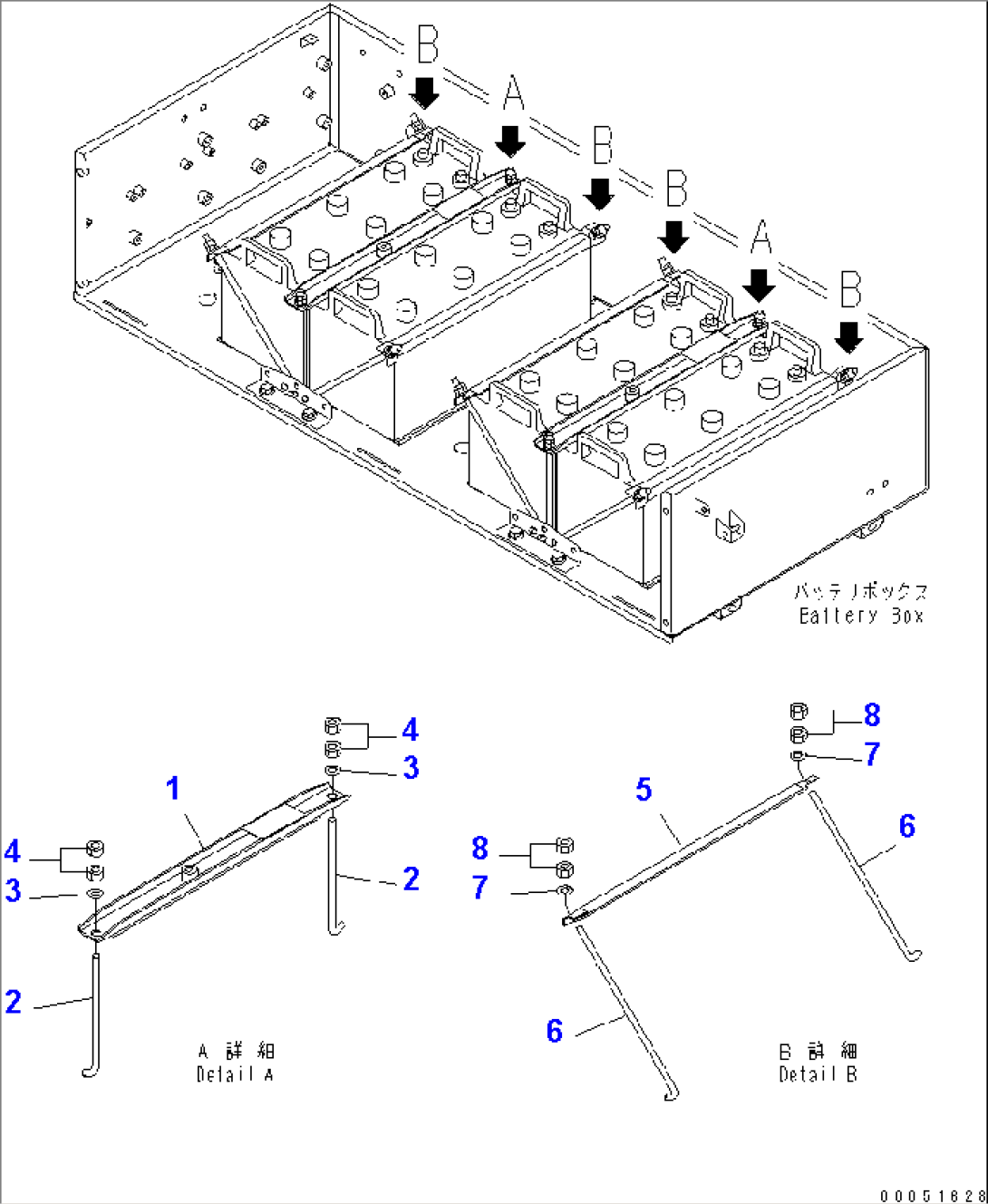

BATTERY BOX (STAY)(#7169-)
