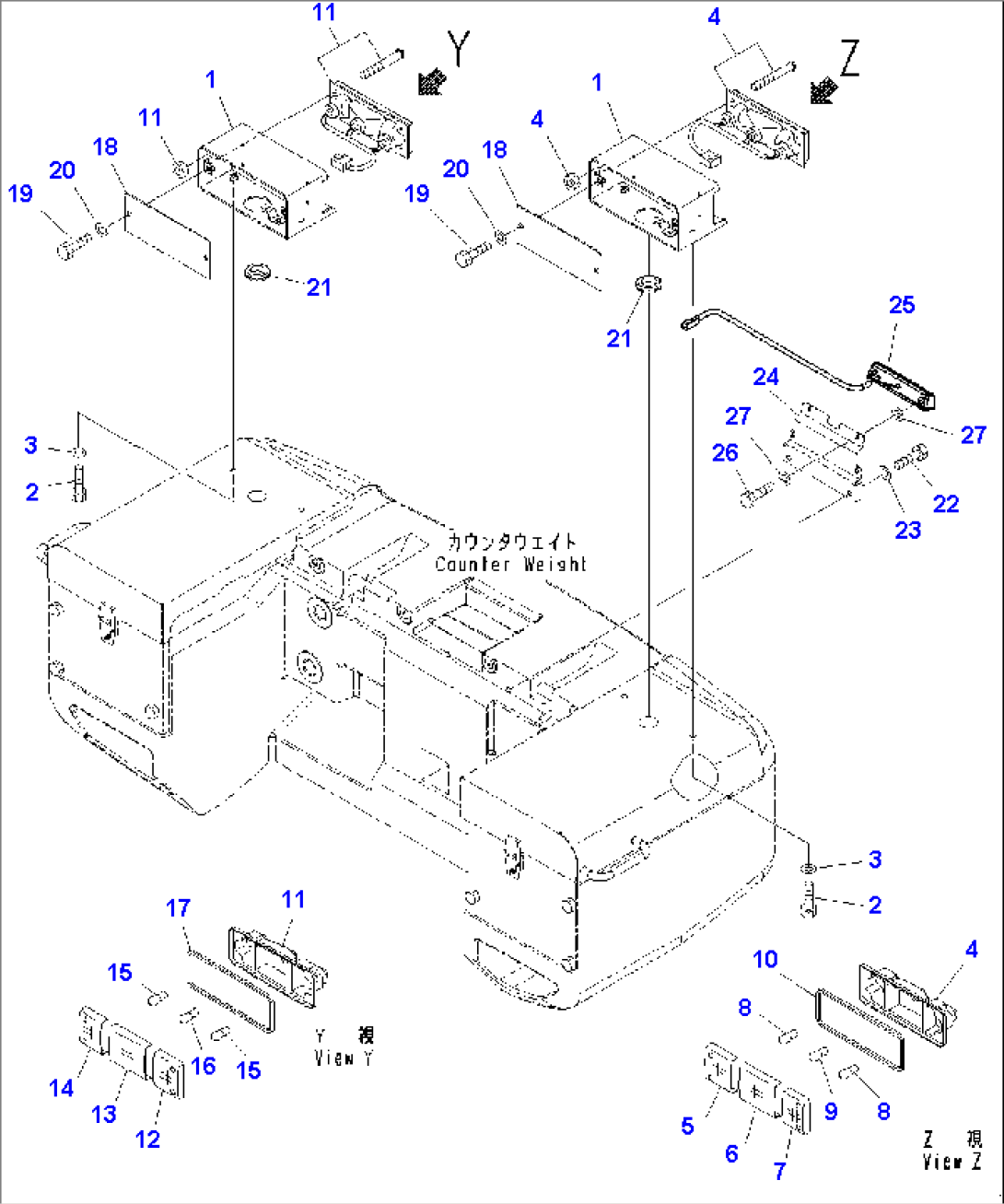

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-41540 | Bracket | B20001- | |
| 2 | 01010-D1020 | Bolt | B20001- | |
| 3 | 01643-71032 | Washer | B20001- | |
| 4 | 424-06-43231 | Lamp, L.H. | B20001- | |
| 5 | 23A-06-21410 | Lens, Amber, Turn Signal | B20001- | |
| 6 | 424-06-43310 | Lens, Red, Tail And Stop | B20001- | |
| 7 | 23A-06-21430 | Lens, Clear, Back-up | B20001- | |
| 8 | 424-06-43330 | Bulb, 21watt | B20001- | |
| 9 | 424-06-43340 | Bulb, 21/5watt | B20001- | |
| 10 | 23A-06-21440 | Gasket | B20001- | |
| 11 | 424-06-43241 | Lamp, R.H. | B20001- | |
| 12 | 23A-06-21510 | Lens, Amber, Turn Signal | B20001- | |
| 13 | 424-06-43320 | Lens, Red, Tail And Stop | B20001- | |
| 14 | 23A-06-21530 | Lens, Clear, Back-up | B20001- | |
| 15 | 424-06-43330 | Bulb, 21watt | B20001- | |
| 16 | 424-06-43340 | Bulb, 21/5watt | B20001- | |
| 17 | 23A-06-21440 | Gasket | B20001- | |
| 18 | 419-06-23420 | Plate | B20001- | |
| 19 | 01010-D1020 | Bolt | B20001- | |
| 20 | 01643-71032 | Washer | B20001- | |
| 21 | 08037-03614 | Grommet | B20001- | |
| 22 | 01010-81020 | Bolt | B20001- | |
| 23 | 01643-31032 | Washer | B20001- | |
| 24 | 418-06-B1140 | Bracket | B20001- | |
| 25 | 418/-06-31221 | Lamp | B20001- | |
| 26 | 01023-10516 | Screw | B20001- | |
| 27 | 01643-30623 | Washer | B20001- |
