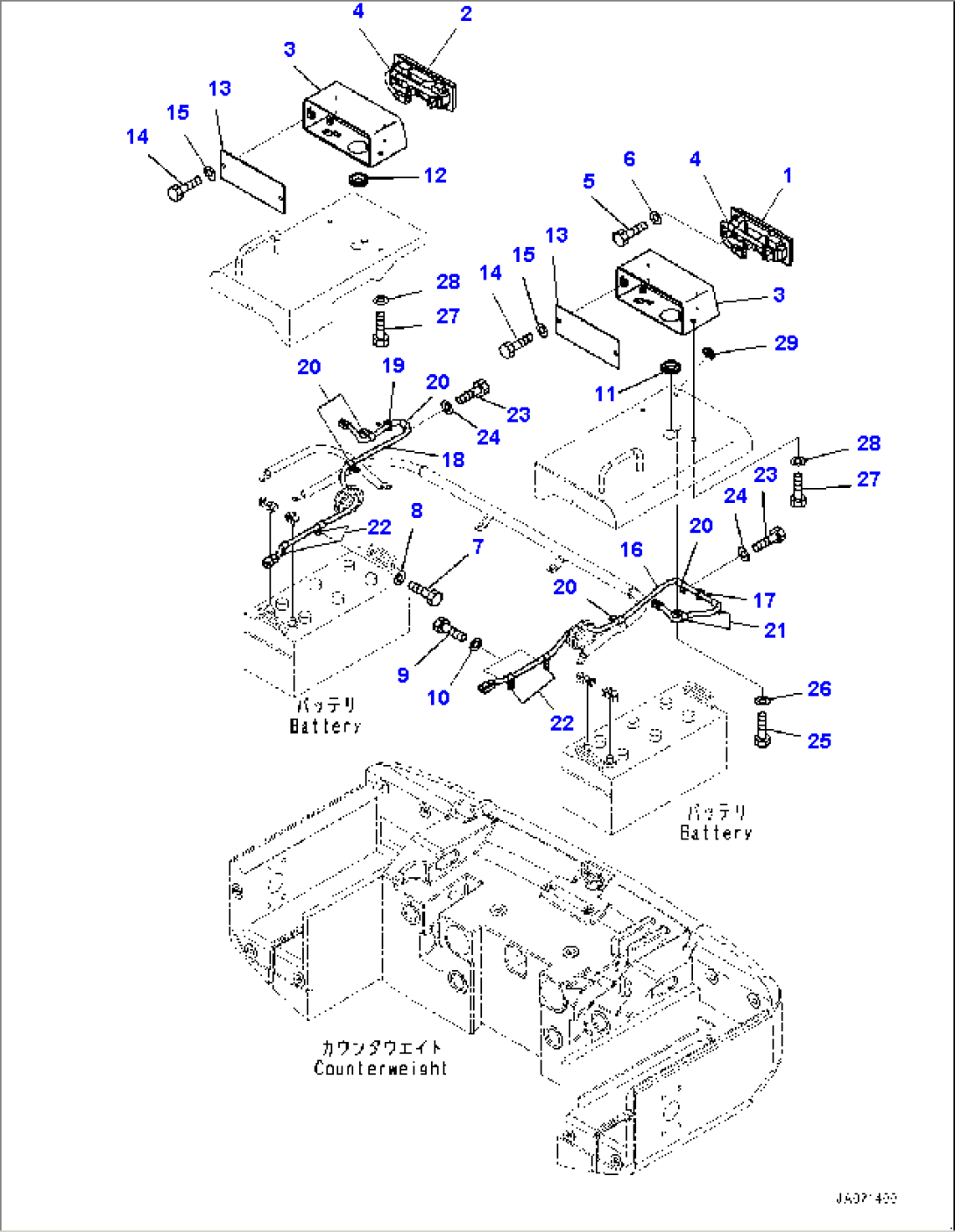

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-43231 | Lamp | 65949- | |
| 1 | 23A-06-21410 | Lens, Amber, Turn Signal | 65949- | |
| 1 | 424-06-43310 | Lens, Red, Tail And Stop | 65949- | |
| 1 | 23A-06-21430 | Lens, Clear, Back-up | 65949- | |
| 1 | 424-06-43330 | Bulb, 21watt | 65949- | |
| 1 | 424-06-43340 | Bulb, 21/5watt | 65949- | |
| 1 | 23A-06-21440 | Gasket | 65949- | |
| 2 | 424-06-43241 | Lamp | 65949- | |
| 2 | 23A-06-21510 | Lens, Amber, Turn Signal | 65949- | |
| 2 | 424-06-43320 | Lens, Red, Tail And Stop | 65949- | |
| 2 | 23A-06-21530 | Lens, Clear, Back-up | 65949- | |
| 2 | 424-06-43330 | Bulb, 21watt | 65949- | |
| 2 | 424-06-43340 | Bulb, 21/5watt | 65949- | |
| 2 | 23A-06-21440 | Gasket | 65949- | |
| 3 | 423-06-44260 | Bracket | 65949- | |
| 4 | 04434-51412 | Clip | 65949- | |
| 5 | 01010-81020 | Bolt | 65949- | |
| 6 | 01643-31032 | Washer | 65949- | |
| 7 | 01010-D1020 | Bolt | 65949- | |
| 8 | 01643-71032 | Washer | 65949- | |
| 9 | 01010-D1020 | Bolt | 65949- | |
| 10 | 01643-71032 | Washer | 65949- | |
| 11 | 08037-03614 | Grommet | 65949- | |
| 12 | 08037-03614 | Grommet | 65949- | |
| 13 | 419-06-23420 | Plate | 65949- | |
| 14 | 01010-D1020 | Bolt | 65949- | |
| 15 | 01643-71032 | Washer | 65949- | |
| 16 | 423-06-41210 | Wiring Harness | 65949- | |
| 17 | 08034-00414 | Band | 65949- | |
| 18 | 423-06-41220 | Wiring Harness | 65949- | |
| 19 | 08034-00414 | Band | 65949- | |
| 20 | 04434-51412 | Clip | 65949- | |
| 21 | 04434-51412 | Clip | 65949- | |
| 22 | 04434-51412 | Clip | 65949- | |
| 23 | 01010-81020 | Bolt | 65949- | |
| 24 | 01643-31032 | Washer | 65949- | |
| 25 | 01010-81020 | Bolt | 65949- | |
| 26 | 01643-31032 | Washer | 65949- | |
| 27 | 01010-D1025 | Bolt | 65949- | |
| 28 | 01643-71032 | Washer | 65949- | |
| 29 | 09415-01008 | Cap | 65949- |
