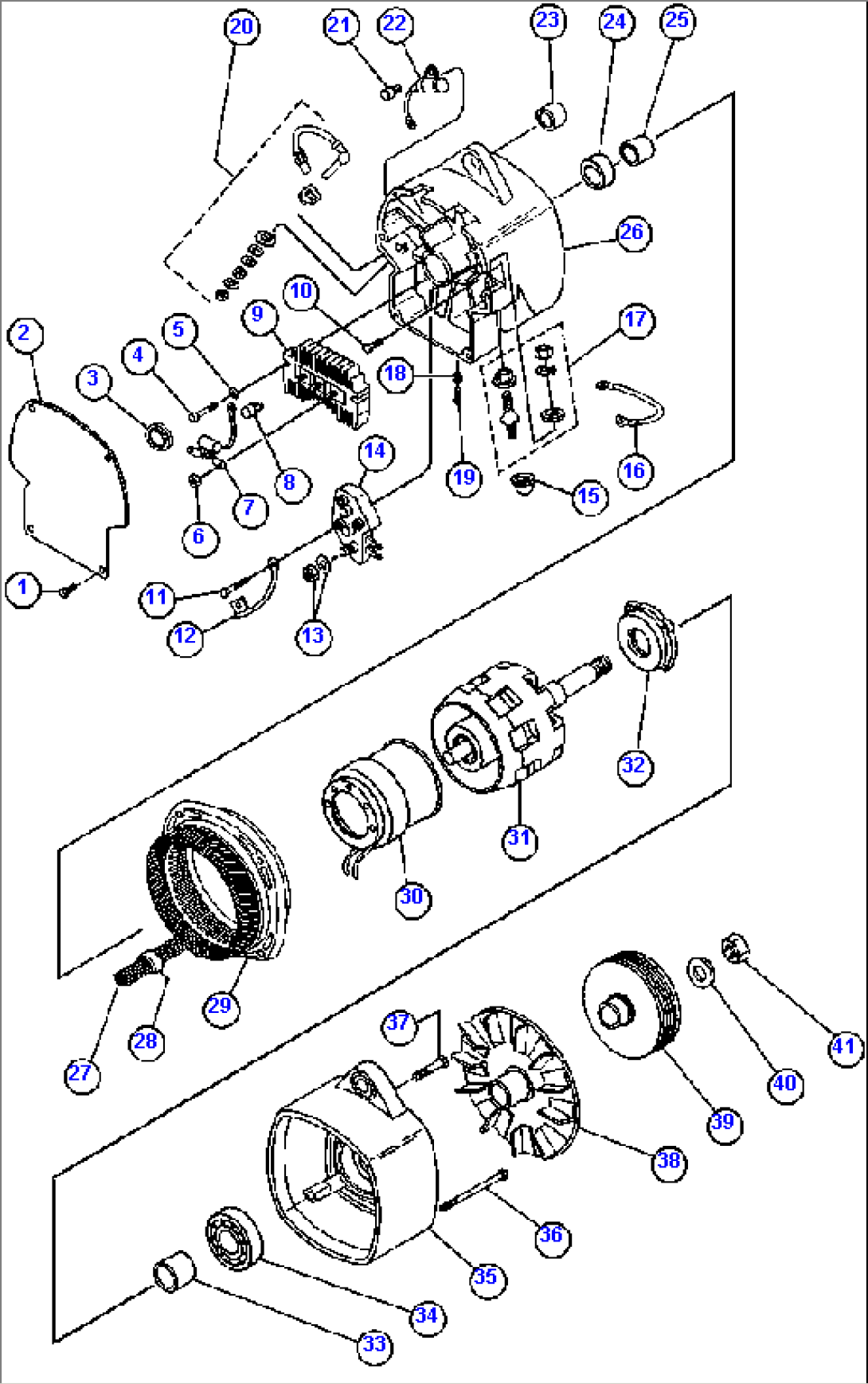

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1268363H1 | SCREW | ||
| 2 | 1285725H1 | PLATE | ||
| 3 | VE8216 | PLUG (1) | ||
| 4 | VE8209 | SCREW | ||
| 5 | VE8210 | WASHER | ||
| 6 | VE8206 | NUT | ||
| 7 | 1285727H1 | DIODE | ||
| 8 | 1268364H1 | SCREW | ||
| 9 | VE8202 | BRIDGE, RECTIFIER | ||
| 10 | VE8208 | SCREW | ||
| 11 | 1268367H1 | SCREW | ||
| 12 | 1285729H1 | CONNECTOR | ||
| 13 | VE8206 | NUT | ||
| 14 | 1218115H1 | REGULATOR | ||
| 15 | 1213274H1 | CAP | ||
| 16 | 1285728H1 | CONNECTOR | ||
| 17 | 1213256H1 | TERMINAL, RELAY PACKAGE | ||
| 18 | VE8205 | LOCKWASHER | ||
| 19 | VE8204 | SCREW | ||
| 20 | 1285730H1 | TERMINAL, OUTPUT PACKAGE | ||
| 21 | 1268364H1 | SCREW | ||
| 22 | VE8203 | CAPACITOR | ||
| 23 | 1213242H1 | BUSHING (1) | ||
| 24 | VE0204 | BEARING (1) | ||
| 25 | VE0206 | BEARING | ||
| 26 | 1285726H1 | HOUSING | ||
| 27 | VE8213 | STATOR, LEADS (2) | ||
| 28 | VE8215 | GROMMET (2) | ||
| 29 | 1285732H1 | STATOR | ||
| 30 | 1285734H1 | COIL | ||
| 31 | 1213254H1 | ROTOR | ||
| 32 | 1285736H1 | RETAINER WITH SEAL | ||
| 33 | 1285737H1 | COLLAR | ||
| 34 | 1213268H1 | BEARING | ||
| 35 | VE8201 | HOUSING, DRIVE END | ||
| 36 | VE8212 | THRU BOLT | ||
| 37 | 1285739H1 | SCREW | ||
| 38 | 1285738H1 | FAN, ALTERNATOR | ||
| 39 | PULLEY, DRIVE (3) | |||
| 40 | VE8211 | WASHER | ||
| 41 | VE8207 | NUT | ||
| NS|42 | NOTE: (1) INCLUDED IN ITEM 26, 1285726H1 HOUSING. | |||
| NS|43 | (2) INCLUDED IN ITEM 29, 1285732H1 STATOR. | |||
| NS|44 | (3) SUPPLIED WITH ENGINE. |
