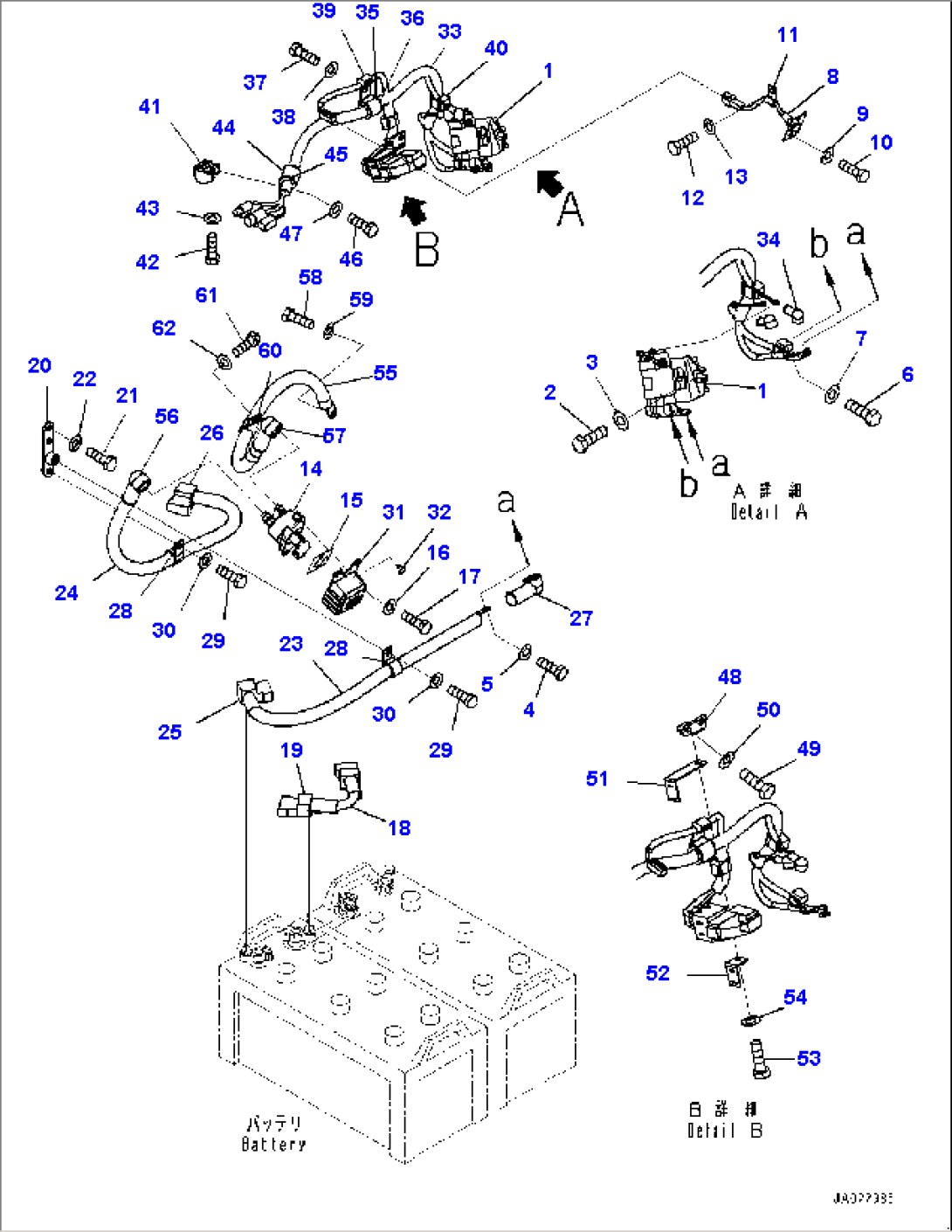

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08088-30000 | Switch, Battery Relay | 30001-31943 | |
| 2 | 01010-80825 | Bolt | 30001-@ | |
| 3 | 01643-30823 | Washer | 30001-@ | |
| 4 | 01010-80820 | Bolt | 30001-@ | |
| 5 | 01643-30823 | Washer | 30001-@ | |
| 6 | 01010-80820 | Bolt | 30001-@ | |
| 7 | 01643-30823 | Washer | 30001-@ | |
| 8 | 08155-02400 | Lamp | 30001-@ | |
| 9 | 01643-70823 | Washer | 30001-@ | |
| 10 | 01252-B0825 | Bolt, Hexagon Socket Head | 30001-@ | |
| 11 | 04434-50610 | Clip | 30001-@ | |
| 12 | 01010-81020 | Bolt | 30001-@ | |
| 13 | 01643-31032 | Washer | 30001-@ | |
| 14 | 08068-00001 | Switch, Battery | 30001-@ | |
| 15 | 09697-00001 | Plate, Battery Disconnect Switch | 30001-@ | |
| 16 | 01643-30823 | Washer | 30001-@ | |
| 17 | 01252-A0825 | Bolt, Hexagon Socket Head | 30001-@ | |
| 18 | 08028-64005 | Cable, Ground | 30001-@ | |
| 19 | 08038-42511 | Cap | 30001-@ | |
| 20 | 13Y-06-13270 | Bracket | 30001-@ | |
| 21 | 01010-81020 | Bolt | 30001-@ | |
| 22 | 01643-31032 | Washer | 30001-@ | |
| 23 | 08028-GD065 | Cable, Battery | 30001-@ | |
| 24 | 08028-ED070 | Cable, Ground | 30001-@ | |
| 25 | 14X-06-12280 | Cover | 30001-@ | |
| 26 | 14X-06-12270 | Cover | 30001-@ | |
| 27 | 11Y-06-11630 | Cap | 30001-@ | |
| 28 | 04434-52310 | Clip | 30001-@ | |
| 29 | 01010-81020 | Bolt | 30001-@ | |
| 30 | 01643-31032 | Washer | 30001-@ | |
| 31 | 2A5-06-11960 | Cap | 30001-@ | |
| 32 | 20T-54-74510 | Cap | 30001-@ | |
| 33 | 13Y-06-11866 | Wiring Harness | 30001-@ | |
| 34 | 08038-00519 | Cap, Terminal | 30001-@ | |
| 35 | 04434-52711 | Clip | 30001-@ | |
| 36 | 07095-20418 | Cushion | 30001-@ | |
| 37 | 01010-81020 | Bolt | 30001-@ | |
| 38 | 01643-31032 | Washer | 30001-@ | |
| 39 | 08211-00720 | Clip | 30001-@ | |
| 40 | 08211-01520 | Clip | 30001-@ | |
| 41 | 13Y-06-11151 | Bracket | 30001-@ | |
| 42 | 01010-81025 | Bolt | 30001-@ | |
| 43 | 01643-31032 | Washer | 30001-@ | |
| 44 | 04434-52711 | Clip | 30001-@ | |
| 45 | 07095-20418 | Cushion | 30001-@ | |
| 46 | 01010-81025 | Bolt | 30001-@ | |
| 47 | 01643-31032 | Washer | 30001-@ | |
| 48 | 11Y-06-41950 | Bracket | 30001-@ | |
| 49 | 01010-81025 | Bolt | 30001-@ | |
| 50 | 01643-31032 | Washer | 30001-@ | |
| 51 | 421-06-22920 | Bracket | 30001-@ | |
| 52 | 421-06-22910 | Bracket | 30001-@ | |
| 53 | 01010-80820 | Bolt | 30001-@ | |
| 54 | 01643-30823 | Washer | 30001-@ | |
| 55 | 13Y-06-11880 | Cable | 30001-@ | |
| 56 | 08038-00035 | Cap, Terminal | 30617-@ | |
| 57 | 08038-00035 | Cap, Terminal | 30617-@ | |
| 58 | 01010-81020 | Bolt | 30001-@ | |
| 59 | 01643-31032 | Washer | 30001-@ | |
| 60 | 04434-52310 | Clip | 30001-@ | |
| 61 | 01010-81025 | Bolt | 30001-@ | |
| 62 | 01643-31032 | Washer | 30001-@ |
