| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-1221Z | BATTERY (105E41R) | 10001-11999 | |
| 2 | 415-Z28-1120 | SHEET | 10001-11999 | |
| 3 | 415-Z28-1110 | HOLDER | 10001-11999 | |
| 4 | 01010-51225 | BOLT | 10001-11999 | |
| 5 | 01643-31232 | WASHER | 10001-11999 |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa70 1 s/n 10001 up
- Engine related parts and electrical system
- Battery (large capacity)(#10001 11999)
Поиск по каталогу

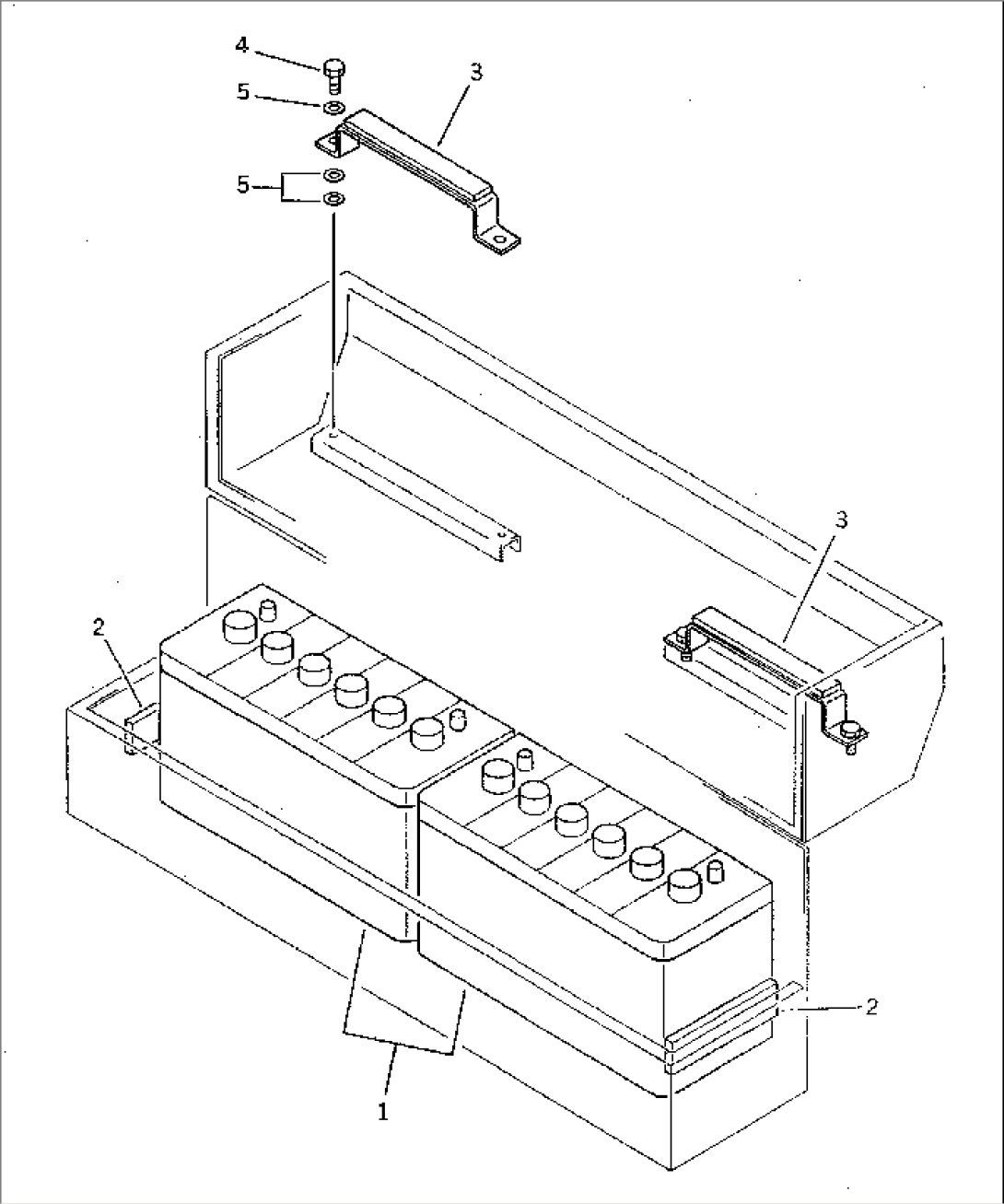

BATTERY (LARGE CAPACITY)(#10001-11999)
