| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 565-56-12440 | ROD | 8001- | |
| 2 | 569-54-81471 | HOLDER | 8001- | |
| 3 | 01580-11008 | NUT | 8001- | |
| 4 | 01643-31032 | WASHER | 8001- | |
| 5 | 281-06-14161 | ROD | 8001- | |
| 6 | 281-06-14170 | CLAMP | 8001- | |
| 7 | 01580-11008 | NUT | 8001- | |
| 8 | 01643-31032 | WASHER | 8001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7e0 s/n 8001 10731 (ecot3)
- Electrical system
- Battery (mounting parts) (large capacity)(#8001 )
Поиск по каталогу

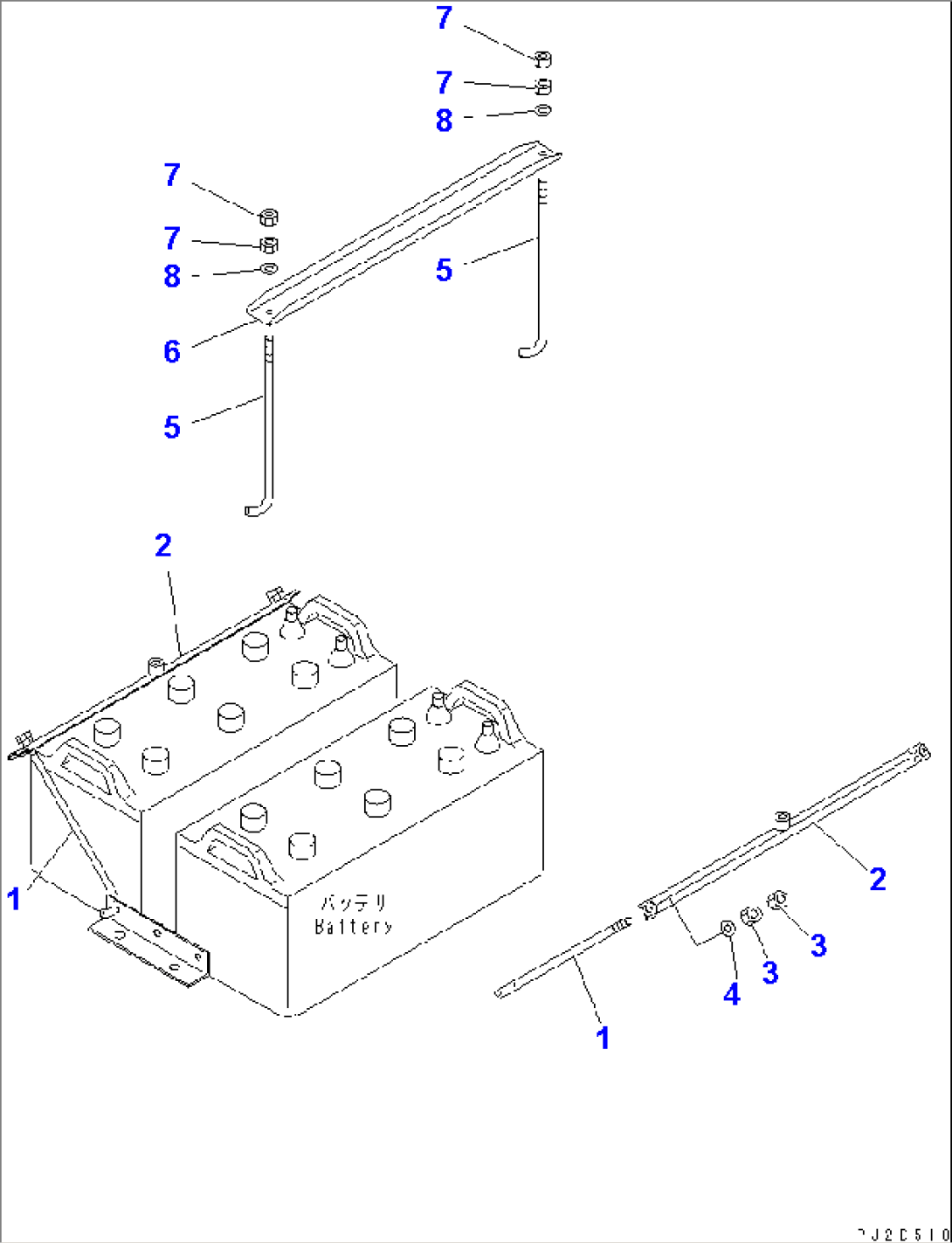

BATTERY (MOUNTING PARTS) (LARGE CAPACITY)(#8001-)
