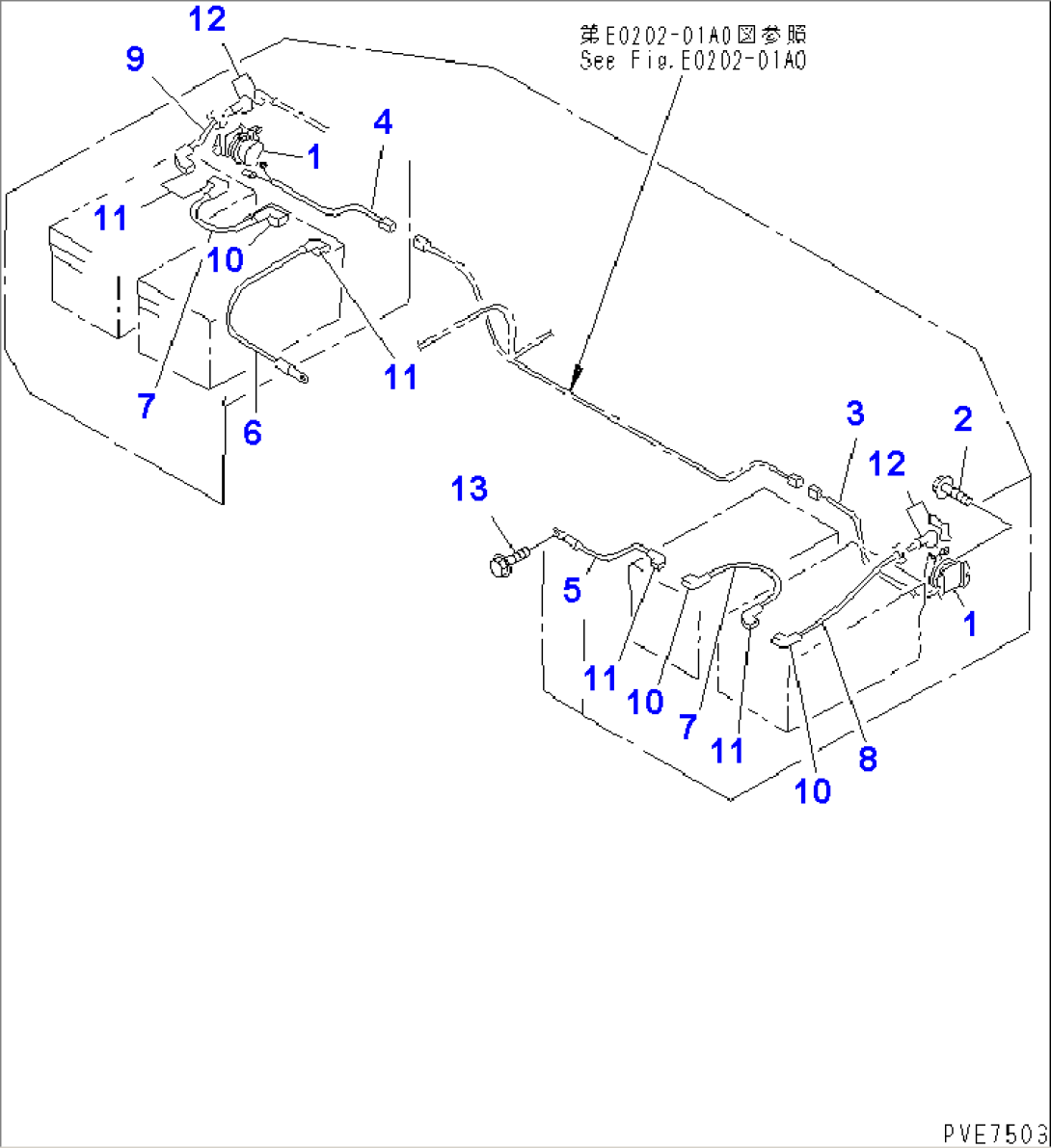

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08088-30000 | SWITCH,BATTERY RELAY | 52001- | |
| 2 | 01435-00830 | BOLT | 52001- | |
| 3 | 427-06-22221 | WIRING HARNESS | 52001- | |
| 3 | 421-09-11160 | HOUSING | 52001- | |
| 3 | 421-09-11260 | TERMINAL | 52001- | |
| 3 | 08031-20204 | TERMINAL | 52001- | |
| 3 | 08034-00414 | BAND | 52001- | |
| 3 | 08055-00282 | CONNECTOR | 52001- | |
| 4 | 427-06-22230 | WIRING HARNESS | 52001- | |
| 4 | 421-09-11160 | HOUSING | 52001- | |
| 4 | 421-09-11260 | TERMINAL | 52001- | |
| 4 | 08031-20204 | TERMINAL | 52001- | |
| 4 | 08031-20208 | TERMINAL | 52001- | |
| 4 | 08034-00414 | BAND | 52001- | |
| 4 | 08055-00381 | CONNECTOR | 52001- | |
| 5 | 427-06-12781 | WIRE | 52001- | |
| 6 | 427-06-13910 | WIRE | 52001- | |
| 7 | 427-06-12353 | CABLE | 52007- | |
| 7 | 427-06-12352 | WIRE | 52001-52006 | |
| 8 | 08028-DE065 | CABLE, BATTERY | 52007- | |
| 8 | 427-06-13921 | WIRE | 52001-52006 | |
| 9 | 427-06-12393 | WIRE | 52007- | |
| 9 | 427-06-12392 | WIRE | 52001-52006 | |
| 10 | 424-09-12530 | BOOT | 52001- | |
| 11 | 424-09-12540 | BOOT | 52001- | |
| 12 | 08038-00035 | CAP | 52001- | |
| 13 | 01435-01016 | BOLT | 52001- |
