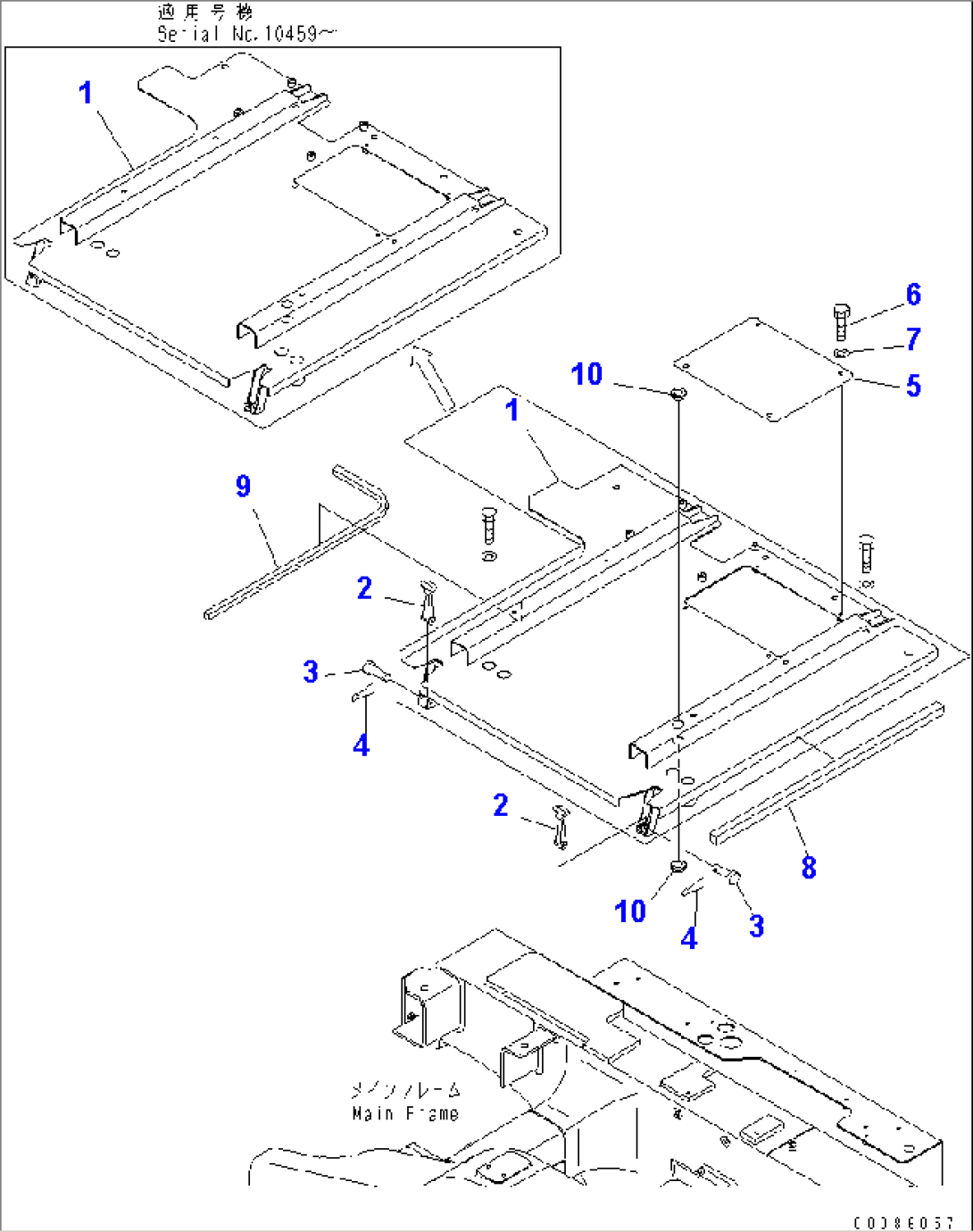

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-88223 | HOOD | 10459- | |
| 1 | \0\569-54-88222 | HOOD | 10271-10458 | |
| 2 | 09450-00000 | CATCH | 10271- | |
| 3 | 09450-00002 | PIN | 10271- | |
| 4 | 04050-11610 | PIN | 10271- | |
| 5 | 569-54-81491 | PLATE | 10271- | |
| 6 | 01010-81016 | BOLT | 10271- | |
| 7 | 01643-31032 | WASHER | 10271- | |
| 8 | 569-54-81260 | SEAL | 10271- | |
| 9 | 569-54-88291 | SEAL | 10271- | |
| 10 | 08037-02512 | GROMMET | 10271- |
