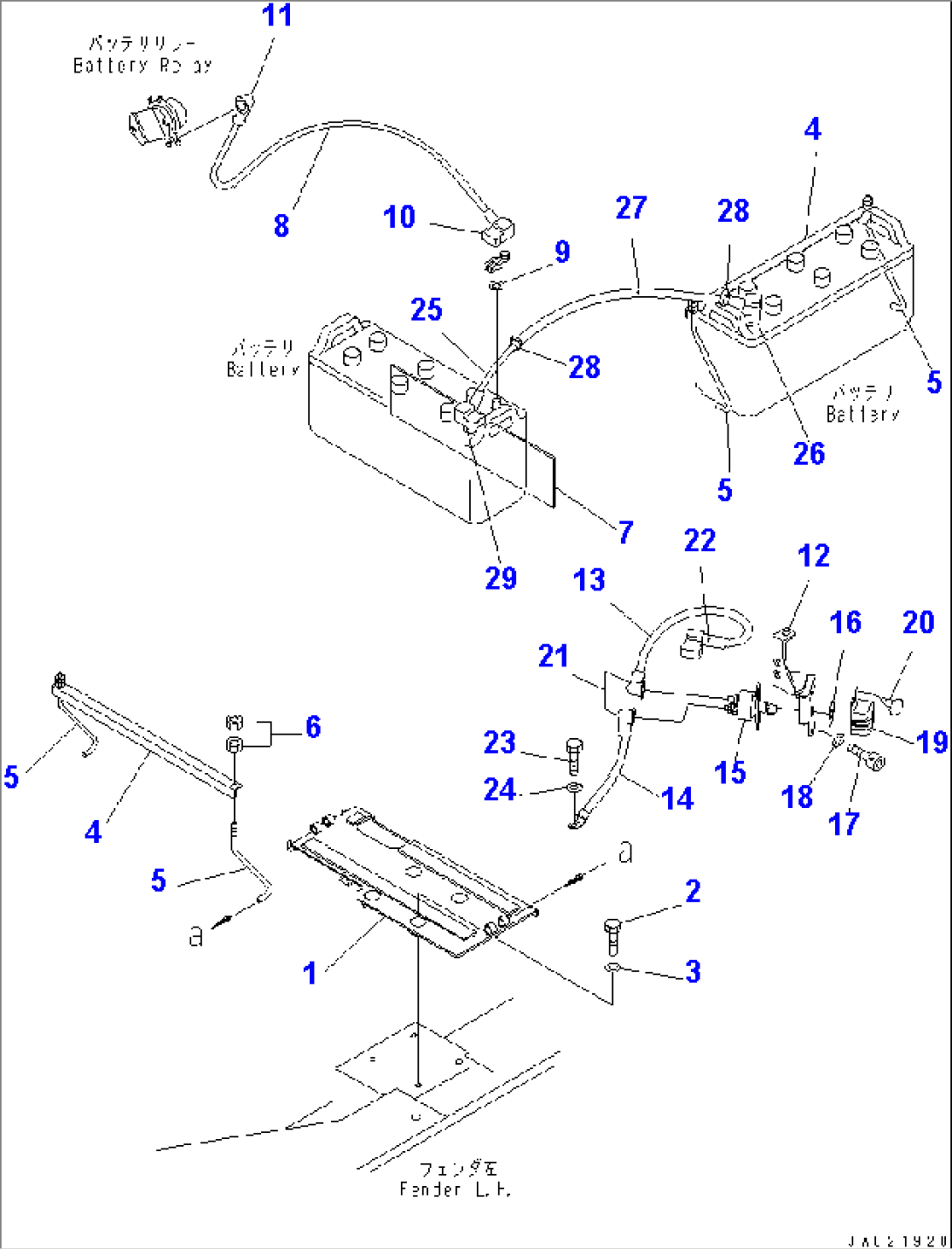

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-13173 | PLATE | 3034- | |
| 2 | 01010-81225 | BOLT | 3034- | |
| 3 | 01643-31232 | WASHER | 3034- | |
| 4 | 14X-06-12240 | HOLDER | 3034- | |
| 5 | 120-06-31151 | BOLT | 3034- | |
| 6 | 01580-11008 | NUT | 3034- | |
| 7 | 120-06-31171 | PLATE | 3034- | |
| 8 | 08028-64040 | CABLE, BATTERY | 3034- | |
| 9 | 01643-31032 | WASHER | 3034- | |
| 10 | 14X-06-12280 | COVER | 3034- | |
| 11 | 08038-00035 | CAP | 3034- | |
| 12 | 14X-06-12510 | BRACKET | 3034- | |
| 13 | 14X-06-12520 | CABLE | 3034- | |
| 14 | 14X-06-12530 | CABLE | 3034- | |
| 15 | 08068-00001 | SWITCH,BATTERY | 3034- | |
| 16 | 09697-00001 | PLATE | 3034- | |
| 17 | 01252-A0825 | BOLT | 3034- | |
| 18 | 01643-30823 | WASHER | 3034- | |
| 19 | 2A5-06-11960 | CAP | 3034- | |
| 20 | 20T-54-74510 | CAP | 3034- | |
| 21 | 08038-00035 | CAP | 3034- | |
| 22 | 14X-06-12270 | COVER | 3034- | |
| 23 | 01010-81020 | BOLT | 3034- | |
| 24 | 01643-31032 | WASHER | 3034- | |
| 25 | 08028-64070 | CABLE, BATTERY | 3034- | |
| 26 | 14X-06-12270 | COVER | 3034- | |
| 27 | 08017-31904 | CONDUIT | 3034- | |
| 28 | 08034-00414 | BAND | 3034- | |
| 29 | 14X-06-12260 | COVER | 3034- |
