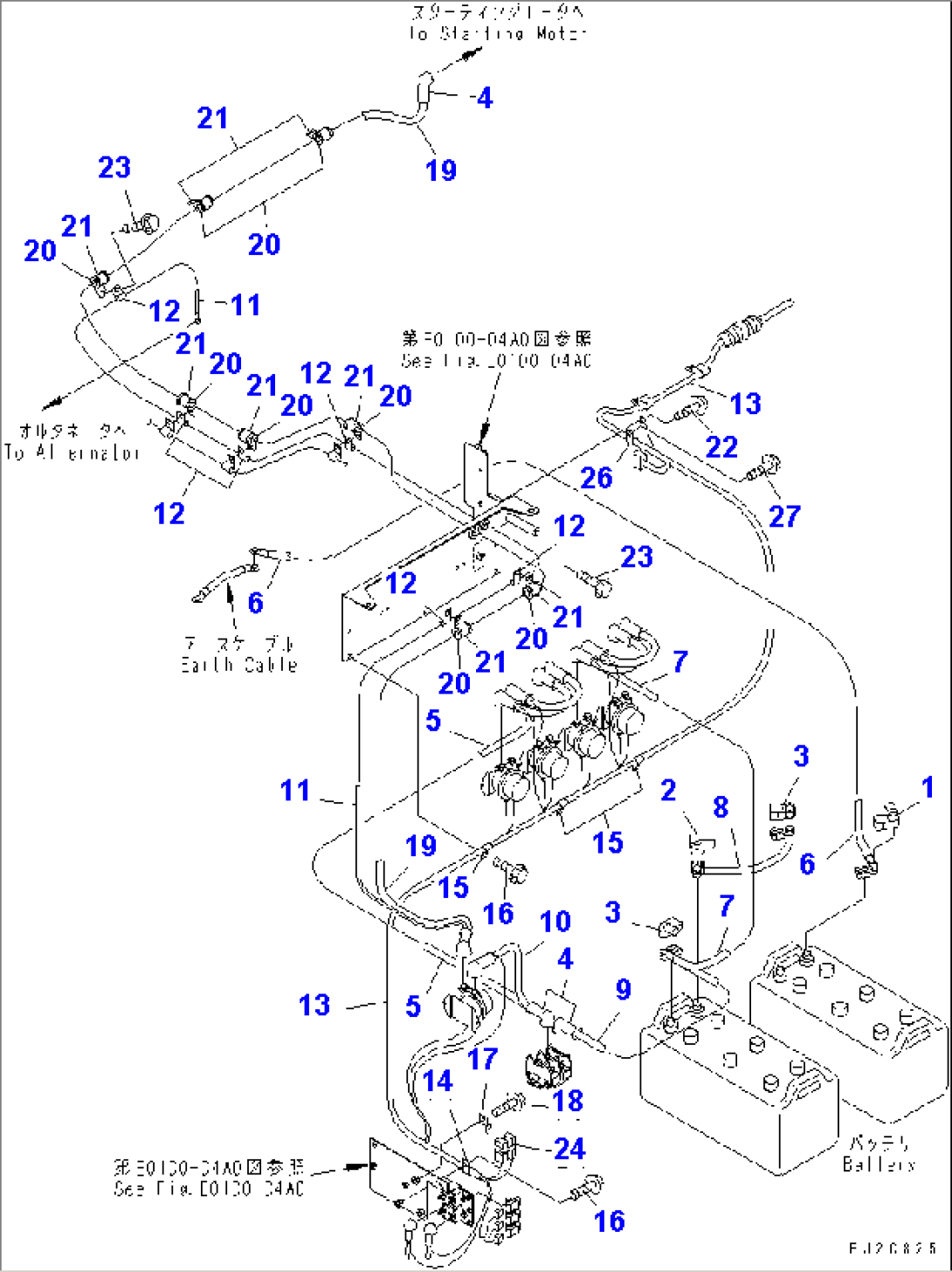

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-09-12540 | BOOT | 1001-@ | |
| 2 | 56B-06-11220 | CAP | 1001-1121 | |
| 3 | 56B-06-11210 | CAP | 1001-1121 | |
| 4 | 08038-00035 | CAP | 1001-@ | |
| 5 | 08028-65040 | CABLE, BATTERY | 1001-1121 | |
| 6 | 08028-45060 | CABLE, GROUND | 1001-@ | |
| 7 | 08028-65060 | CABLE, BATTERY | 1001-1121 | |
| 8 | 08028-65045 | CABLE, BATTERY | 1001-1121 | |
| 9 | 08028-65055 | CABLE, BATTERY | 1001-1121 | |
| 10 | 56B-06-14550 | CABLE | 1001-1121 | |
| 11 | 56B-06-14522 | CABLE | 1041-@ | |
| 11 | 56B-06-14521 | CABLE | 1001-1040 | |
| 12 | 08036-00814 | CLIP | 1001-@ | |
| 13 | 56B-06-12421 | WIRING HARNESS | 1001-1121 | |
| 14 | 08036-21814 | CLIP | 1001-1121 | |
| 15 | 08036-22514 | CLIP | 1001-1121 | |
| 16 | 01435-01016 | BOLT | 1001-1121 | |
| 17 | 08193-31012 | CLIP | 1001-1121 | |
| 18 | 01435-01016 | BOLT | 1001-@ | |
| 19 | 56B-06-14560 | CABLE,BATTERY | 1001-@ | |
| 20 | 566-06-41290 | INSULATOR | 1001-@ | |
| 21 | 08036-22514 | CLIP | 1001-@ | |
| 22 | 01435-01016 | BOLT | 1001-1121 | |
| 23 | 01435-01020 | BOLT | 1001-@ | |
| 24 | 08034-20414 | BAND | 1001-1121 | |
| 26 | 04434-51610 | CLIP | 1001-1121 | |
| 27 | 01435-01016 | BOLT | 1001-1121 |
