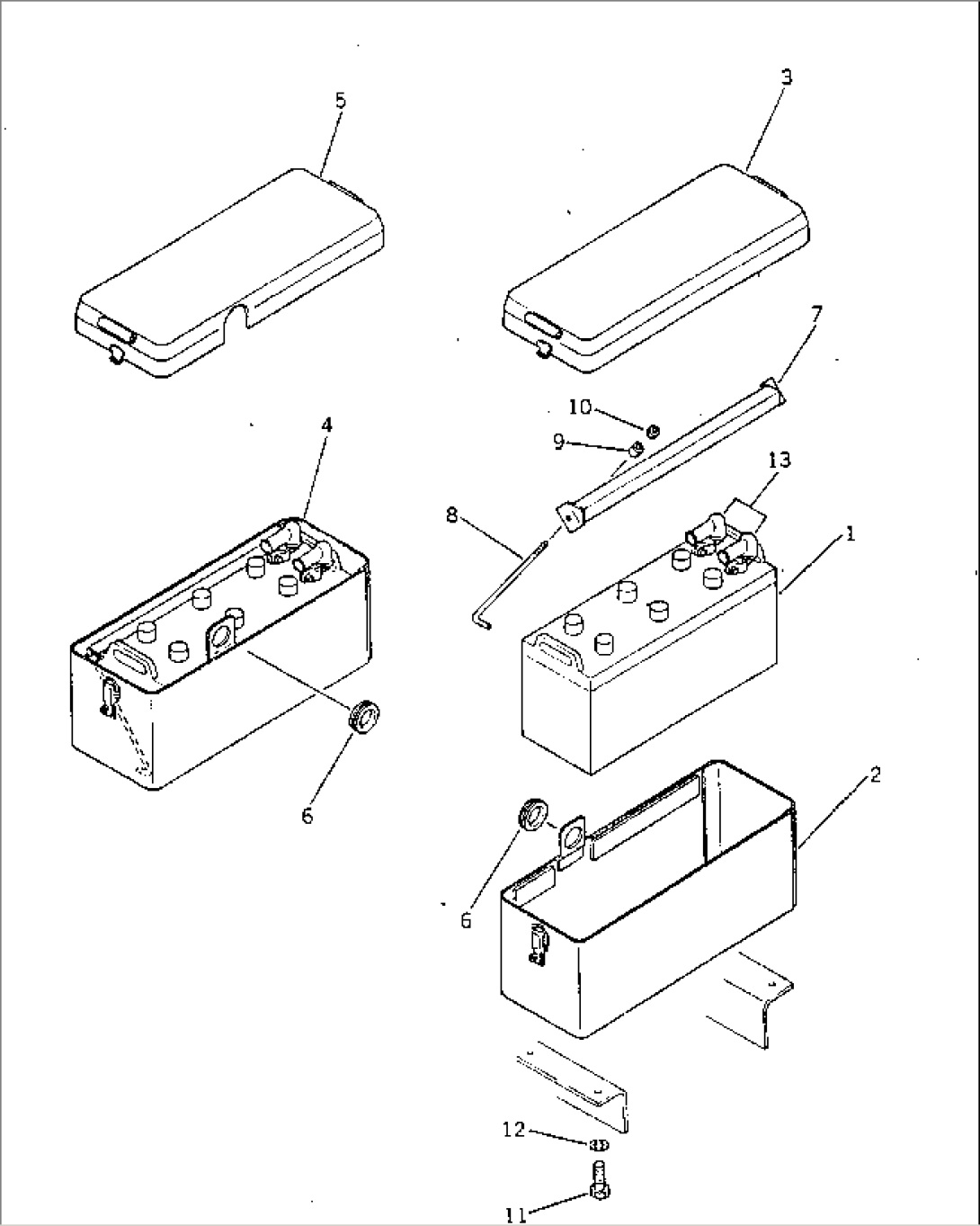

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-31212 | BATTERY (115E41R) | 50002-@ | |
| 238-06-17160 | BATTERY,NX250 | 50002-@ | ||
| 2 | 233-06-22110 | BOX,L.H. | 50002-50598 | |
| 3 | 233-06-22120 | COVER,L.H. | 50002-50598 | |
| 4 | 233-06-22210 | BOX,R.H. | 50002-50598 | |
| 5 | 233-06-22220 | COVER,R.H. | 50002-50598 | |
| 6 | 08037-03614 | GROMMET | 50002-50598 | |
| 7 | 233-06-22130 | HOLDER | 50002-50598 | |
| 8 | 233-06-22140 | BOLT | 50002-50598 | |
| 9 | 238-06-12380 | LOCK | 50002-50598 | |
| 10 | 01580-10806 | NUT | 50002-@ | |
| 11 | 01010-51030 | BOLT | 50002-@ | |
| 12 | 01602-21030 | WASHER | 50002-@ | |
| 13 | 232-06-11970 | CAP | 50002-@ |
