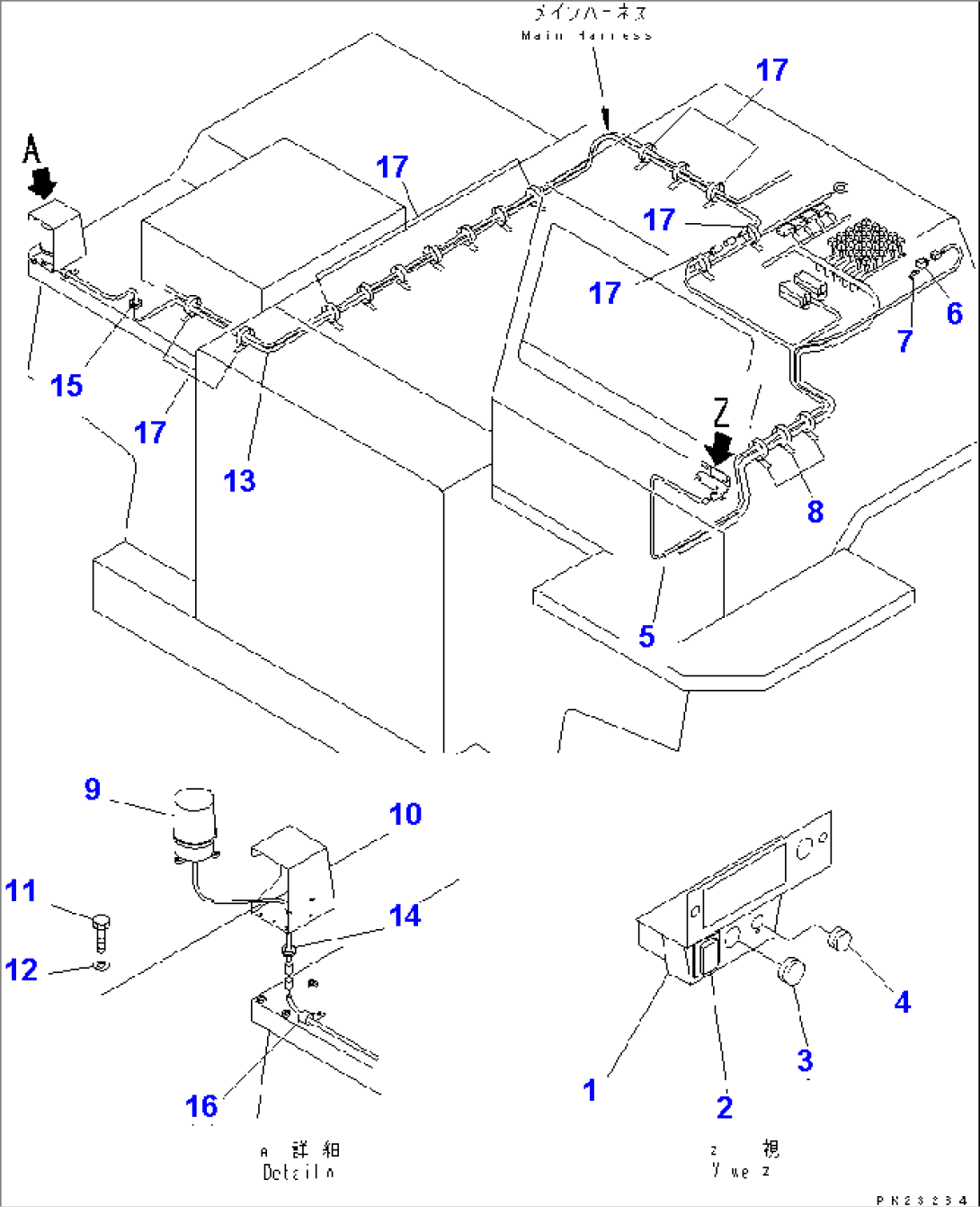

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-85-61330 | BRACKET | 1001- | |
| 2 | 569-06-61191 | SWITCH | 1001- | |
| 2 | 569-06-61350 | BULB,WHITE | 1001- | |
| 2 | 569-06-61330 | BULB,GREEN | 1001- | |
| 3 | 09415-01008 | CAP | 1001- | |
| 4 | 09415-00706 | CAP | 1001- | |
| 5 | 561-85-61310 | WIRING HARNESS | 1001- | |
| 6 | 569-06-61960 | RELAY | 1001- | |
| 7 | 287-06-16420 | BRACKET | 1001- | |
| 8 | 08034-00834 | BAND | 1001- | |
| 9 | 08154-12400 | LAMP ASS'Y | 1001- | |
| 9 | 08103-02460 | BULB, 35W | 1001- | |
| 10 | 561-85-61340 | BRACKET | 1001- | |
| 11 | 01010-51020 | BOLT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 569-85-61340 | WIRING HARNESS | 1001- | |
| 14 | 08037-01008 | GROMMET | 1001- | |
| 15 | 08037-03614 | GROMMET | 1001- | |
| 16 | 08036-01214 | CLIP | 1001- | |
| 17 | 08034-00834 | BAND | 1001- |
