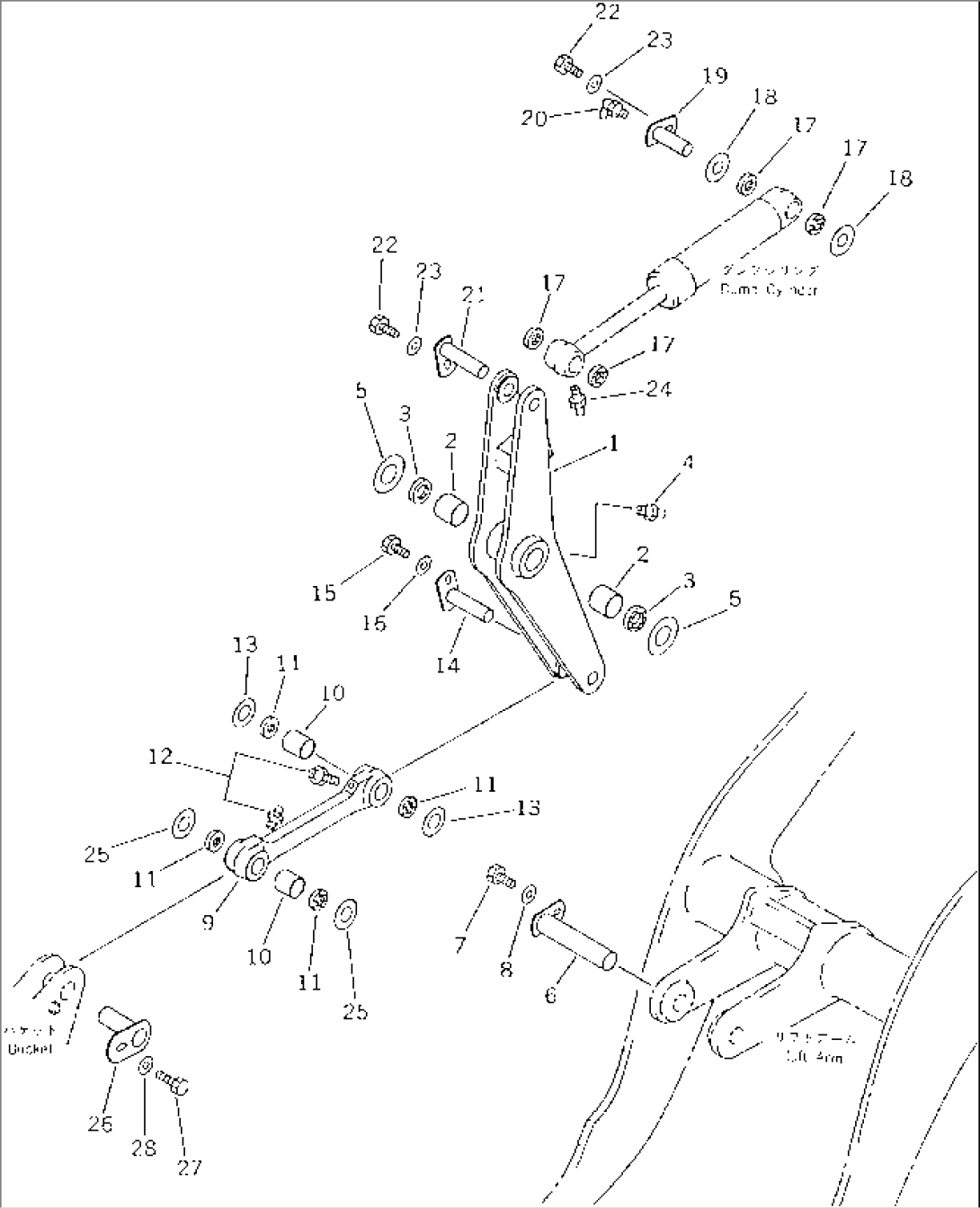

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-70-00120 | BELLCRANK ASS'Y | 10001- | ||
| 1 | \6\ | BELLCRANK | 10001- | |
| 2 | 418-70-11860 | BUSHING | 10001- | |
| 3 | 418-09-11110 | SEAL,DUST | 10001- | |
| 4 | 07020-00000 | FITTING,GREASE | 10001- | |
| 5 | 417-70-11680 | SHIM, 0.5MM | 10001- | |
| 5 | 417-70-11690 | SHIM, 1.5MM | 10001- | |
| 6 | 418-70-11960 | PIN | 10001- | |
| 7 | 01010-51625 | BOLT | 10001- | |
| 8 | 421-70-11280 | WASHER | 10001- | |
| 417-70-00130 | LINK ASS'Y | 10001- | ||
| 9 | \6\ | LINK | 10001- | |
| 10 | 417-70-11860 | BUSHING | 10001- | |
| 11 | 417-09-11110 | SEAL,DUST | 10001- | |
| 12 | 07020-00000 | FITTING,GREASE | 10001- | |
| 13 | 417-70-11670 | SHIM, 0.5MM | 10001- | |
| 13 | 417-70-11350 | SHIM, 1.5MM | 10001- | |
| 14 | 418-70-11921 | PIN | 10001- | |
| 15 | 01010-51625 | BOLT | 10001- | |
| 16 | 421-70-11280 | WASHER | 10001- | |
| 17 | 418-09-11110 | SEAL,DUST | 10001- | |
| 18 | 418-70-11430 | SHIM, 1.5MM | 10001- | |
| 18 | 418-70-11440 | SHIM, 3.0MM | 10001- | |
| 19 | 418-70-11950 | PIN | 10001- | |
| 20 | 07020-00900 | FITTING,GREASE | 10001- | |
| 21 | 418-70-11941 | PIN | 10001- | |
| 22 | 01010-51625 | BOLT | 10001- | |
| 23 | 421-70-11280 | WASHER | 10001- | |
| 24 | 07020-00000 | FITTING,GREASE | 10001- | |
| 25 | 417-70-11670 | SHIM, 0.5MM | 10001- | |
| 25 | 418-70-11350 | SHIM, 1.5MM | 10001- | |
| 25 | 418-70-11360 | SHIM, 3.0MM | 10001- | |
| 26 | 418-70-11921 | PIN | 10001- | |
| 27 | 01010-51625 | BOLT | 10001- | |
| 28 | 421-70-11280 | WASHER | 10001- |
