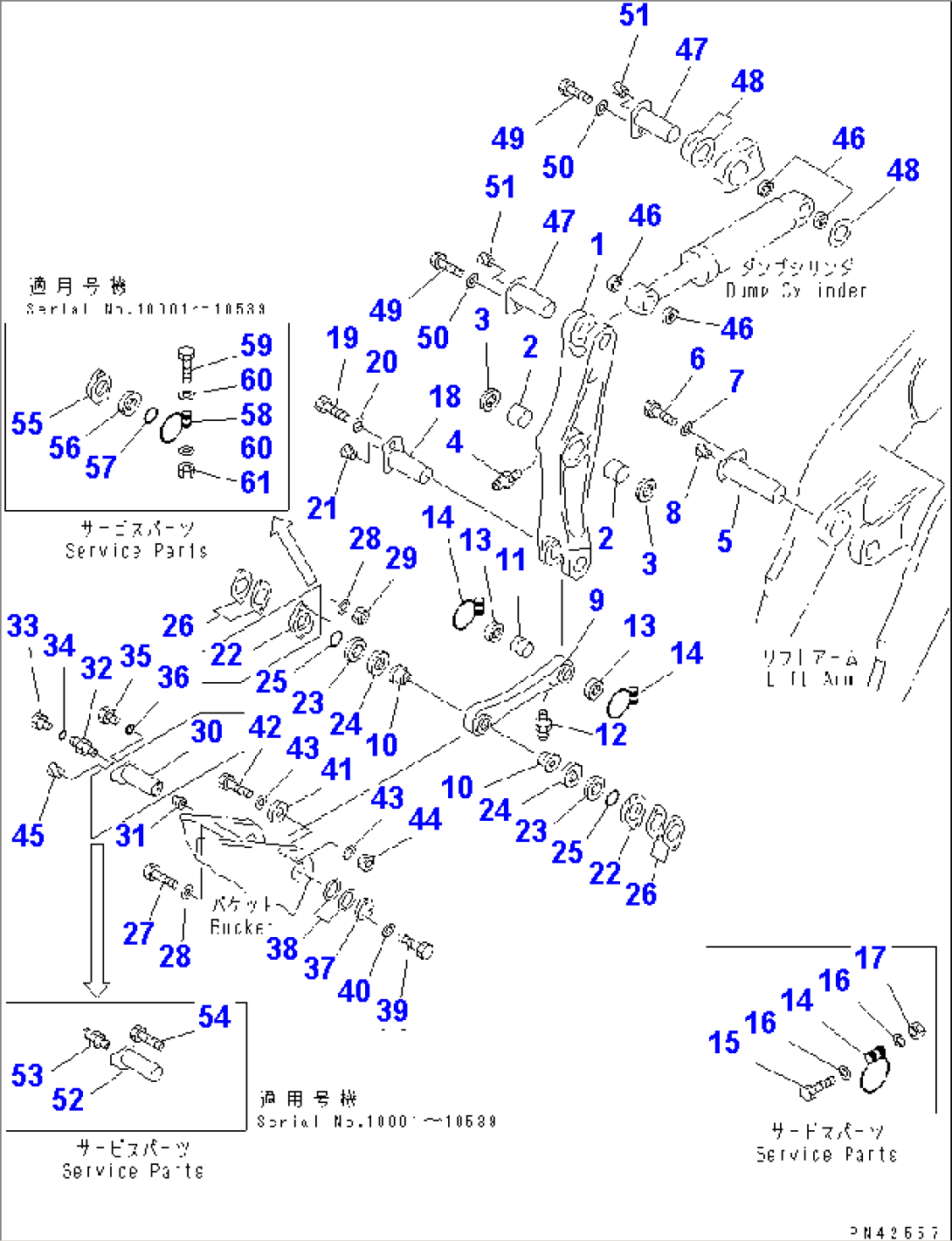

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-70-00023 | BELLCRANK ASS'Y | 10010-@ | ||
| \0\427-70-00022 | BELLCRANK ASS'Y | 10001-10009 | ||
| 1 | \6\ | BELLCRANK | 10001-@ | |
| 2 | 427-70-11861 | BUSHING | 10010-@ | |
| \0\427-70-11860 | BUSHING | 10001-10009 | ||
| 3 | 427-09-11110 | SEAL,DUST | 10001-@ | |
| 4 | 07020-00000 | FITTING,GREASE | 10001-@ | |
| 5 | 427-70-11962 | PIN | 10060-@ | |
| \0\427-70-11961 | PIN | 10001-10059 | ||
| 6 | 01010-82450 | BOLT | 10001-@ | |
| 7 | 427-70-11480 | WASHER | 10001-@ | |
| 8 | 07049-01620 | PLUG | 10001-@ | |
| 427-70-00032 | LINK ASS'Y | 10051-10539 | ||
| \0\427-70-00030 | LINK ASS'Y | 10001-10050 | ||
| 427-850-0032 | LINK ASS'Y,(FOR HIGH LIFT) | 10051-10539 | ||
| \0\427-850-0031 | LINK ASS'Y,(FOR HIGH LIFT) | 10001-10050 | ||
| 9 | \6\ | LINK | 10051-10539 | |
| \6\ | LINK | 10001-10050 | ||
| \6\ | LINK,(FOR HIGH LIFT) | 10051-10539 | ||
| \6\ | LINK,(FOR HIGH LIFT) | 10001-10050 | ||
| 10 | 427-70-11351 | BUSHING | 10050-10539 | |
| \0\427-70-11350 | BUSHING | 10001-10049 | ||
| 11 | 427-70-11831 | BUSHING | 10010-10539 | |
| \0\427-70-11830 | BUSHING | 10001-10009 | ||
| 12 | 07020-00000 | FITTING,GREASE | 10001-10539 | |
| 13 | 426-09-11110 | SEAL,DUST | 10001-@ | |
| SERVICE PARTS | ||||
| 14 | 427-70-11250 | O-RING | 10001-10539 | |
| 15 | 426-09-11150 | BOLT | 10001-10539 | |
| 16 | 01641-20608 | WASHER | 10001-10539 | |
| 17 | 01596-00606 | NUT | 10001-10539 | |
| 18 | 427-70-11931 | PIN | 10001-@ | |
| 19 | 01010-82035 | BOLT | 10001-@ | |
| 20 | 427-70-11290 | WASHER | 10001-@ | |
| 21 | 07049-01620 | PLUG | 10001-@ | |
| 22 | 427-70-11361 | FLANGE | 10012-10539 | |
| \0\427-70-11360 | FLANGE | 10001-10011 | ||
| 23 | 427-09-11160 | SEAL,OIL | 10001-10539 | |
| 24 | 427-09-11140 | SEAL,DUST | 10001-@ | |
| 25 | 07000-05160 | O-RING | 10012-@ | |
| 07000-15160 | O-RING | 10001-10011 | ||
| 26 | 427-70-11320 | SHIM¤ 0.2MM | 10001-10539 | |
| 427-70-11330 | SHIM¤ 0.5MM | 10001-@ | ||
| 427-70-11340 | SHIM¤ 2.3MM | 10001-@ | ||
| 27 | 01011-52025 | BOLT | 10001-@ | |
| 28 | 01643-32060 | WASHER | 10001-@ | |
| 29 | 427-01-11150 | NUT | 10001-@ | |
| 30 | 427-819-1320 | PIN,OIL (L=529MM) | 10501-10539 | |
| 427-70-11221 | PIN,OIL (L=429MM) | 10001-10499 | ||
| 31 | 07043-01019 | PLUG | 10001-10539 | |
| 32 | 07020-00000 | FITTING,GREASE | 10001-@ | |
| 33 | 600-211-7111 | PLUG | 10001-10539 | |
| 34 | 07002-02034 | O-RING | 10001-10539 | |
| 35 | 07040-11007 | PLUG | 10001-10539 | |
| 36 | 07002-01023 | O-RING | 10001-10539 | |
| 37 | 427-70-11260 | RETAINER | 10001-@ | |
| 38 | 427-70-11270 | SHIM¤ 0.2MM | 10001-@ | |
| 427-70-11280 | SHIM¤ 0.5MM | 10001-@ | ||
| 39 | 01010-82070 | BOLT | 10001-@ | |
| 40 | 01643-32060 | WASHER | 10001-@ | |
| 41 | 425-70-11250 | CAM | 10001-@ | |
| 42 | 01011-82455 | BOLT | 10501-@ | |
| 01011-52405 | BOLT | 10001-10499 | ||
| 43 | 01643-32460 | WASHER | 10001-@ | |
| 44 | 01580-12419 | NUT | 10001-@ | |
| 45 | 07049-01620 | PLUG | 10001-@ | |
| 46 | 427-09-11120 | SEAL,DUST | 10001-@ | |
| 47 | 427-70-11941 | PIN | 10001-@ | |
| 48 | 427-70-11420 | SHIM¤ 1.5MM | 10001-@ | |
| 427-70-11430 | SHIM¤ 3.0MM | 10001-@ | ||
| 49 | 01010-82035 | BOLT | 10001-@ | |
| 50 | 427-70-11290 | WASHER | 10001-@ | |
| 51 | 07049-01620 | PLUG | 10001-@ | |
| SERVICE PARTS | ||||
| 52 | 427-70-11610 | PIN,GREASE (L=529MM) | 10501-10539 | |
| 427-853-1120 | PIN,GREASE (L=429MM) | 10001-10499 | ||
| 53 | 07020-00000 | FITTING,GREASE | 10001-10539 | |
| 54 | 01011-52455 | BOLT,(FOR L=529MM PIN) | 10501-10539 | |
| 55 | 427-70-11362 | FLANGE | 10001-10539 | |
| 56 | 427-09-11140 | SEAL,DUST | 10001-10539 | |
| 57 | 07000-05160 | O-RING | 10001-10539 | |
| 58 | 427-70-11250 | O-RING | 10001-10539 | |
| 59 | 426-09-11150 | BOLT | 10001-10539 | |
| 60 | 01641-20608 | WASHER | 10001-10539 | |
| 61 | 426-09-11130 | NUT | 10001-10539 |
