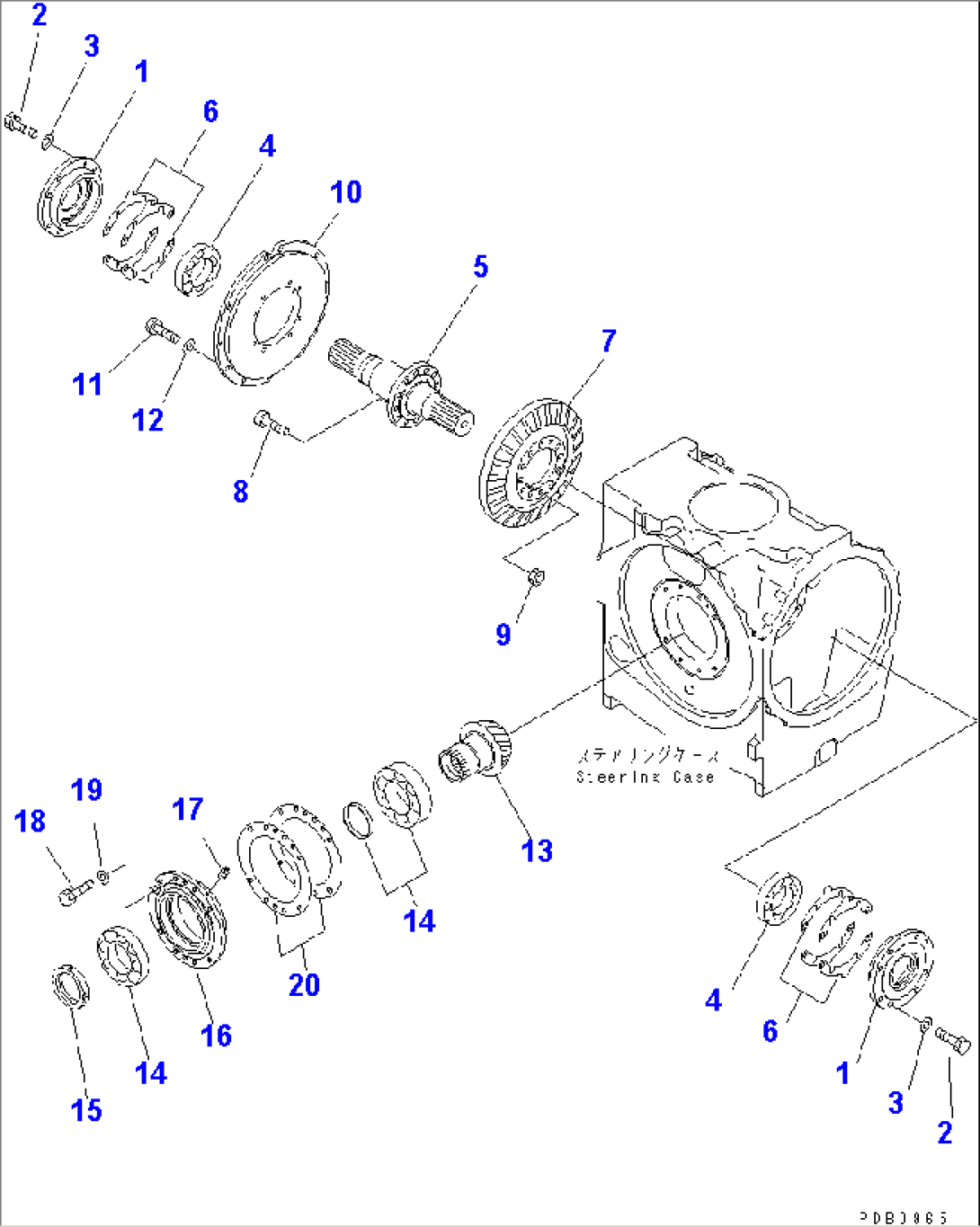

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 1 | 17A-22-15130 | CAGE | 65001- | |
| 2 | 01010-81245 | BOLT | 65001- | |
| 3 | 01643-31232 | WASHER | 65001- | |
| 4 | 06002-32217 | BEARING | 65001- | |
| 5 | 17A-22-15111 | SHAFT | (152838)- | |
| 5 | \1\17A-22-15110 | SHAFT | 65001-(152837) | |
| 6 | 17A-22-00010 | SHIM ASS'Y | 65001- | |
| 6 | \6\ | SHIM, 0.1MM | 65001- | |
| 6 | \6\ | SHIM, 0.2MM | 65001- | |
| 6 | \6\ | SHIM, 0.5MM | 65001- | |
| 6 | \6\ | SHIM, 0.05MM | 65001- | |
| 7 | 17A-22-15120 | GEAR | 65001- | |
| 8 | 01084-01655 | BOLT | 65001- | |
| 9 | 01582-01613 | NUT | 65001- | |
| 10 | 17A-22-16120 | CAGE | 65001- | |
| 11 | 01010-81235 | BOLT | 65001- | |
| 12 | 01643-31232 | WASHER | 65001- | |
| 13 | 17A-22-15220 | PINION | 65001- | |
| 14 | 17A-09-11171 | BEARING | 65001- | |
| 15 | 17A-22-15211 | NUT | 65001- | |
| 16 | 17A-22-15150 | CAGE | 65001- | |
| 17 | 01310-10808 | SCREW | 65001- | |
| 18 | 01010-81240 | BOLT | 65001- | |
| 19 | 01643-31232 | WASHER | 65001- | |
| 20 | 17A-22-00020 | SHIM ASS'Y | 65001- | |
| 20 | \6\ | SHIM, 0.1MM | 65001- | |
| 20 | \6\ | SHIM, 0.2MM | 65001- | |
| 20 | \6\ | SHIM, 0.5MM | 65001- |
